Ochsner OTE 3 User Manual

BA_OTE 3+4_Endkunde_EN_V03_20170726.docx Page 28 of 52

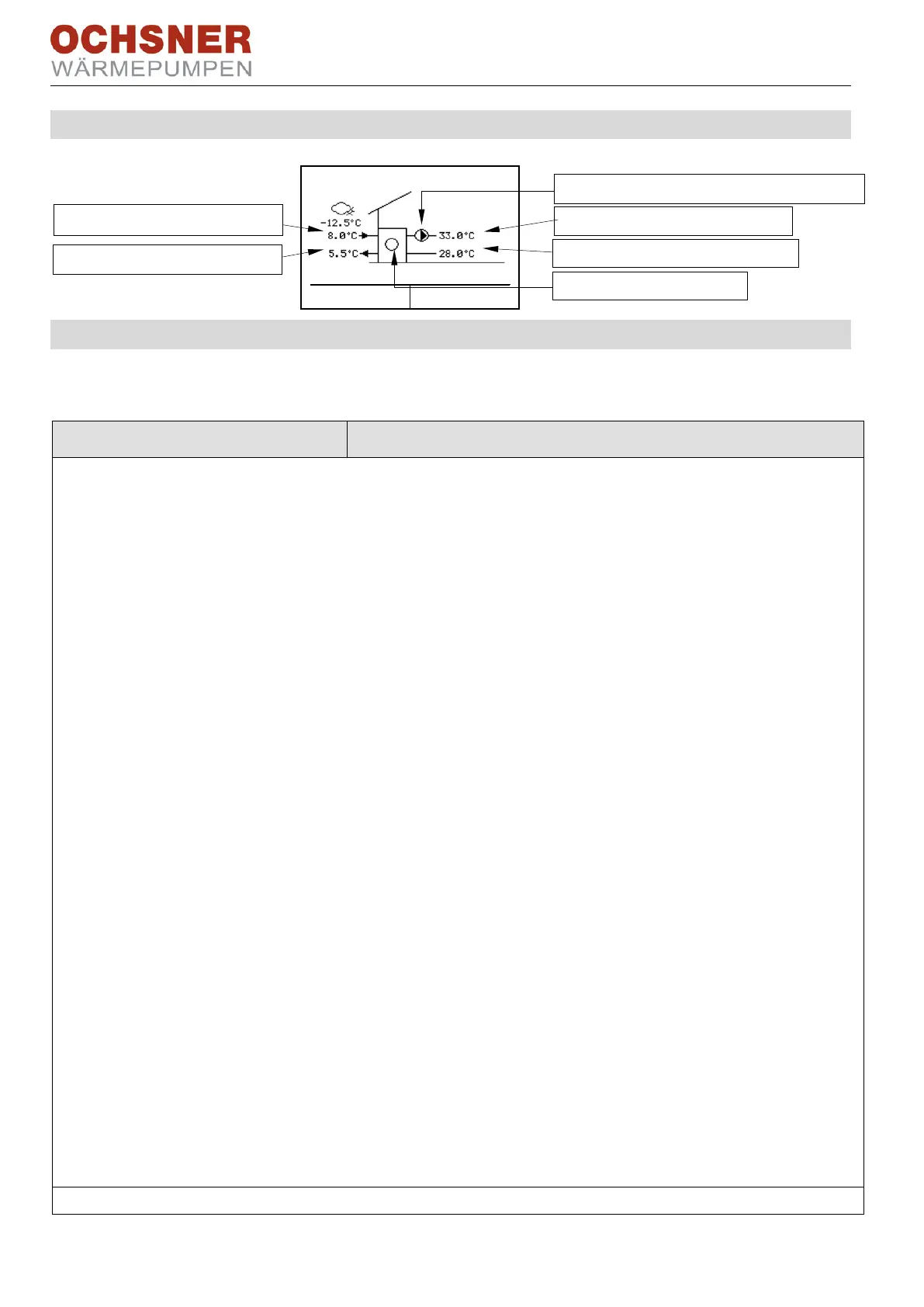

8.1 Temperature image
8.2 Operational data
The operational data can be seen in the heat pump menu:
Operational data Description
02-053 Status heat generator
0 = Switched off
Heat pump switched off
1 = Heating mode
Heat pump in heating or hot water operation
2 = Lead time heating mode
3 = Externally blocked
Utility switch off (EVU contact)
4 = Cooling mode
Heat pump in cooling operation
5 = Lead time cooling mode
6 = Lead time de-icing mode
7 = De-icing mode
9 = Drain off
The heat pump is in draining mode after de-icing
10 = De-icing blocking time
De-icing criteria fulfilled, de-icing blocking period not yet over.
11 = De-icing pre heat
12 = De-icing 1
13 = De-icing 2
14 = De-icing 3
15 = Alarm
see Section 16.1 ALARM
16 = Malfunction
see Section 16.3 ERROR
17 = Blocked
see Section 16.6 BLOCKING
21 = TWVmax switch-off
Flow temperature too high or too low
22 = TWVset switch-off
Switching hysteresis in heat pump manual operation exceeded
23 = TQEmax switch-off
Heat source input temperature too high
24 = TQAmin switch-off
Heat source outlet temperature to low (frost protection)
26 = Bivalent switch-off
Blocking due to bivalence temperature
28 = Minimum off time
Demand for heat, but stand-still period active
29 = Minimum run time
No more heat demand, minimum running time active
36 = Passive cooling
Only possible for heat pumps with heat source water or brine.
The carrier temperature for cooling is called on without switching
on the compressor.
37 = Heating mode requested
Heat pump waits for report heating
38 = Cooling mode requested
Heat pump waits for report cooling
00-007 TWV temperature (flow
Heat pump flow temperature (sensor TWV)
ESC
MENU
HEAT PUMP
Heat source input (TQE)
Heat source output (TQA)
Heat pump flow (TWV)
Heat pump return (TWR)
Heat generator pump (WEP) ON-OFF
Heat pump ON-OFF
