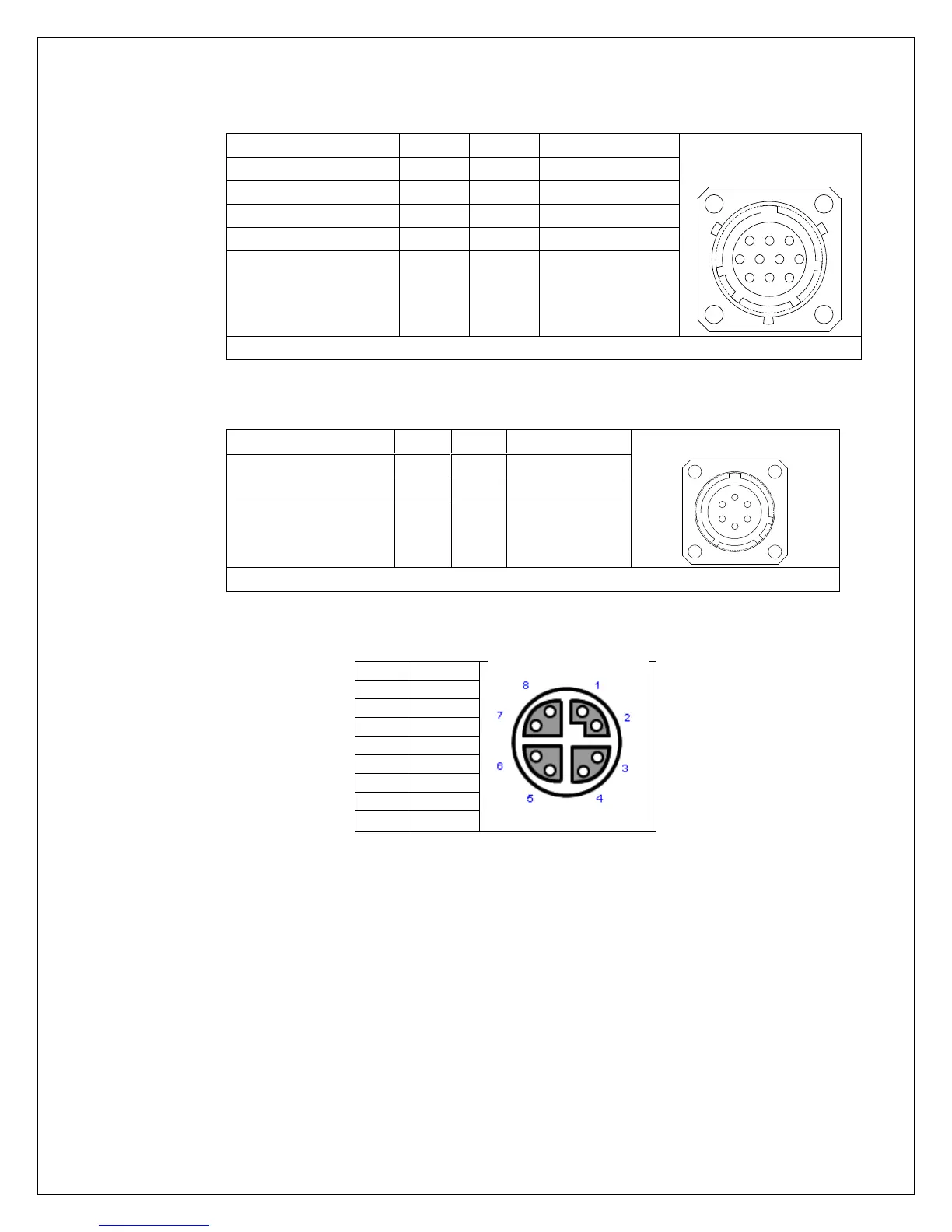

Table 7 – OPTION Pin-Out
Signal Name
Pin #
Pin #
Signal Name
PT02E1210SW
(rear view)
A
D
H
G
J
B
K
C
E
F
12
-
10S
Option
A
F
Digital IN 1
Option B G Digital IN 0
Option C H Dig common
Digital Out 0
D
J
Digital IN 3
Digital IN 4 E K
Digital IN 2
Mating Connector PT06E12-10PSR
Table 8 – DUAL CAN Pin-Out (CAN1 is an option)
Signal Name Pin # Pin # Signal Name PT02E106P
A
B
C
10
-6
S
F
E
D
CAN0 L
A D
CAN1 L
CAN0 GND
B
E
CAN1 GND
CAN0 H C F CAN1 H
Mating Connector PT06E10-6SSR
Table 9 – ETHERNET Connector Pin-Out - rear panel
Pin #
Signal
1
MDX0+
2
MDX0-
3
MDX1+
4
MDX1-
5
MDX3+
6
MDX3-
7
MDX2-
8
MDx2+
---------- ♦♦♦ ----------
