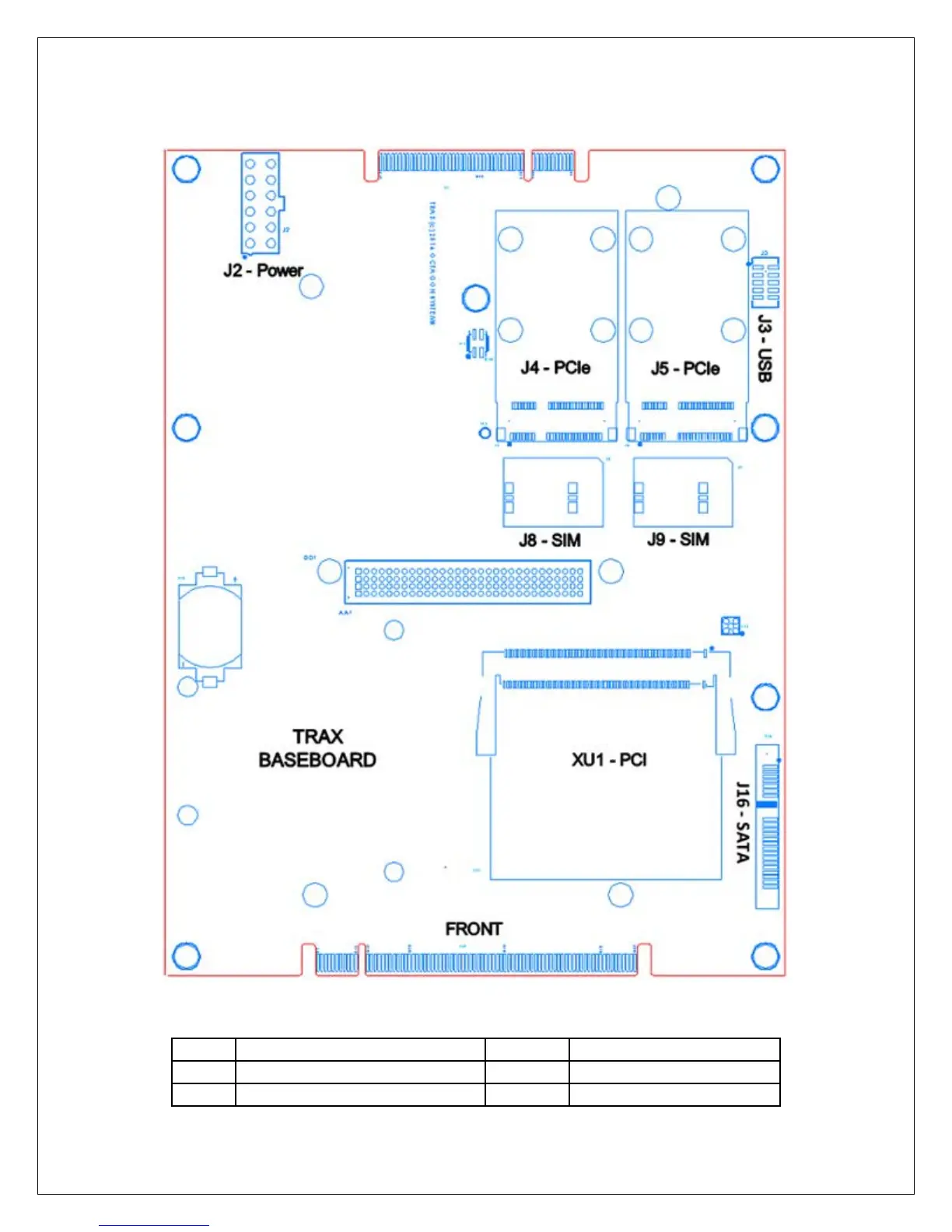

Baseboard Connectors
J11-
PCI/104
Table 1 - Internal Connectors and Sockets
J11
PCI / 104 Connector
J8
SIM card socket for J4
J16
SATA connector
J9
SIM card socket for J5
XU1
Mini PCI socket
J2
To power supply
---------------------------------
