43

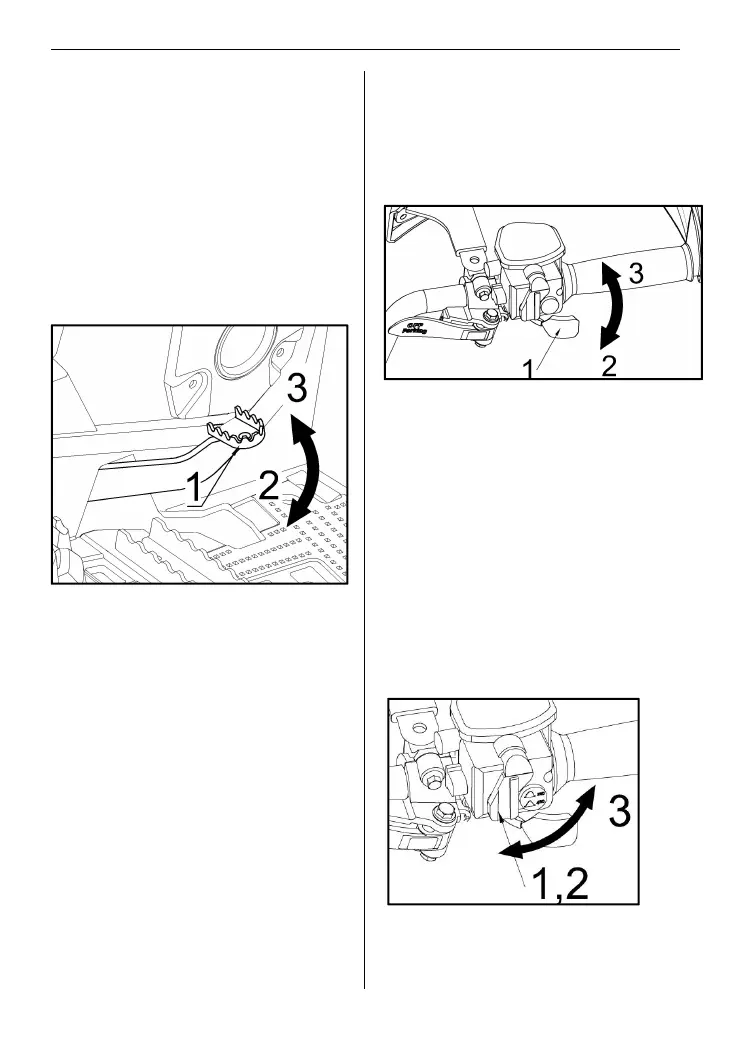

(1) Brake pedal
The brake pedal is located on the
right side of the vehicle.
When the brake pedal is depressed
and the rear brake is used, the
vehicle will gradually slow down.
After releasing, the brake pedal will
automatically return to normal state.
TYPICAL
1.Brake pedal
2.To decelerate
3.Normal status
Throttle lever
The throttle lever is located on the
right side of the handlebar.
When the throttle lever is pushed
forward, it will increase the efficiency
of the engine and increase the speed
of the vehicle.
When released, the vehicle speed is
gradually reduced, and the engine
automatically returns to the idle
state.
TYPICAL
1.Throttle lever
2.To decelerate
3.To accelerate
(2)WD/4WD Selector
The 2WD/4WD selector is on the
right side of the handlebar This
selector allows to choose between
2WD and 4WD when the vehicle is
stopped.
TYPICAL
1.Selector
