OEG CPA-E Series - Installation Guidelines; General Installation and Flow Direction; Terminal Box Positioning Options

33
. Installation
CPA-E and CPA-E S PWM series
.. Installation

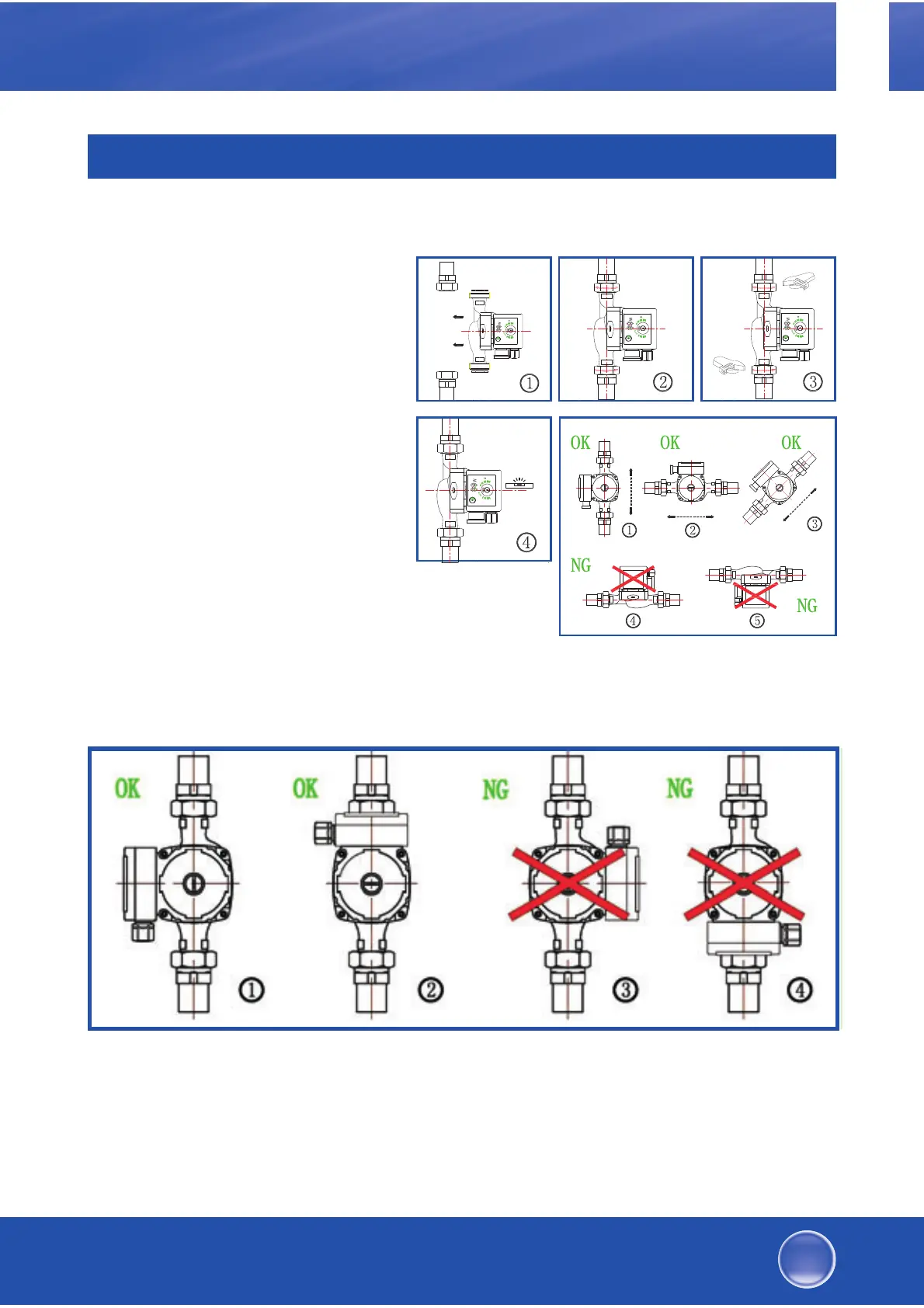

The arrow on the pump
housing indicates the
direction of flow.
Please use the screws and
seals included in the
delivery package.
The motor shaft must be
installed horizontally
(see fig.)
.. Position of the terminal box
3RVLWLRQ GHV V
GHU 3RVLWLRQ V V
KLHUIUVLQG
