EN-12 SD SERIES BENCH SCALE

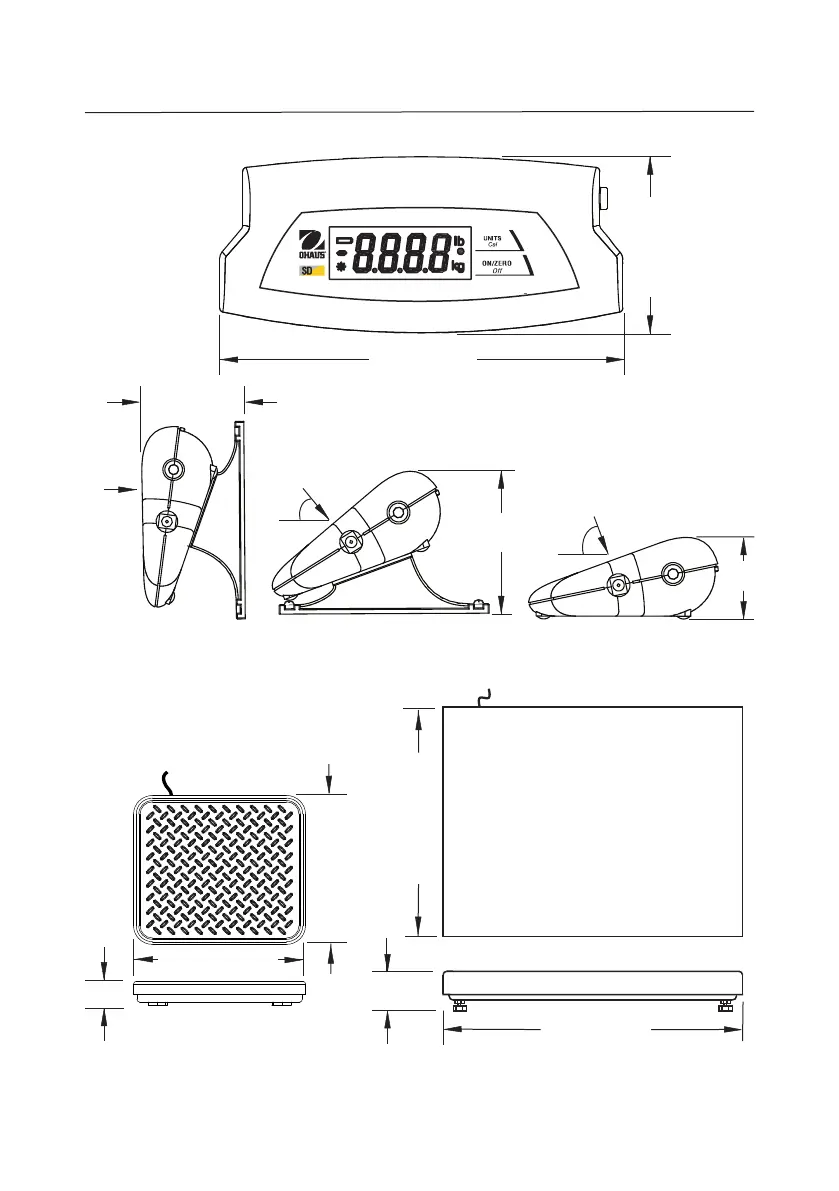

Figure 6. Scale Base Overall Dimensions.
53mm /2.09”
69mm /
2.72”
39mm /
1.54”
210mm / 8.27”
91mm / 3.58”
280mm / 11.02”
45mm / 1.77”
Figure 5. Indicator Overall Dimensions, Available Viewing Angles.
0º
50º
70º
Standard Base Large Base
316mm / 12.44”
400 mm / 15.7”
520mm / 20.5”
75mm / 3”
