58 Microline 390/391 Turbo
|

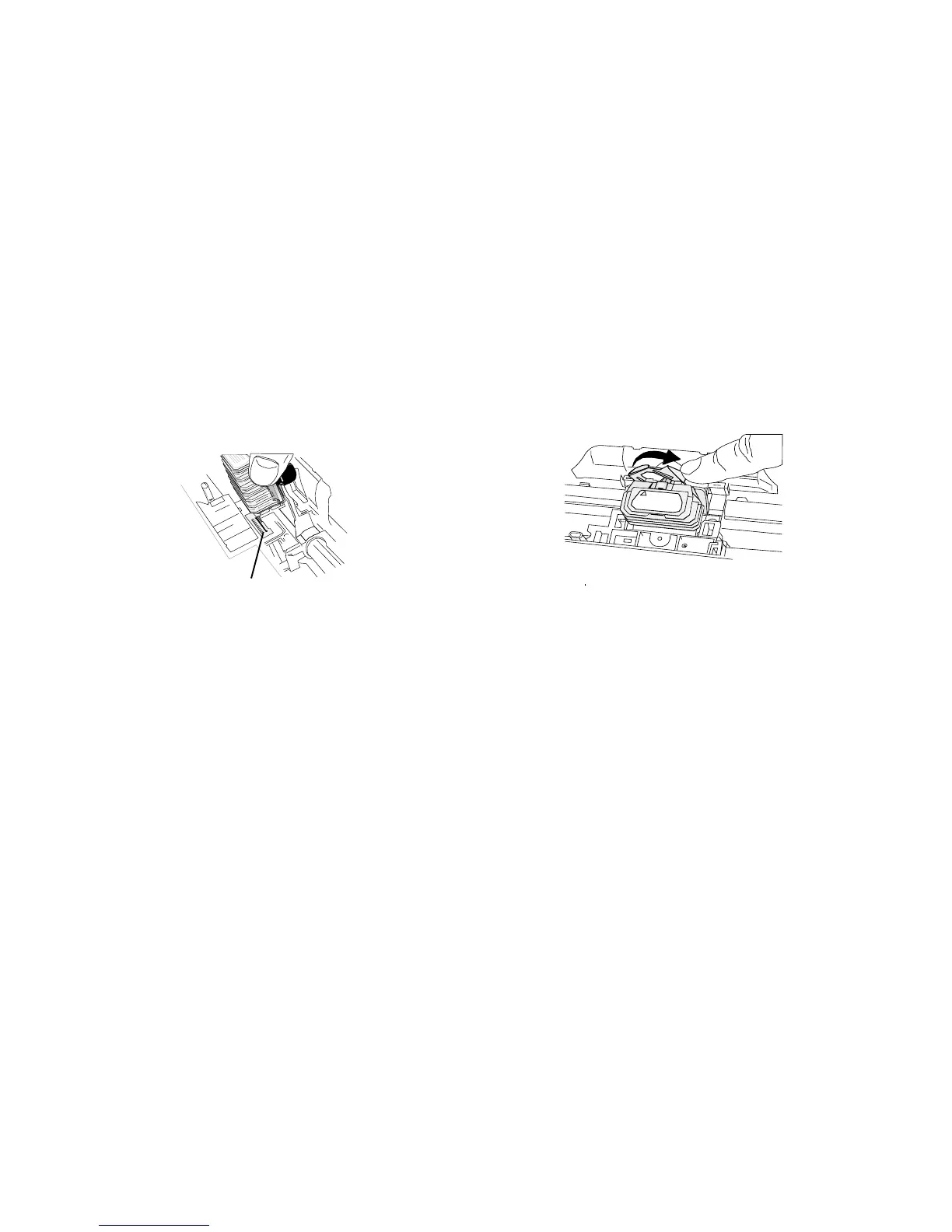

9 Replace the printhead, making sure that the circuit board
at the bottom of the printhead firmly engages the slot (1)
in the carriage.
32T-hg06.eps
!
CAUTION! Be sure the printhead is fully inserted before
proceeding.
10Reinstall the printhead clamp and swing it back over to
lock the printhead in place.
32T-hg07.eps
55091086
CAUTION
ATTENTION
VORSICHT
H
O
T
CHAUD
HEISS
!
Important! The clamp must be between the black
projection on the printhead and the metal plate on the
carriage, on both sides.
