Oki B430DN User Manual

Printer components > 9
P RINTER COMPONENTS
Apart from the Operator panels, which are described in the next chapter, the B410d/
B410dn/B420dn/B430dn printers look similar from the outside. The important components
are identified in the representations below.

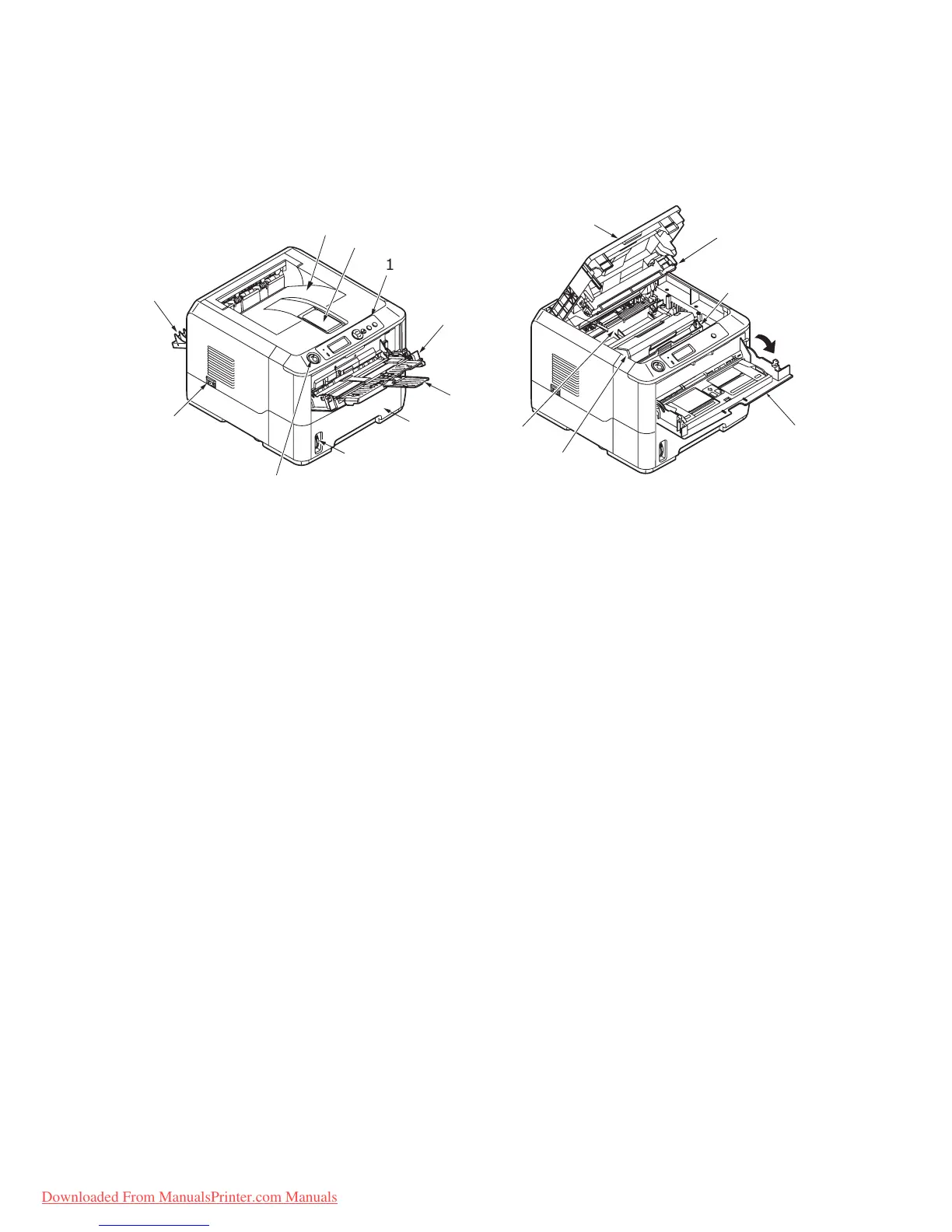

1. Operator panel (B430dn shown)
2. Output Stacker (150 sheets, face down)
3. Output Stacker extension
4. Top cover release button
5. Multi Purpose Tray (only for B420dn, B430dn.; 50 sheets)(shown in open position)
6. Multi Purpose Tray extension
7. Paper Tray (250 sheets for B410d, B410dn and B420dn, B430dn; 530 sheets for
B420dn.)
8. Paper Tray level indicator
9. ON/OFF switch
10. Rear Output cover
11. LED array
12. Image drum
13. Manual Feed Tray (only for B410d, B410dn and B420dn; single sheet feed) (shown
in open position)
14. Toner cartridge
15. Fuser unit
16. Top cove r

2
4
8
7
5
9
3
6
10
11
12
13
14
16
15
Downloaded From ManualsPrinter.com Manuals

Oki B430DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	5.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	64 MB
Processor model	PowerPC405
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Envelopes sizes	C5, C6, DL
Media weight (tray 1)	60 - 120gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP:-ARP, IPv4/v6, TCPv4, ICMPv4/v6, UDPv4/v6, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, AutoIP, SNMP, DNS, uPnP, Bonjour, WINS, Windows Rally(WSD-Print, LLTD), SLP, JetDirect protocols. Netware 3.x, 4.x, 5.x, and 6 with full NDS and NDPS support:- QServer over IP and IPX, R-Printer, N-Printer, NCP, SPX, IPX, SAP, RIP, Ethertalk:- ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP, NetBEUI: SMB, NetBIOS
Power requirements	230 VAC, 50 - 60Hz
Networking features	10/100BaseTX
Compatible operating systems	Windows 2000 / XP / XP x64 / Server 2003 / Server 2003 x64 / Vista (32-bit) / Vista (64-bit) / UNIX / Linux; Mac OS X PowerPC 10.2.8 + / OS X Intel 10.4.4 +
Display	LCD
Maximum duty cycle	70000 pages per month
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	268 x 369 x 395 mm
