14

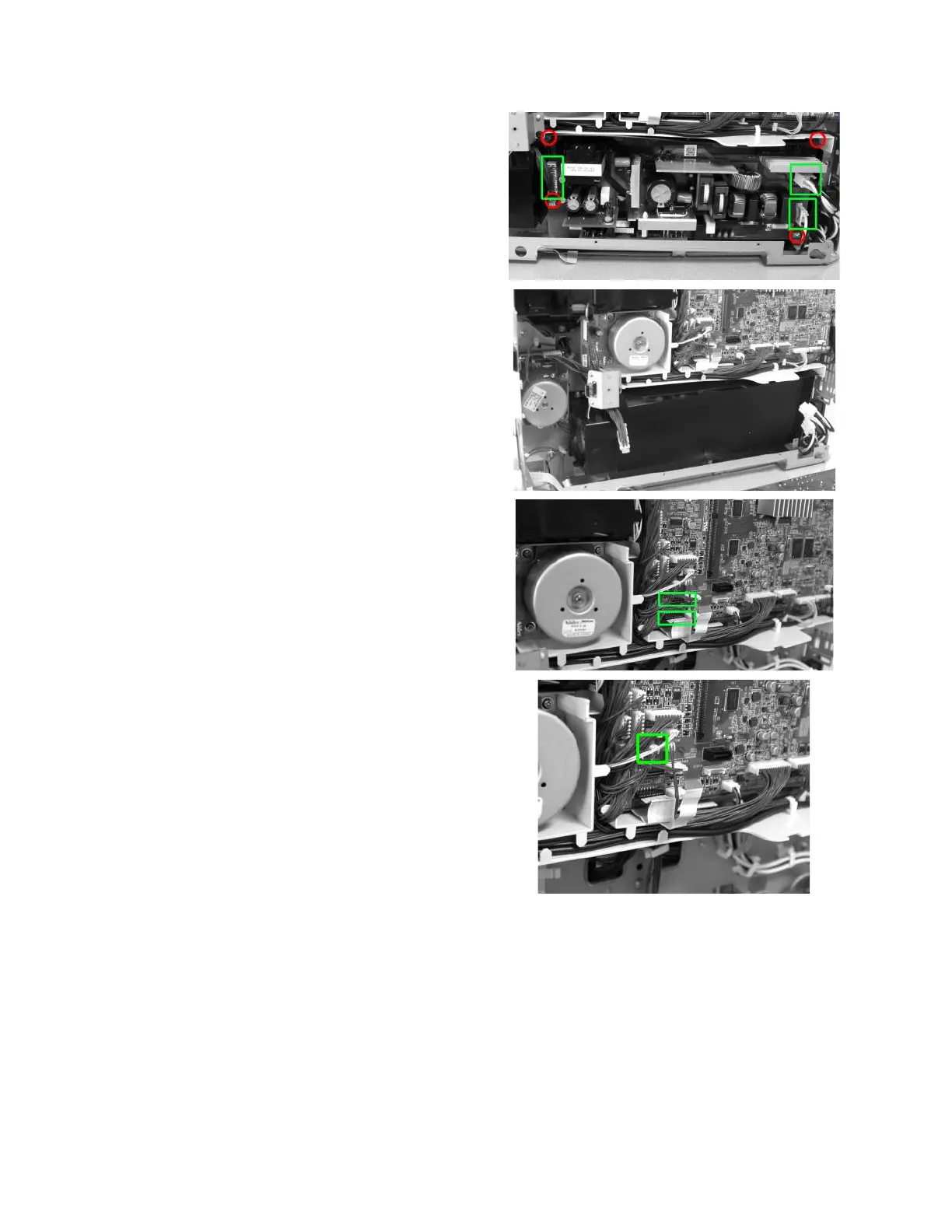

Remove three Power Connectors (Green
boxes) and 4 Screws from the Low Voltage
Power Supply.
Remove the Low Voltage Power Supply.
15
Remove the black plastic shield that is
behind the Low Voltage Power Supply
16
Gently unplug the Ribbon Cables (Green
boxes) from the printer’s logic board and
carefully unthread the ribbon cable through
the printer.
17
Gently unplug the purple 2 wire cable
(Green box) connector from the printer and
unthread it through the printer.
18
NOTE: You may find it easier to remove the front fan by removing the 2 screws securing it to
the chassis when unthreading the ribbon and 2 wire connector from the printer.
