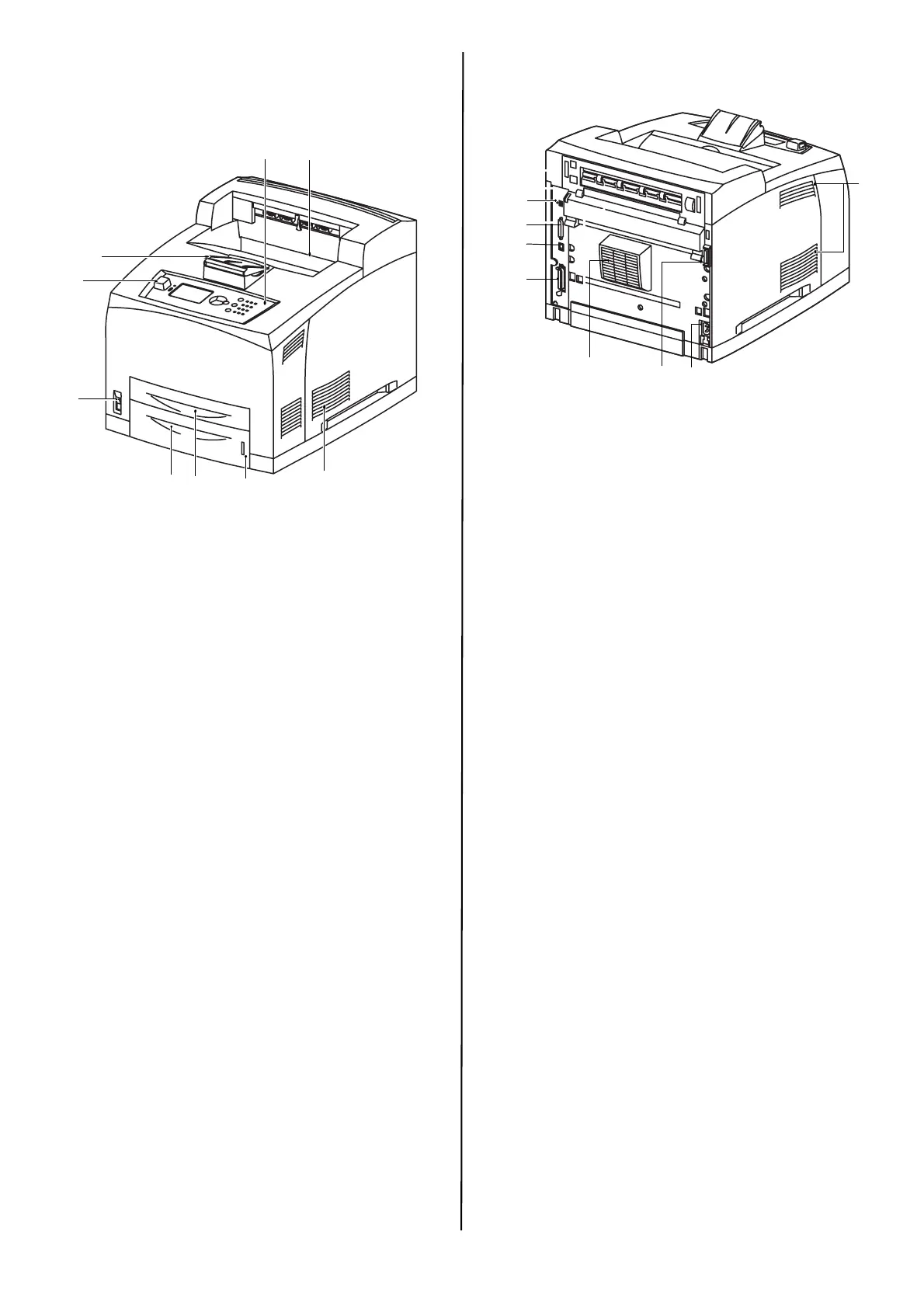

Front View
The main parts of the printer and a brief description of
their functions are shown below:
1 Face Down output tray
Print jobs are output here with printed side facing
down.
2Operator panel
Consists of the control buttons, indicators and
display.
For control panel details, refer to “The Control
Panel” on page 13.
3 Ventilation slots
Provide ventilation for the interior of the printer.
4 Paper level indicator
Indicates the level of the remaining paper in the
550-sheet paper tray.
5Tray 1
Holds 150 sheets of paper.
6Tray 2
Holds 550 sheets of paper.
7 Power switch
Switches the printer power on and off.
8 Output tray extender
Flip the tray extender out to print on paper larger
than Letter.
9 USB Flash Drive Connector
For printing PDF and other specific types from a
USB Flash Drive.
Rear View
10 Power cord connector
For connecting the power cord.
11 Parallel connector
For connecting a parallel cable.
12 Network connector
For connecting the network cable when using the
printer as a network printer. (The Network
Software Kit option needs to have been installed to
enable networking capability.)
13 USB2 connector
For connecting a USB cable.
14 Serial connector
For connecting a serial cable.
15 Duplex unit connector
For connecting the duplex unit (option).
1
2
8
7
3
6
5
4
9
13
12
11
10
14
3
15
3
