Oki C5800Ldn - Page 71

C5800 Ldn User’s Guide
Replace the Fuser • 71

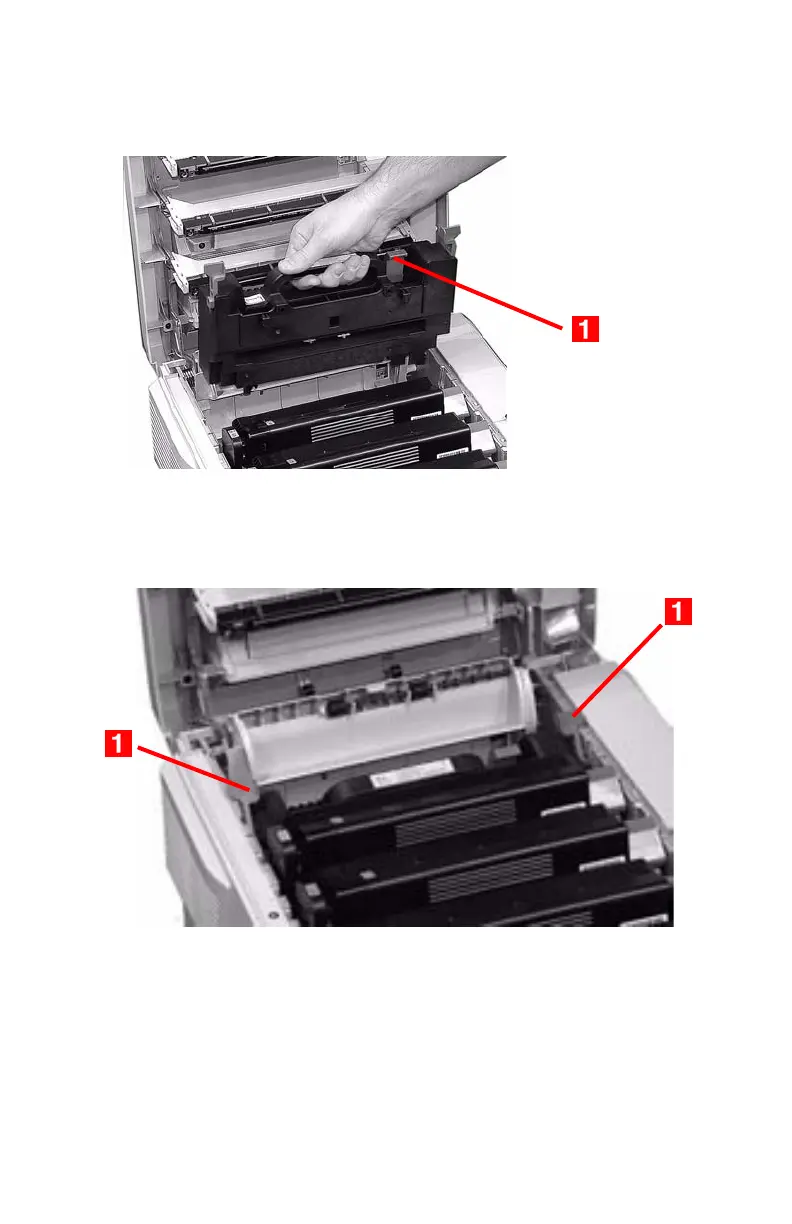

6. Hold the new fuser by the handle. The fuser pressure
release lever (1) should be on the right. Lower the fuser
into the printer.
7. Push the two blue retaining levers (1) toward the rear of
the printer to lock the fuser in place.
