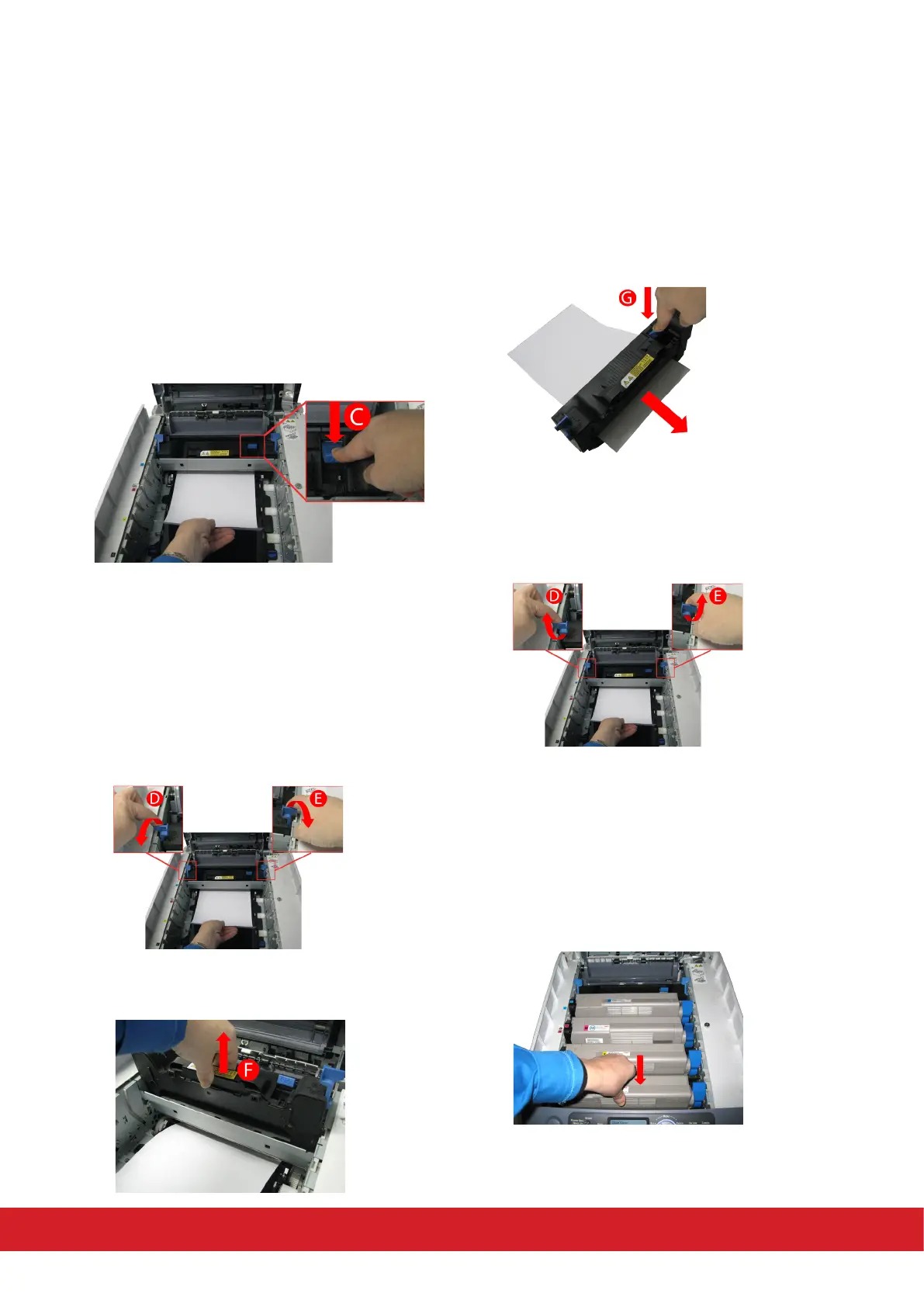

6. To remove a sheet just entering the fuser,
separate the sheet from the belt, push the fuser
pressure release lever (C) down to release the
fuser’s grip on the sheet, and withdraw the
sheet through the drum cavity area. Then allow
the pressure release lever to rise again.
NOTE: If the sheet is well advanced into the
fuser (only a short length is sll visible), do not
aempt to pull it back.
7. To remove a sheet in the fuser, push the two
retaining levers (D & E) towards the front of the
printer to release the fuser.
8. Withdraw the fuser unit using the handle (F).
9. Press release lever (G) and pull the trapped
paper from the fuser.
10. Replace fuser unit into the machine and move
locking levers (D & E) toward the rear of the
machine.
11. Holding the complete assembly by its top
centre, lower it into place in the printer, locang
the pegs at each end into their slots in the sides of
the printer cavity. Starng with the cyan image
drum unit nearest the fuser, replace the four image
drums into the drum cavity, making sure to locate
them in the correct order.
