Oki C911 - Page 28

26
67

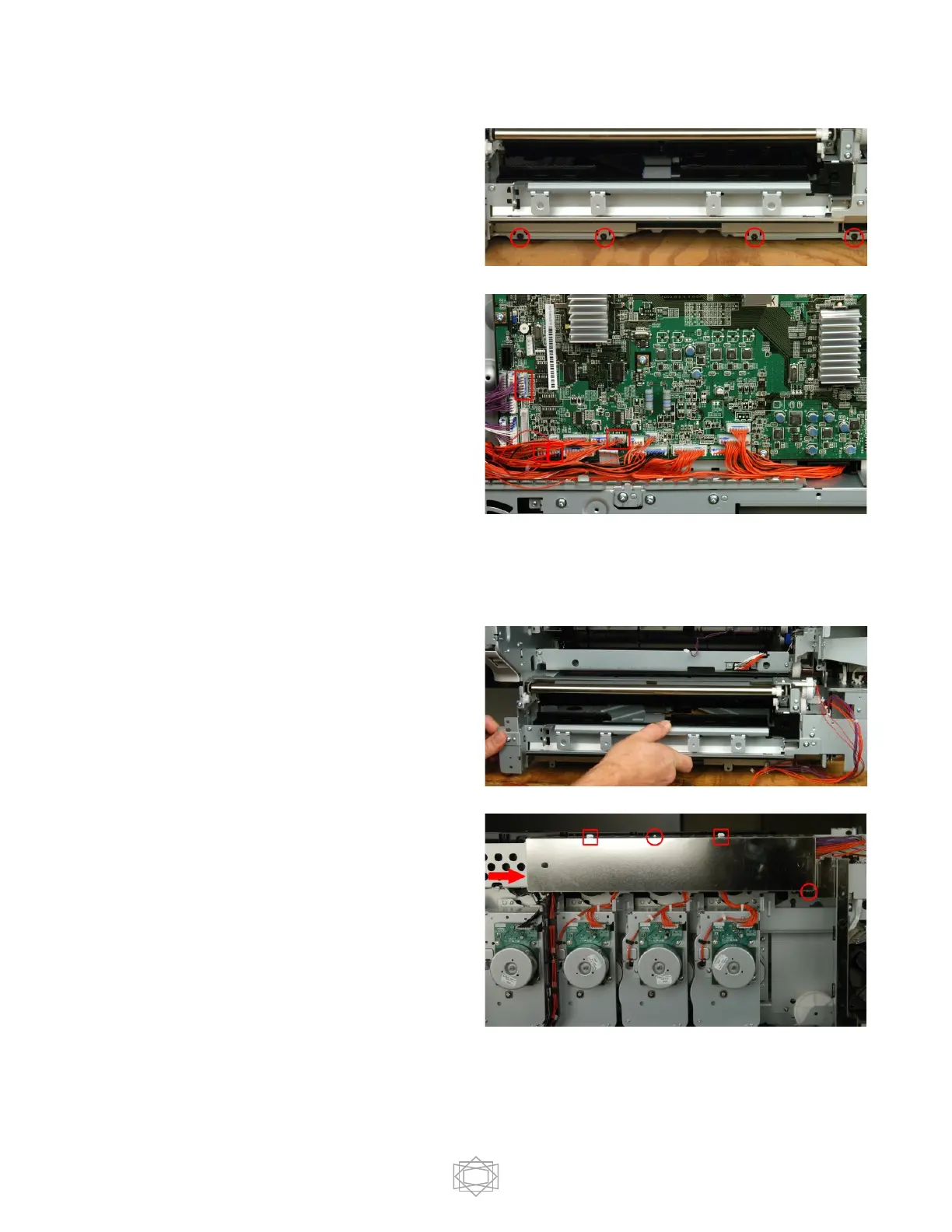

Remove 4 black screws under the hopping
unit.
68
Unplug 7 wire (purple) connector from
main board (TRAY SNS).
Unplug 2 wire (red) connector from main
board (HOP CL).
Unplug 2 wire (red) connector from main
board (REG ICL).
Unplug 4 wire (red) connector from main
board (HOP M).
69
Unthread these harnesses from the wire guide & frame.
70
Slide the hopping unit out as you guide the
wire harness out.
71
On the back of the unit, remove 3 silver
screws securing the metal sub-assembly
shield.
