C9800 User’s Guide> 80

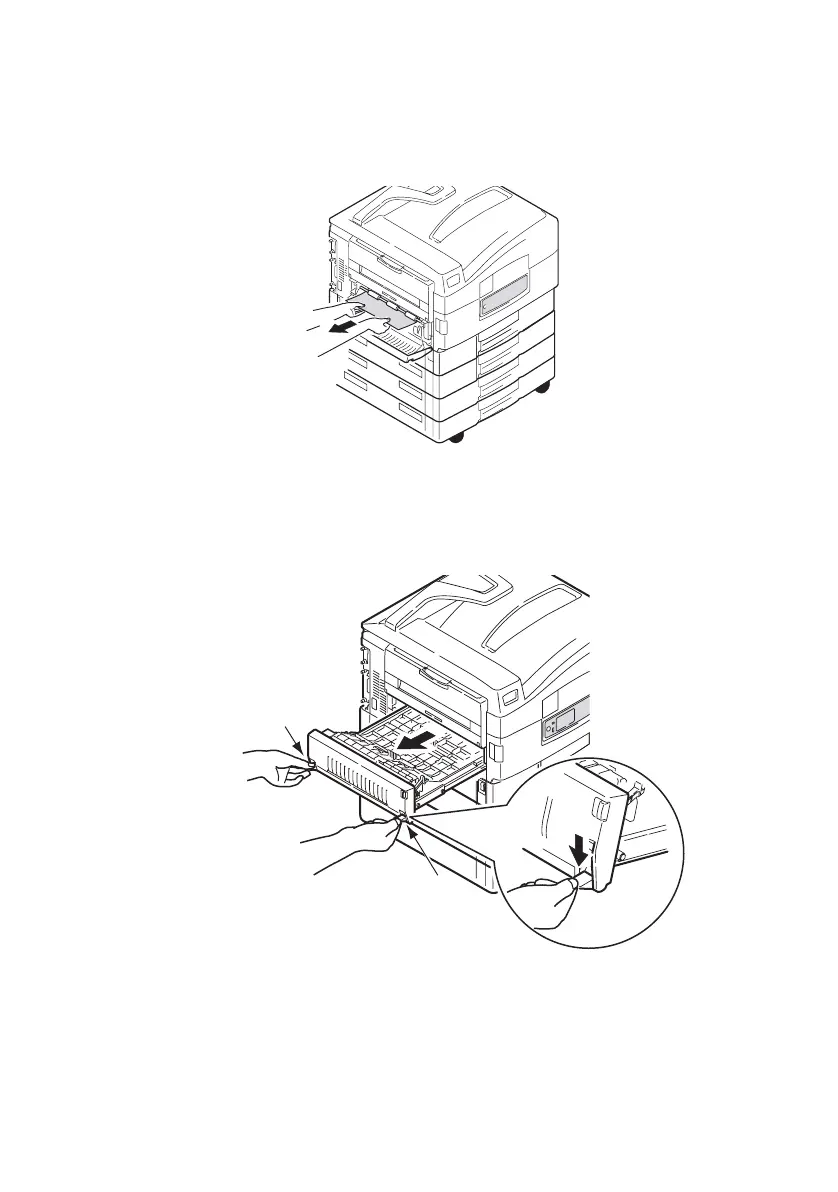

3. Carefully remove any jammed paper then close the cover.

4. Operate the levers (3) and pull out the duplex unit.
