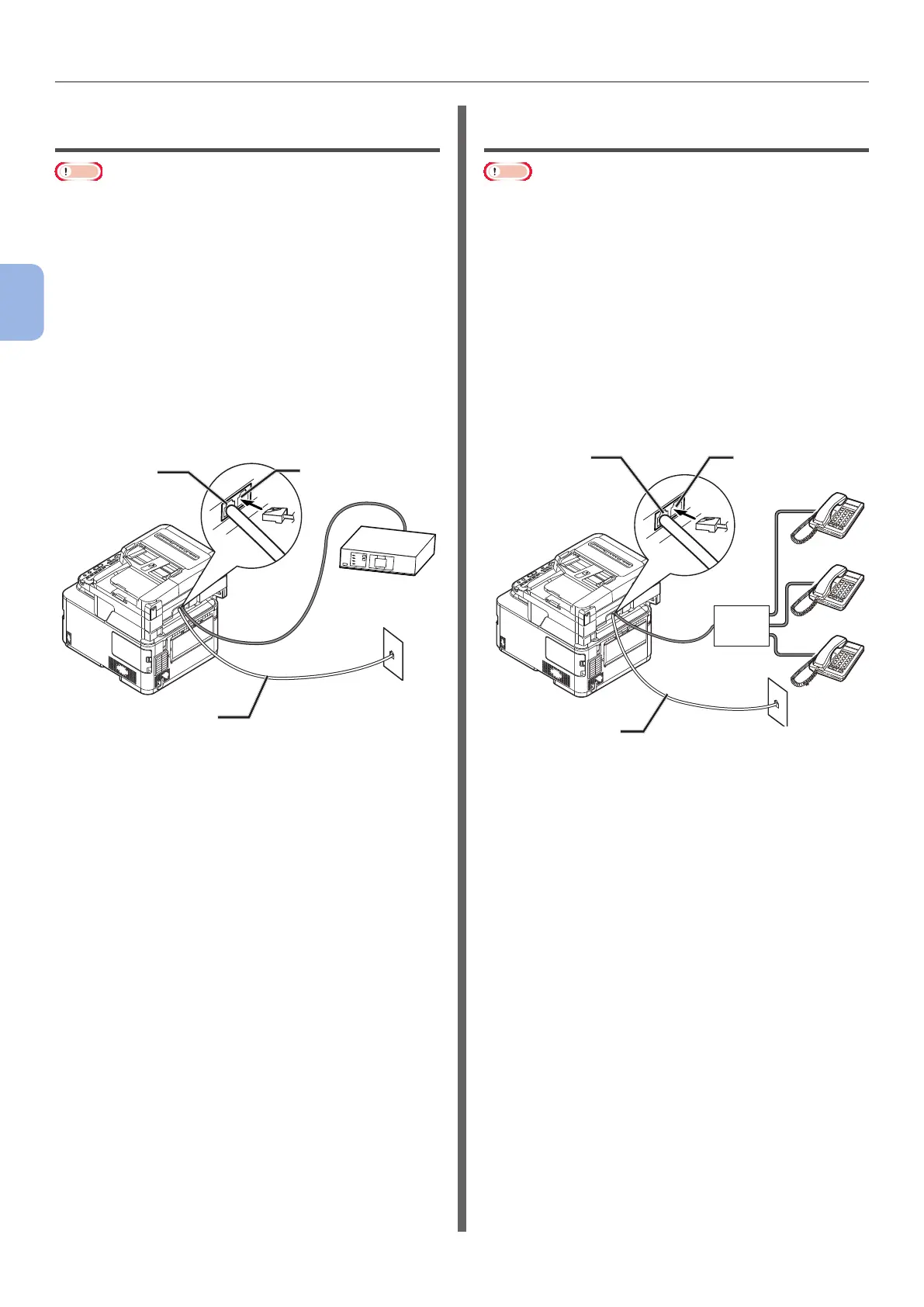

Initial Setup for Faxing
3
Faxing (For MC342dn, MC342dw, MC362dn, MC362w, MC562dn,
MC562w, MC562dw, ES5462 MFP, ES5462dw MFP, MPS2731mc only)
Connecting to a CS Tuner or Digital
Television
Note
● Do not connect with USB cable or LAN cable at this point.
First, check that the machine is turned off. If
the machine is turned on, hold down the power
switch for approximately one second to turn off
the power.
Plug the
[Telephone cable] connected to
the [Public Line (Analog)] into the [LINE
connection] of your machine.
Remove the telephone connector cover.
Plug the telephone cable connected to the
CS tuner or digital television into the [TEL
connection] of your machine.
LINE connection
Telephone cable
TEL connection
CS tuner or digital
television
Public Line
(Analog)
Connecting to a PBX, Home
Telephone or Business Phone
Note
● Do not connect with USB cable or LAN cable at this point.
First, check that the machine is turned off. If
the machine is turned on, hold down the power
switch for approximately one second to turn off
the power.
Plug the [Telephone cable] connected to
the [Public Line (Analog)] into the [LINE
connection] of your machine.
Remove the telephone connector cover.
Plug the telephone cable connected to a
control device including PBX, etc. into the [TEL
connection] of your machine.
LINE connection TEL connection
Telephone cable
Control device
including PBX, etc.
Public Line
(Analog)
● Home Telephone
In general, many telephones are connected
with one or two telephone lines, and internal
communication and door phone are possible.
This is simple switching equipment for
household.
● Business Phone
In general, it can accommodate more than
two telephone lines, these telephone lines can
be shared with other telephones, and internal
communication is possible. This is simple
switching equipment.
