(4)

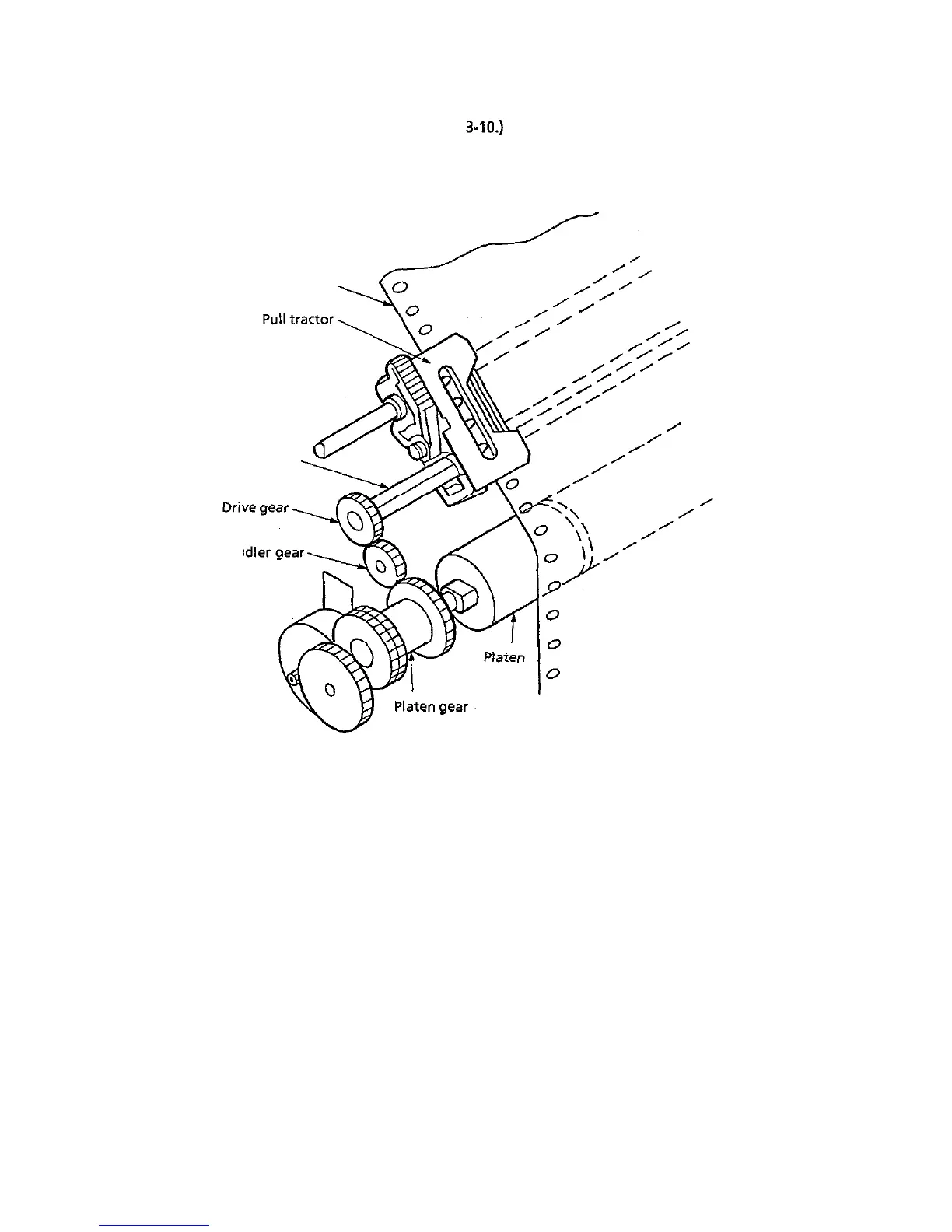

Pull tractor mechanism (option) (See Figure
3-10.)
Bottom feed of continuous sheets is possible only when an optional tractor unit is installed.
Continuous form
Sheet feeder shaft
Figure 3-10
The rotation of the platen is transmitted to the idler gear of the pull tractor unit through the
platen gear at the left end of the platen. The rotation of the idler gear is transmitted to the
drive gear, and continuous forms are fed by the pull tractor being rotated by the sheet feeder
shaft.
3-23
