Conversely, if the release lever is pushed in a closed position, the release link rotates in a
clockwise direction. The release shaft, which is engaged with this, rotates clockwise at the
same time. The pressure roller is pressed against the platen by the pressure spring which is
welded to the release shaft, thus feeding is enabled.

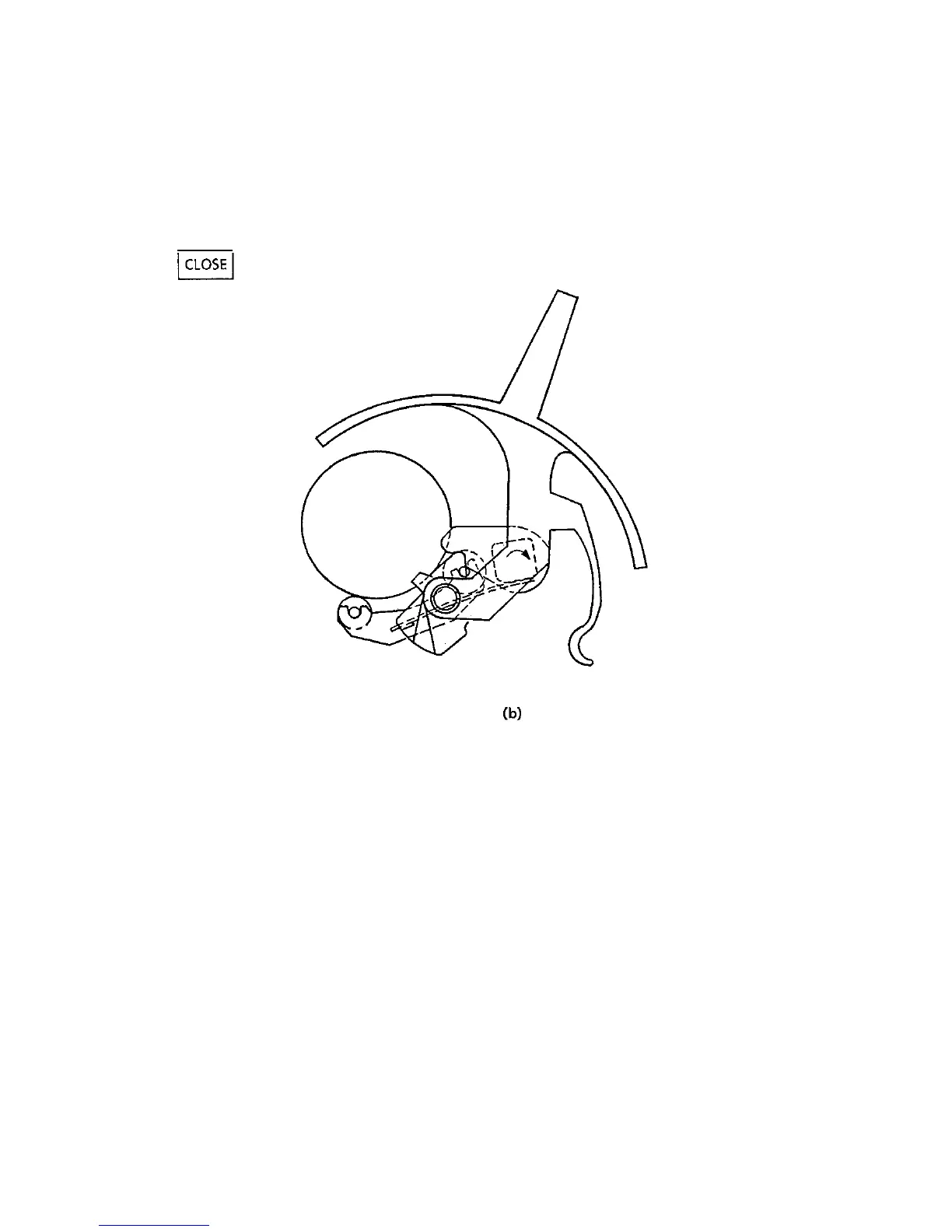

Figure 3-12
