Installing the Optional Cut Sheet Feeder
Installing the Optional Cut Sheet Feeder
A Cut Sheet Feeder (CSF) is ideal for high-volume printing using single-sheet paper. The CSF
feeds paper automatically, controlled from the printer•s front panel or from the computer.
There are two cut sheet feeders available for the Pacemark 3410: the single-bin CSF 3001 and the
dual-bin CSF 3002. Since both feeders are installed in the same way, we•ll illustrate the
procedure with the CSF 3001, noting any differences as they arise.

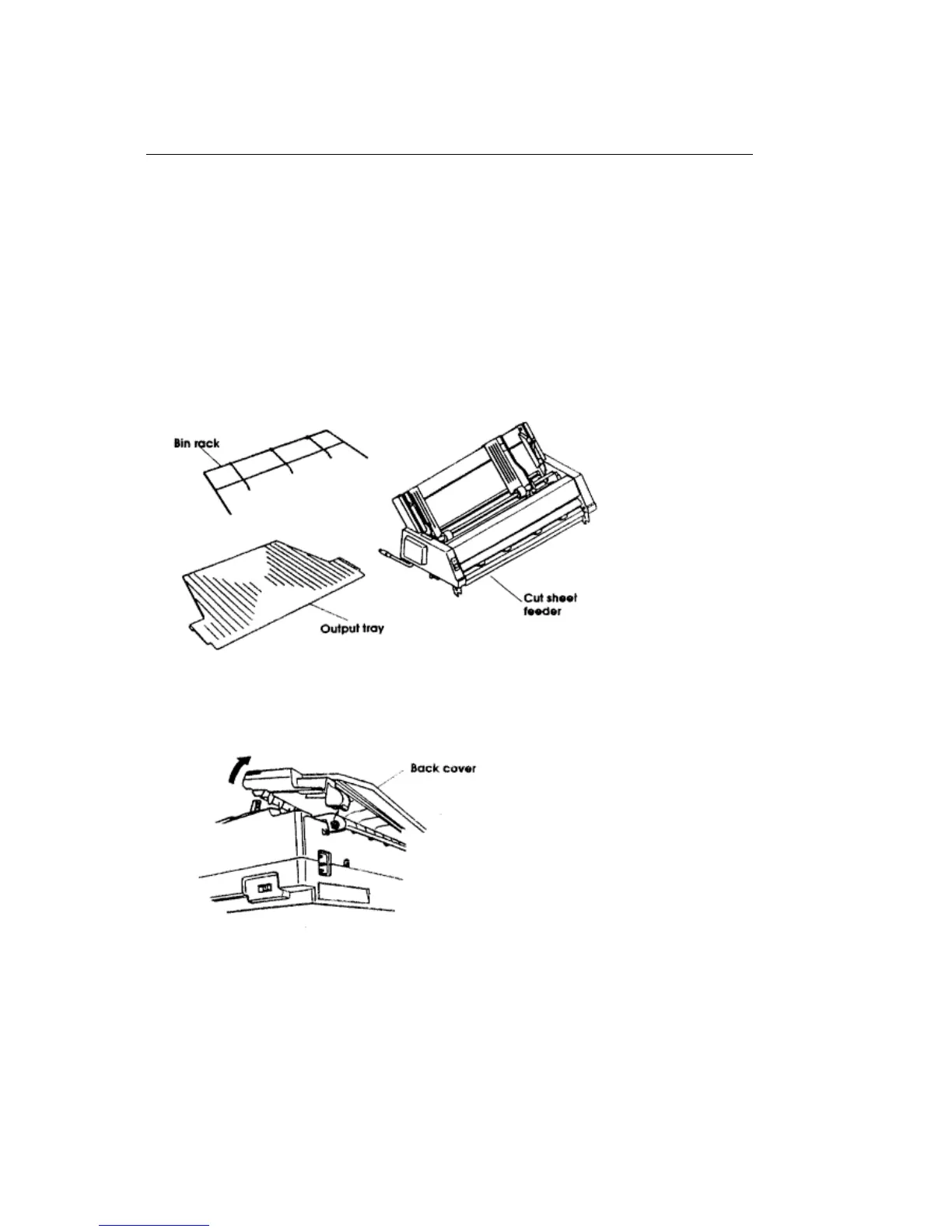

Unpack your cut sheet feeder and make sure you have all the parts.
- Cut Sheet Feeder
- Bin rack (1 for the CSF 3001 and 2 for the CSF 3002)
- Output tray
1. Make sure the printer is off.
2. Open the front cover.
3. Remove the back cover: tilt it back slightly and lift it off.
4. Push the bail lever forward to the open position and the paper lever back to the single sheet
position.
5. Hold the cut sheet feeder over the printer.
6. While fitting the CSF hooks over the platen shaft, gently lower it onto the printer.
ML3410 ( 96-02-07 )

Oki ML3410 Specifications

Print Specifications

printhead	9 pin
print speed at 10 cpi	HSD 550 cps, Utility 417 cps, NLQ 104 cps
graphics resolution	1445216 dpi maximum

Paper Handling

paper weight	12 to 24 lb
paper thickness top feed	0.36 mm (0.014 inches) maximum
paper thickness bottom feed	0.50 mm (0.020 inches) maximum

Operating Environment

operating temperature	50 to 104 degrees F (10 to 40 degrees C)
storage temperature	14 to 122 degrees F (-10 to +50 degrees C)
humidity	20 to 80% RH

Electrical Requirements

voltage	120 volts, +5.5%/-15% 220/240 volts, ±10%
frequency	50/60 Hz, ±2 Hz
power idling	30 watts
power operating	75 watts

Weight and Dimensions

width	25-1/4 inches (540 mm)
depth	19 inches (483 mm)
height	15 inches (203 mm)
weight	63 lbs. (25.4 kg)
