Oki ML3410 User Manual

Loading the CSF
Loading the CSF
Each bin of the optional CSF3001 and CSF3002 holds up to 130 sheets of 20lb. paper or between
100 and 120 sheets of 24 lb. paper, depending on thickness and texture.

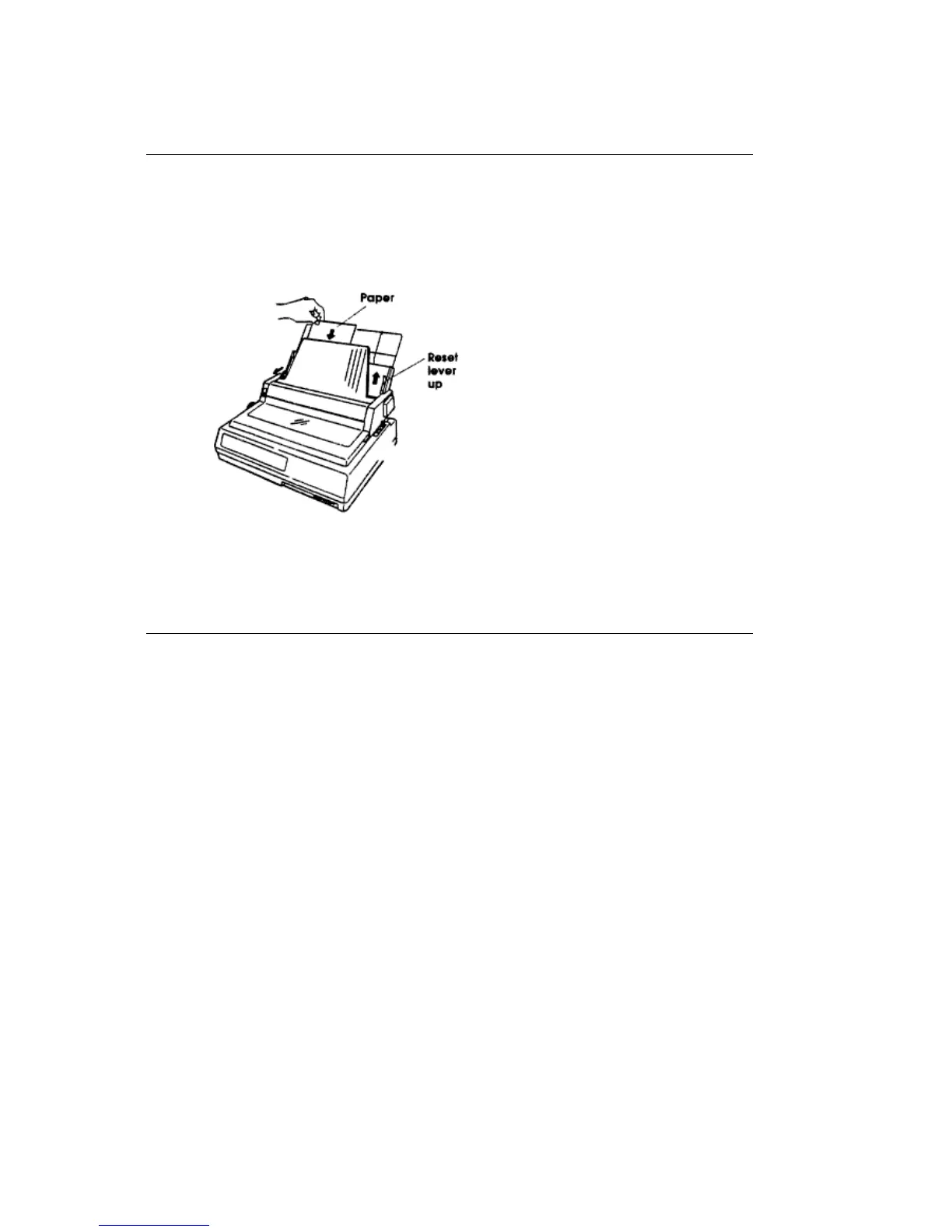

1. Push the reset lever up to load paper and the envelope lever forward for paper.
2. Make sure the paper lever is in the single sheet position.
3. Fan a stack of paper and square it. Put the paper in the paper bin.
4. Adjust the paper guides to the width of the paper.
5. Once the paper is in the proper position, push the reset lever down.
4. Adjust the paper guides to the width of the paper.
5. Once the paper is in the proper position, push the reset lever down.
6. Push the FORM FEED button to insert a sheet of paper.
7. To eject a page, press the FORM FEED button again.
ML3410 ( 96-02-07 )

Oki ML3410 Specifications

Print Specifications

printhead	9 pin
print speed at 10 cpi	HSD 550 cps, Utility 417 cps, NLQ 104 cps
graphics resolution	1445216 dpi maximum

Paper Handling

paper weight	12 to 24 lb
paper thickness top feed	0.36 mm (0.014 inches) maximum
paper thickness bottom feed	0.50 mm (0.020 inches) maximum

Operating Environment

operating temperature	50 to 104 degrees F (10 to 40 degrees C)
storage temperature	14 to 122 degrees F (-10 to +50 degrees C)
humidity	20 to 80% RH

Electrical Requirements

voltage	120 volts, +5.5%/-15% 220/240 volts, ±10%
frequency	50/60 Hz, ±2 Hz
power idling	30 watts
power operating	75 watts

Weight and Dimensions

width	25-1/4 inches (540 mm)
depth	19 inches (483 mm)
height	15 inches (203 mm)
weight	63 lbs. (25.4 kg)
