Oki ML3410 User Manual

Remove shipping restraint
Remove shipping restraint
After unpacking the printer, there are a few minor tasks that must be performed before you can
begin.

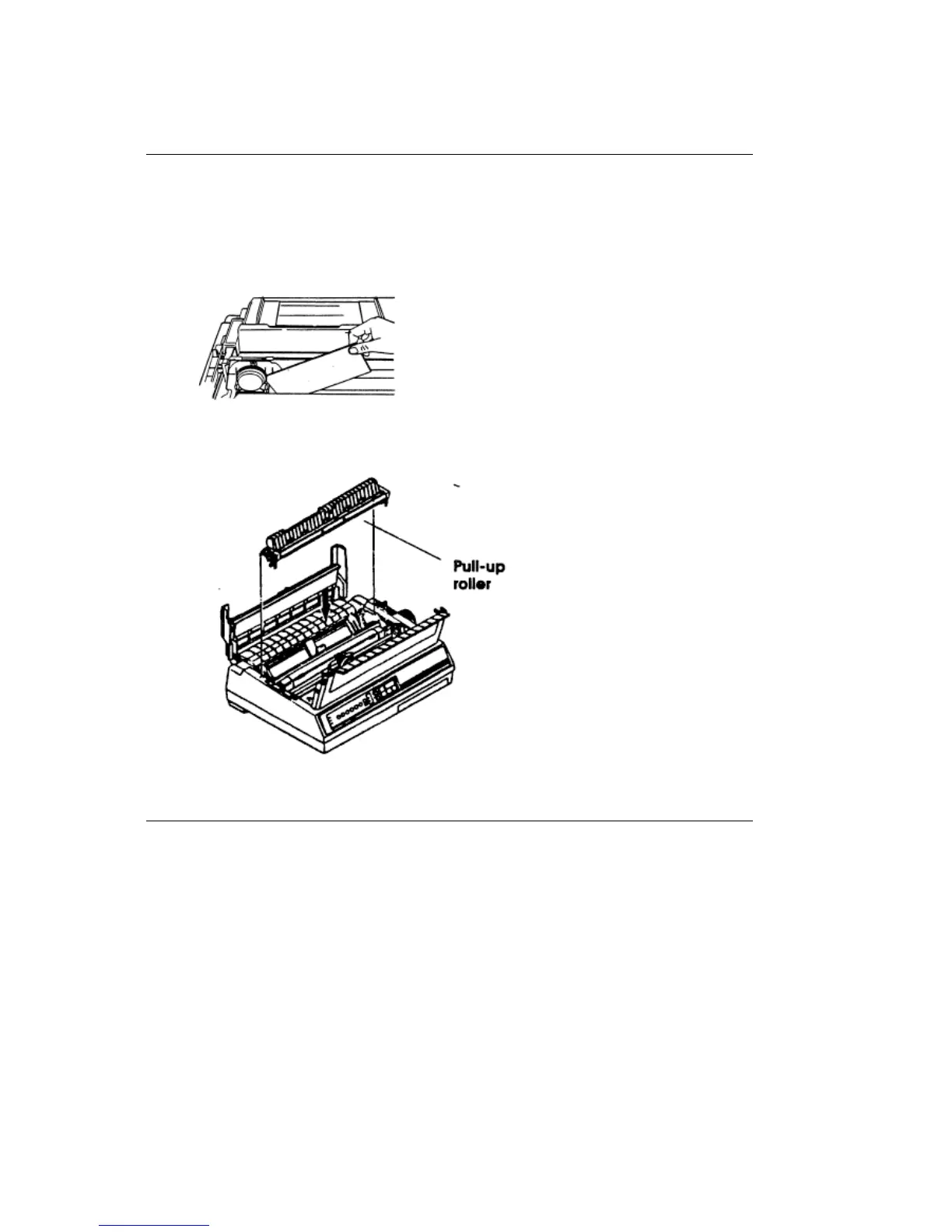

1. Open the front cover of the printer.
2. Remove the shipping restraint located under the printhead.
3. Open the rear cover. Set the pull-up roller on the printer so that the tabs on the roller are in the
grooves in the printer.
Save the shipping restraint and the packing material for reshipping.
ML3410 ( 96-02-07 )

Oki ML3410 Specifications

Print Specifications

printhead	9 pin
print speed at 10 cpi	HSD 550 cps, Utility 417 cps, NLQ 104 cps
graphics resolution	1445216 dpi maximum

Paper Handling

paper weight	12 to 24 lb
paper thickness top feed	0.36 mm (0.014 inches) maximum
paper thickness bottom feed	0.50 mm (0.020 inches) maximum

Operating Environment

operating temperature	50 to 104 degrees F (10 to 40 degrees C)
storage temperature	14 to 122 degrees F (-10 to +50 degrees C)
humidity	20 to 80% RH

Electrical Requirements

voltage	120 volts, +5.5%/-15% 220/240 volts, ±10%
frequency	50/60 Hz, ±2 Hz
power idling	30 watts
power operating	75 watts

Weight and Dimensions

width	25-1/4 inches (540 mm)
depth	19 inches (483 mm)
height	15 inches (203 mm)
weight	63 lbs. (25.4 kg)
