4.1. List and functions of the various items of “USER” equipment for
programming and calibration of the unit

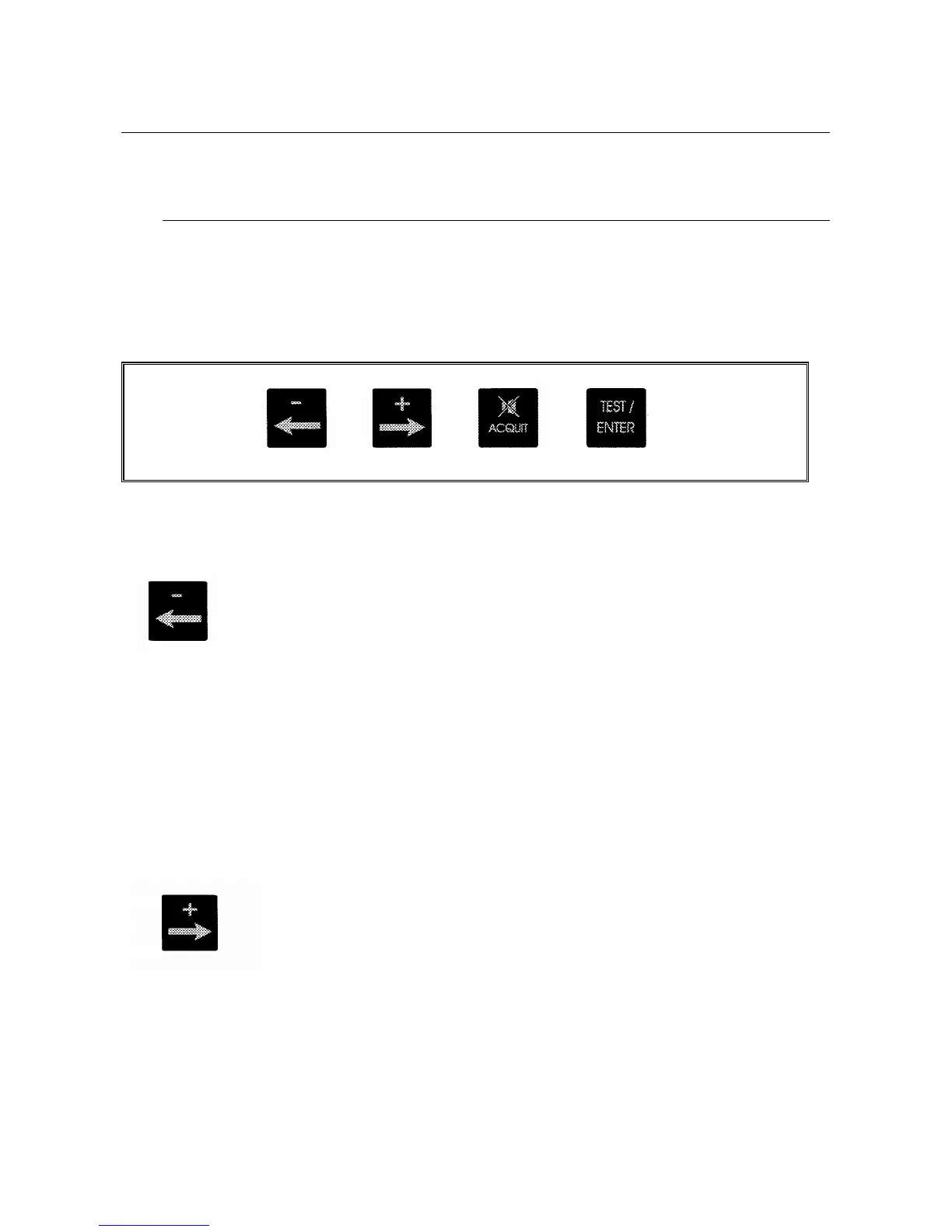

4.1.1. Keypads
The first is equipped with four touch keys accessible without opening and swivelling the MX48
unit’s FRONT panel, the second is equipped with the same keys accessible by opening and
swivelling the FRONT panel for maintenance (Fig 4 rep B).
NORMAL MODE
- Manual display of previous channel
- Combined with the “PLUS” key to restart the channels
automatic display cycle.
MAINTENANCE MODE
- Manual display of previous channel
- Decrease value, threshold, etc.
- Display of previous choice (onáoff, etc.)
- NO
NORMAL MODE
- Manual display of next channel
- Combined with the “MINUS” key to restart the
channels automatic display cycle.
MAINTENANCE MODE
- Manual display of next menu
- Increase value, threshold, etc
- Display of next chooice (onáoff, etc)
- YES
