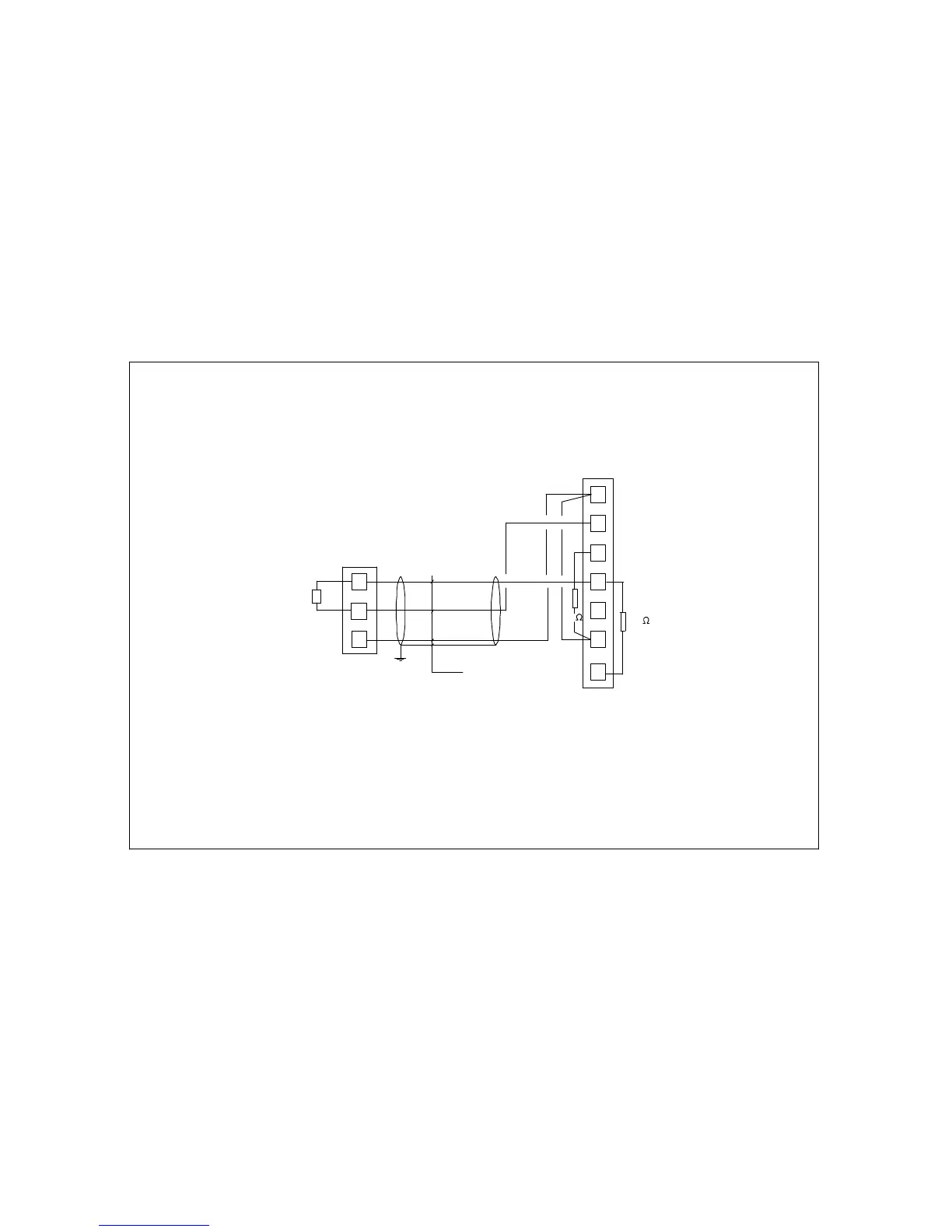

CONNECTION OF A FLAME DETECTOR
EQUIPPED WITH TERMINAL BLOCK OF TYPE C
FIGURE 15
MX48 terminal block
(See figure 12)
Detector terminal
block : Type C
Cable 3xn shielded
6 max in loop
between 2 and 3 MX48 units
R
1
2
3
1
2
4
5
6
7
8
1.8K
6.8K
R
2
R
1
