OLC(T) 100
User manual

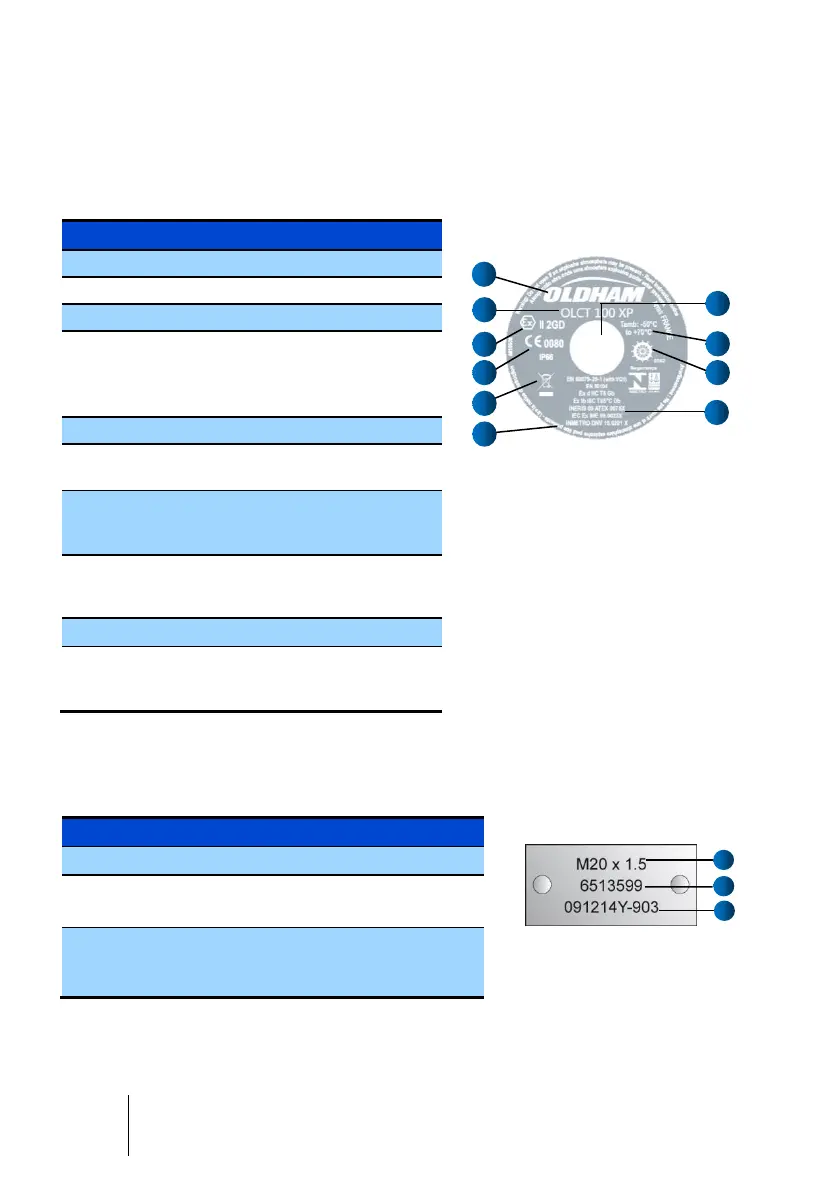

Identifiers
The enclosure has two identifier labels, as described below:
Company label
This in turn groups the detector features together:
Id.
Description
008
Figure 3 : Firm plate (example)
1.
Manufacturer's name
2.
Name of product
3.
ATEX Marking
4.
CE symbol and the number of the
organisation that provided the OLDHAM
SIMTRONICS production quality
certification (INERIS )
5.
Warning
6.
Type of gas detected and range of
measurement
7.
Temperature range for w hich the detector
is certified for use in explosive areas
(excluding metrological performance)
8.
Symbol of Marine Certification and
number of the Approval Agency that
issued the certificate
9.
Recycling symbol
10.
Additional markings ATEX, IECEX,
INMETRO, etc and numbers of
certificates
Side label
This label shows the following :
Id.
Description
1.
Thread diameter and pitch for cable inlet
2.
Detector reference number, less sensor (P/N)
3.
Detector serial number (S/N)
The first tw o digits (in this case 09) correspond
to the year of manufacture (in this case 2009)
010
Figure 4 : side label
2
3
1
CH4
0-100% LIE
1
2
3
4
9
5
8
7
6
10
