Installation of the enclosure shall be secured with 4 x M6 screws and the
appropriate plugs for the supporting material
016

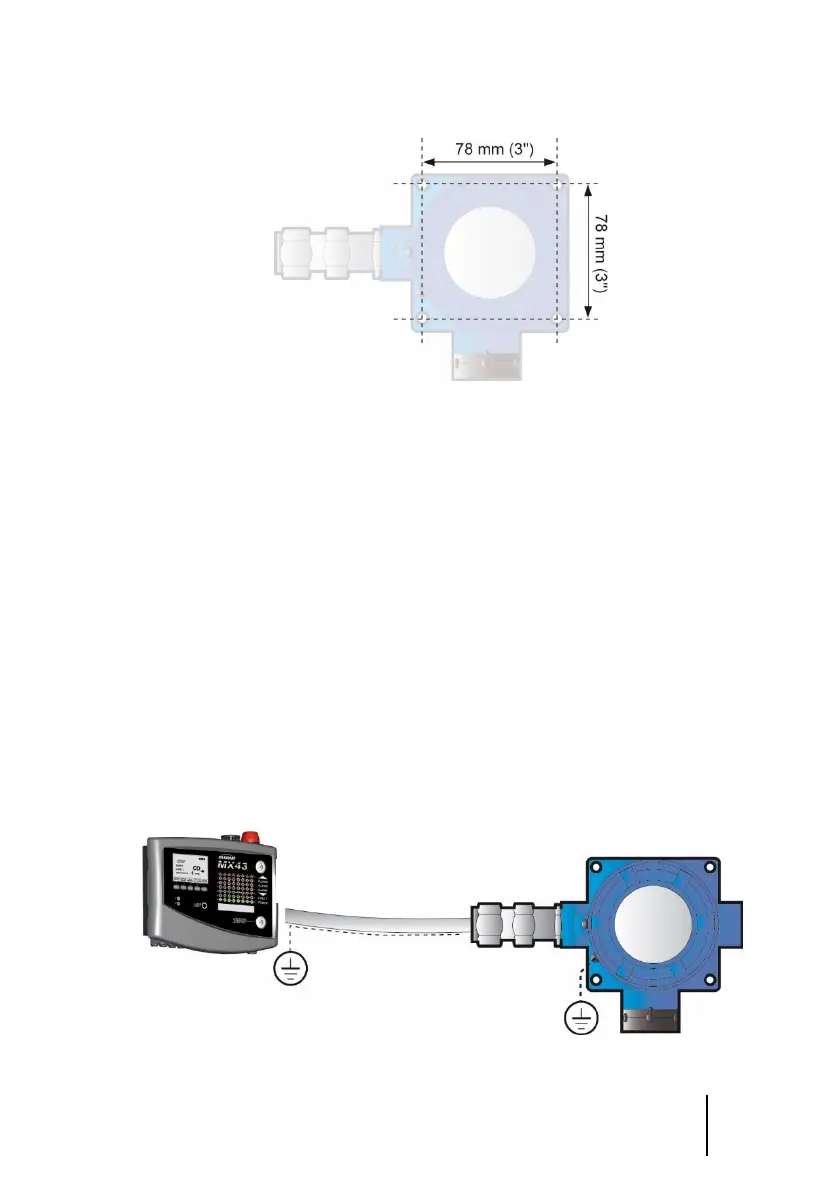

Figure 6 : fixing template for the enclosure
A special holder is available for mounting the detector on the ceiling (see section
on accessories.
In the OLCT 100 HT version, only the removable detector head can be used at
temperatures from -20°C to + 200°C. The OLCT 100 HT enclosure can only be
used in ambient temperatures from -50°C to + 70°C. The high temperature cable
between the OLCT 100 HT enclosure and the head is integral with the instrument
and is not user-replaceable.
The cable should be protected mechanically
Connector cable
The detector shall be connected to the controller (measurement and automation
unit) by a shielded instrumentation cable, armoured when necessary. The choice
of cable will be dictated by the particular requirements of the installation, distance,
and type of detector (see table below).
018
Figure 7: the cable connecting the detector to the controller should be chosen wit h
care
