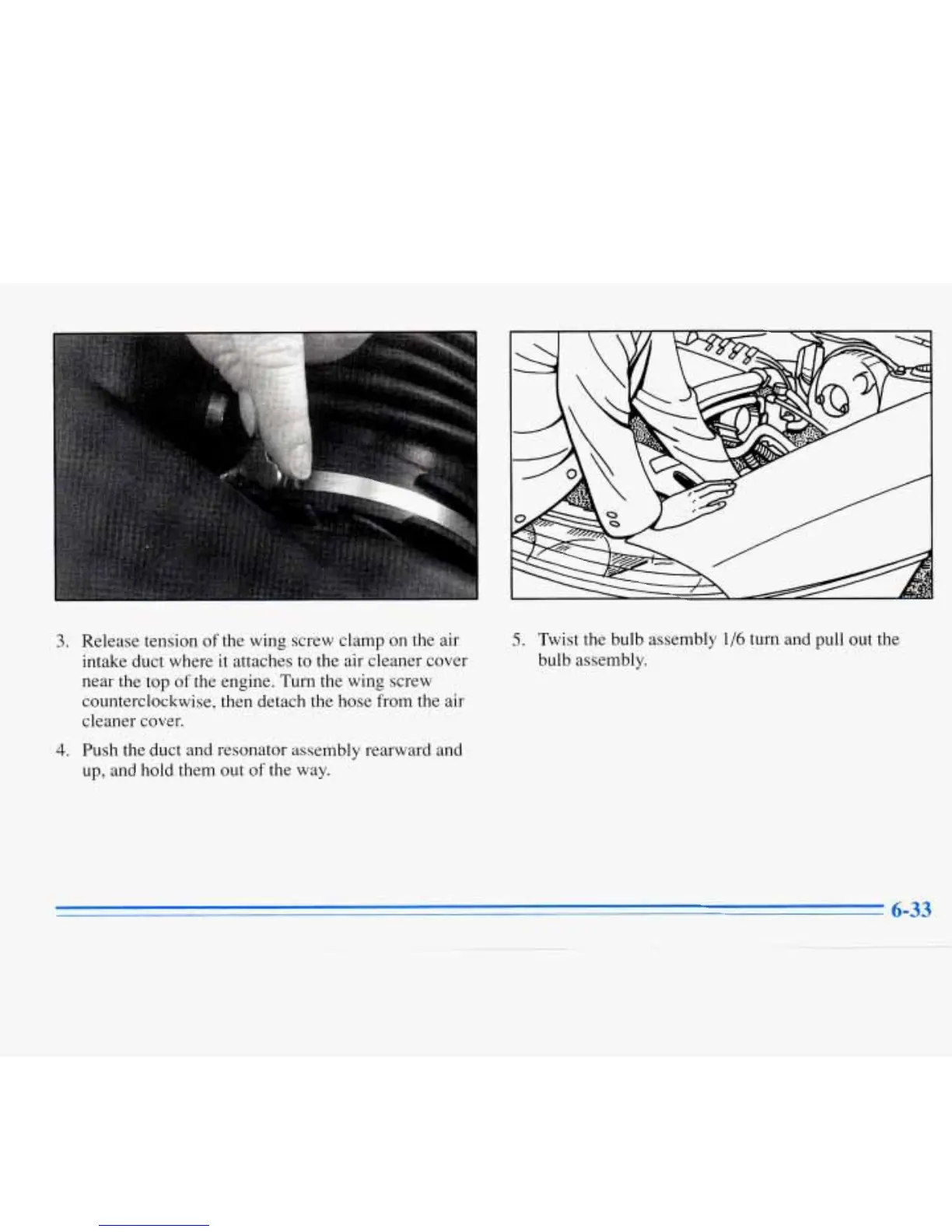

3.
Release tension of the wing screw clamp on the air
intake duct where
it
attaches to the air cleaner cover
near the top of the engine. Turn the wing screw
counterclockwise, then detach the hose from the air
cleaner cover.
4.
Push the duct and resonator assembly rearward and
up,
and hold them out of the way.
5.
Twist the bulb assembly
1/6
turn and pull out the
bulb assembly.
