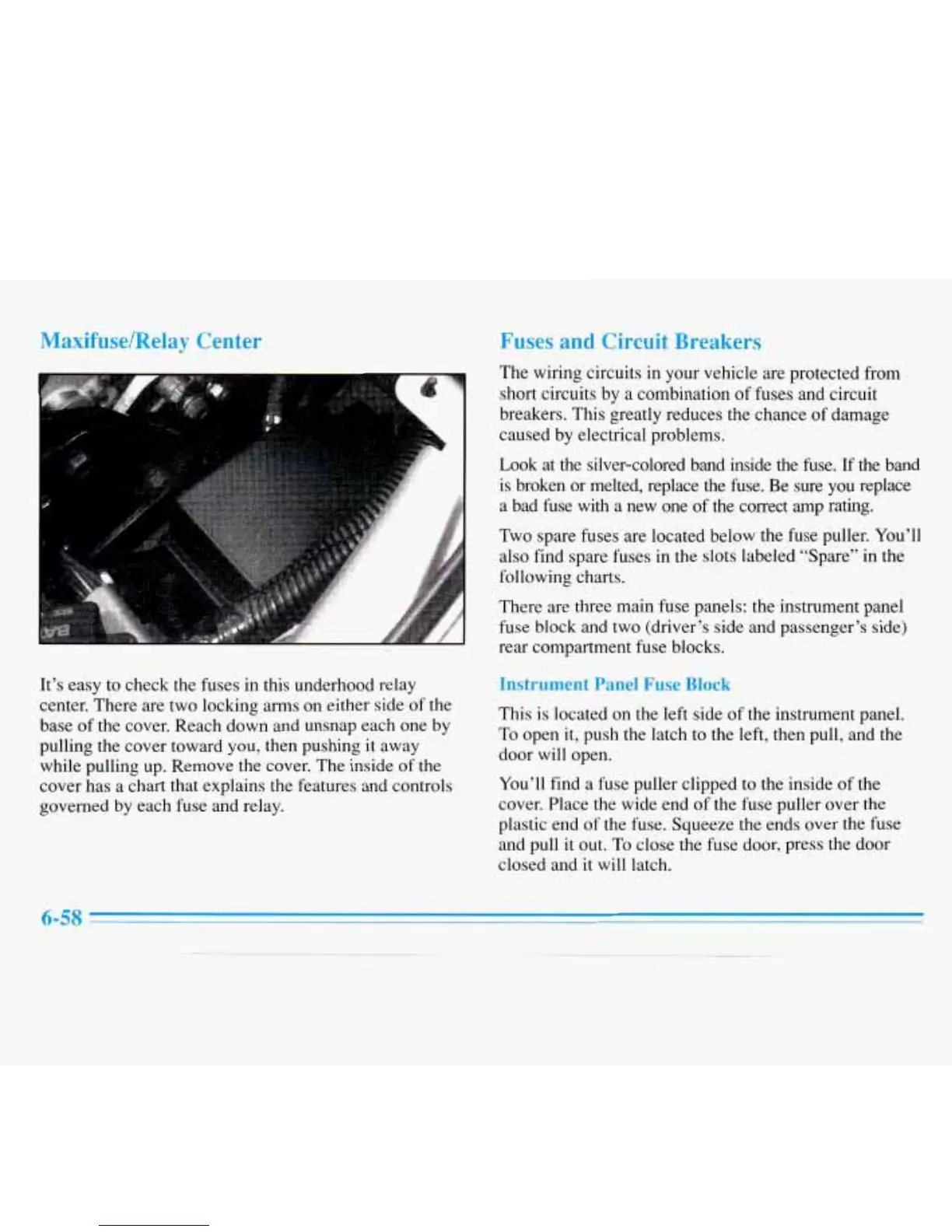

Maxifuse/Relay
Center
It’s easy
to
check the fuses in this underhood relay
center. There are two locking
ms
on either side of the
base of the cover. Reach down and unsnap each one by
pulling
the
cover toward you, then pushing it away
while pulling up. Remove the cover.
The
inside
of
the
cover has a chart that explains the features and controls
governed by each fuse and relay.
Fuses
and
Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination
of
fuses and circuit
breakers. This greatly reduces the chance
of
damage
caused by electrical problems.
Look at the silver-colored band inside the fuse.
If
the band
is broken or melted, replace the
fuse.
Be sure you replace
a bad fuse with a new one of the correct amp rating.
Two spare fuses are located below the fuse puller. You’ll
also find spare fuses in the slots labeled “Spare” in the
following charts.
There are three main fuse panels: the instrument panel
fuse block and two (driver’s side and passenger’s side)
rear compartment
fuse
blocks.
Instrument
Panel
Fuse
Block
This is located on the left side of the instrument panel.
To open
it, push the latch to the left, then pull, and the
door will open.
You’ll find a fuse puller clipped to the inside
of
the
cover. Place the wide end of the fuse puller over the
plastic end
of the fuse. Squeeze the ends over the fuse
and pull
it
out.
To
close the fuse door, press the door
closed and it will latch.
