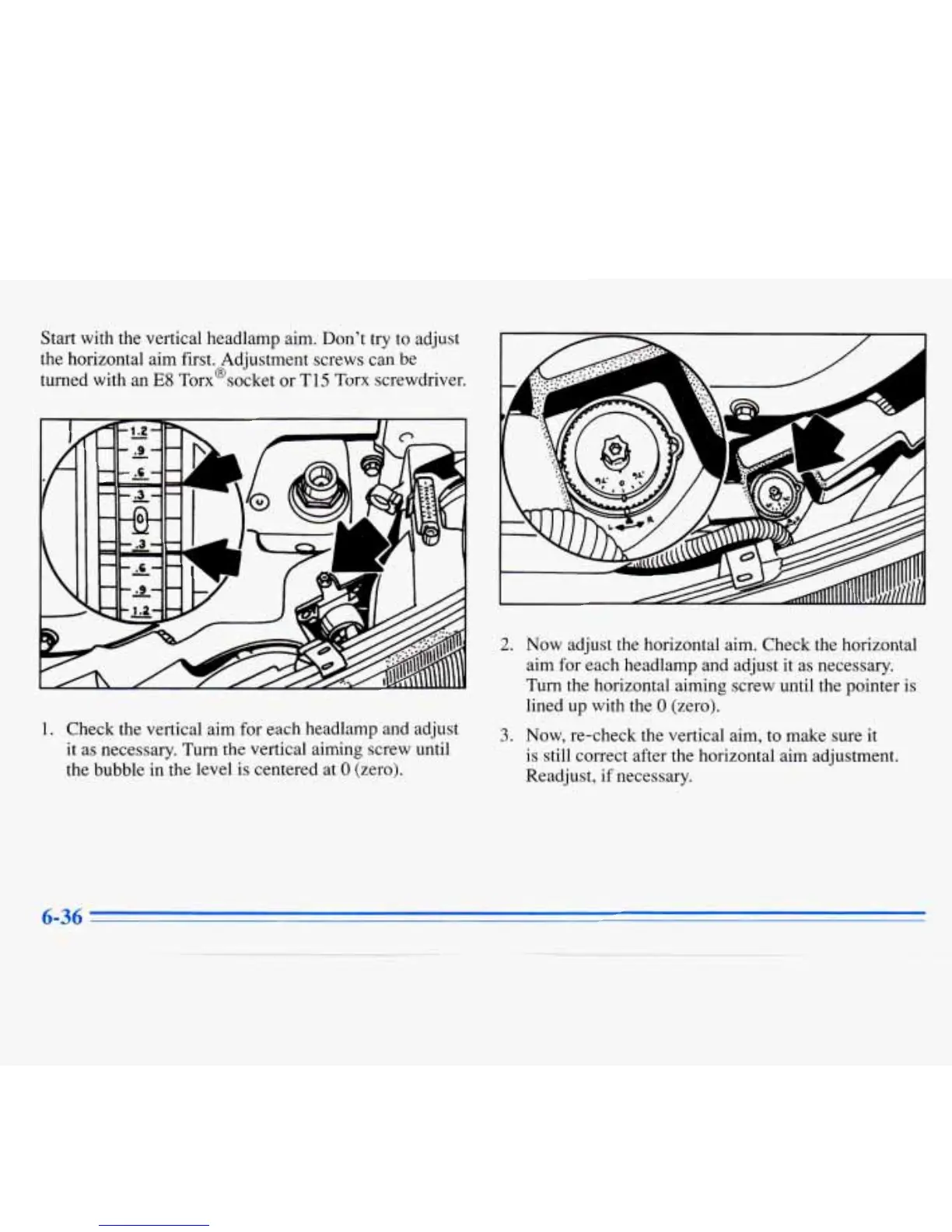

Start with the vertical headlamp aim. Don't try to adjust
the horizontal aim first. Adjustment screws can be
turned with an
E8 Torx@socket
or
T15
Torx screwdriver.
1. Check the vertical aim for each headlamp and adjust
it as necessary.
Turn
the vertical aiming screw until
the bubble in the level is centered at
0
(zero).
2.
Now
adjust the horizontal aim. Check the horizontal
aim for each headlamp and adjust
it
as necessary.
Turn
the horizontal aiming screw until the pointer is
lined up with the
0
(zero).
is still correct after the horizontal aim adjustment.
Readjust, if necessary.
3.
Now,
re-check the vertical aim, to make sure
it
