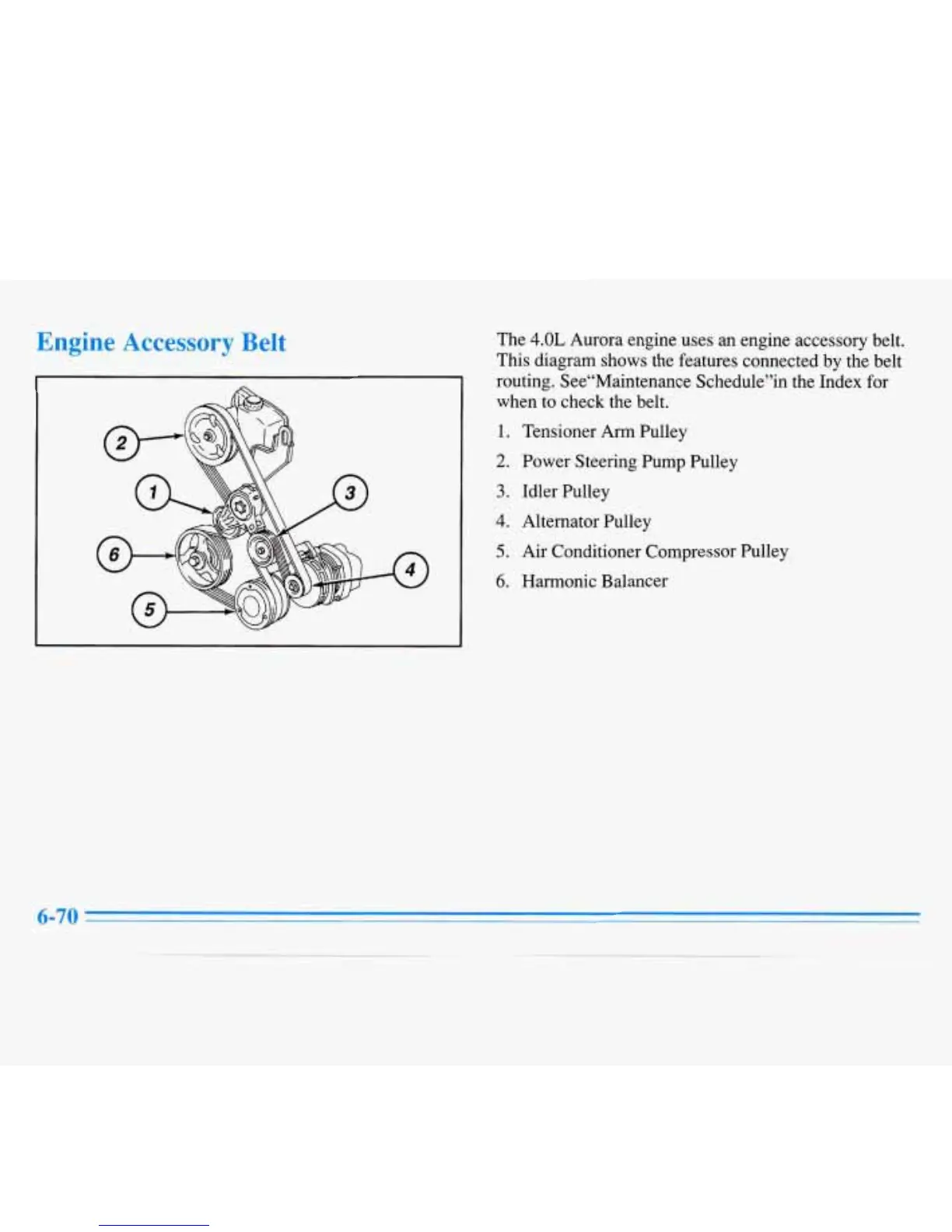

Engine Accessory Belt
The 4.0L Aurora engine uses an engine accessory belt.
This diagram shows the features connected
by the belt
routing. See"Maintenance Schedu1e"in the Index for
when to check the belt.
1.
2.
3.
4.
5.
6.
Tensioner Arm Pulley
Power Steering Pump Pulley
Idler Pulley
Alternator Pulley
Air Conditioner Compressor Pulley
Harmonic Balancer
