Page 44
DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE

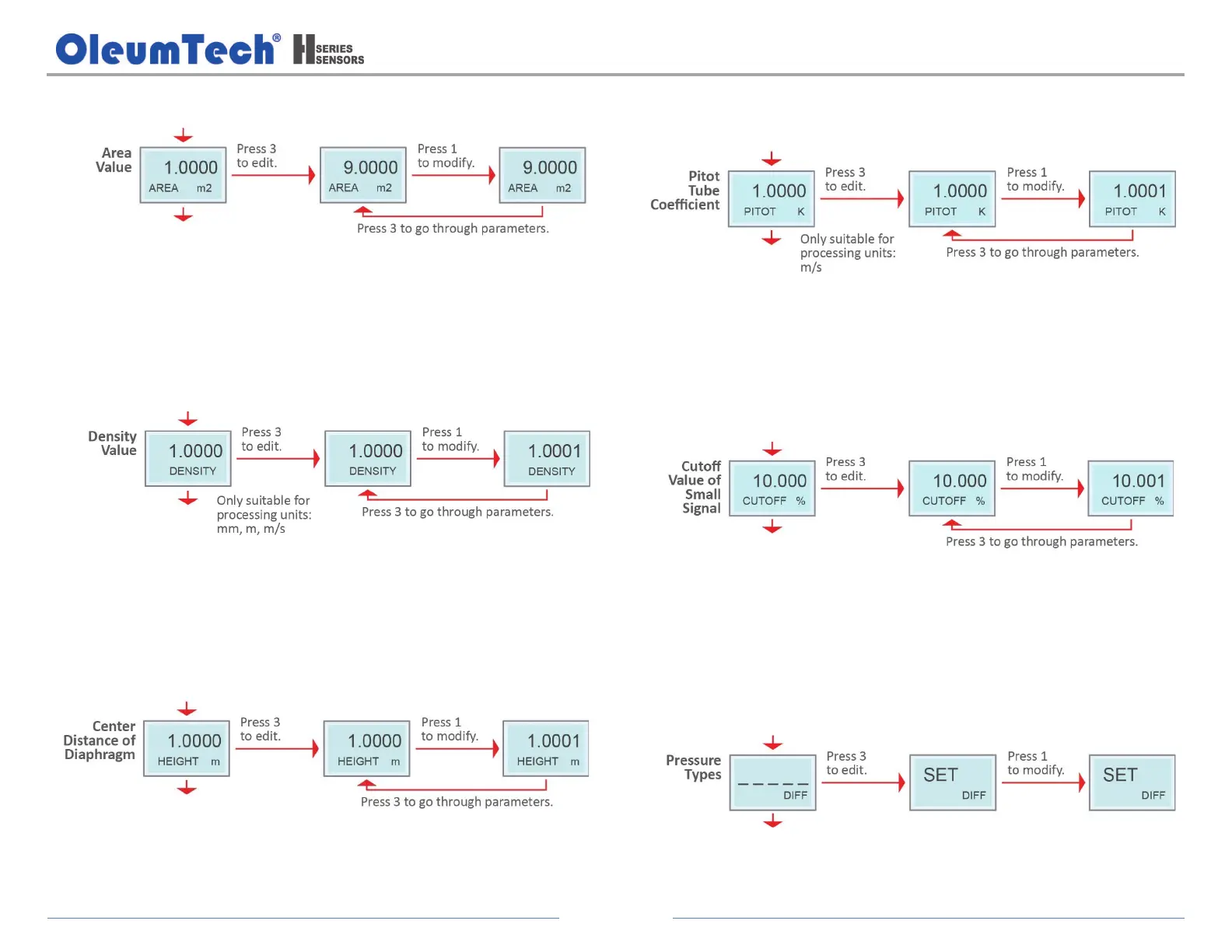

e. Configure the Area Value.
Gallon = AREA*(HEIGHT+P/ρ/G)
P=PV, ρ=Density, G=Gravity constant
Default: Area: 1; Density: 1; Height: 0
f. Configure the Density Value.
Density correction for level measurement
Default Density: 1
g. Configure the Center Distance of Diaphragm (only suitable for
processing unit: g/cm
3
).
Used for both temperature and volume calculations.
HEIGHT: Initial deviation height
Default Height: 0
h. Configure the Pitot Tube Coefficient (only suitable for processing
unit: m/s).
Range: 0.0001 to 99999
Default: 1
i. Configure the Cutoff Value of Small Signal.
Used for zero deviation signal cut to 0 as a percentage of full scale.
Range: 0 to 100
Default: 0
j. Configure the Pressure Type.
Use the DIFFERENTIAL mode.
