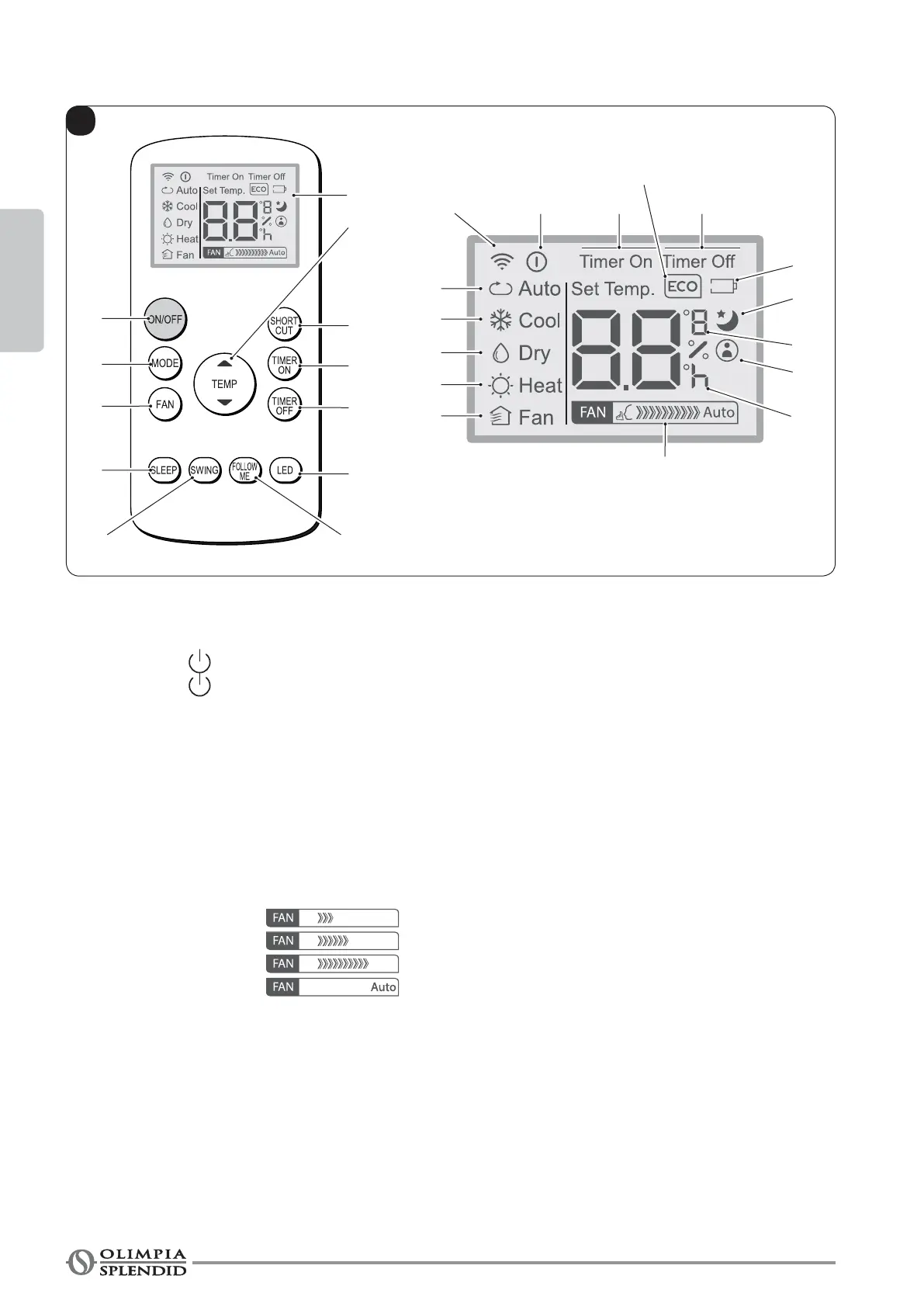

3.2 - REMOTE CONTROL KEYS (Fig. C)
B1: On/Off key for the appliance switching on/
off
- Symbol
(D1) turned on: appliance On
- Symbol (D2) turned off: appliance in
Stand-by
B2: Operation mode selection
B3: Fan speed selection
Minimum speed
Maximum speed
B4: SLEEP mode activation (ON/OFF)
B5: DISABLED
B6: Activate/deactivate FOLLOW ME function
B7: Activate/deactivate display on machine
control panel
B8: Unit switch OFF delay setting
B9: Unit programmed switch-on setting
B10: SHORT CUT
B11
B12: Display
D1: Appliance running indicator
D2: Automatic mode (ECO)
D3: Cooling mode (COOL)
D4
D5: Heating mode (HEAT) (active only in the
version with heat pump)
D6: Fan only mode (FAN)
D7: Fan speed indication (vederte “B3”)
D8: Programmed switching on/off “hour” indicator
D9: “FOLLOW ME” function active indicator
D10: Temperature indicator in °C (F)
D11: “SLEEP” function active indicator
D12: Remote control battery low indicator
D13: “TIME OFF” function active indicator
D14: “TIME ON” function active indicator
D15: “ECO” function active indicator
D16: Remote control transmission signal
