CKX41/CKX31
ASSEMBLY

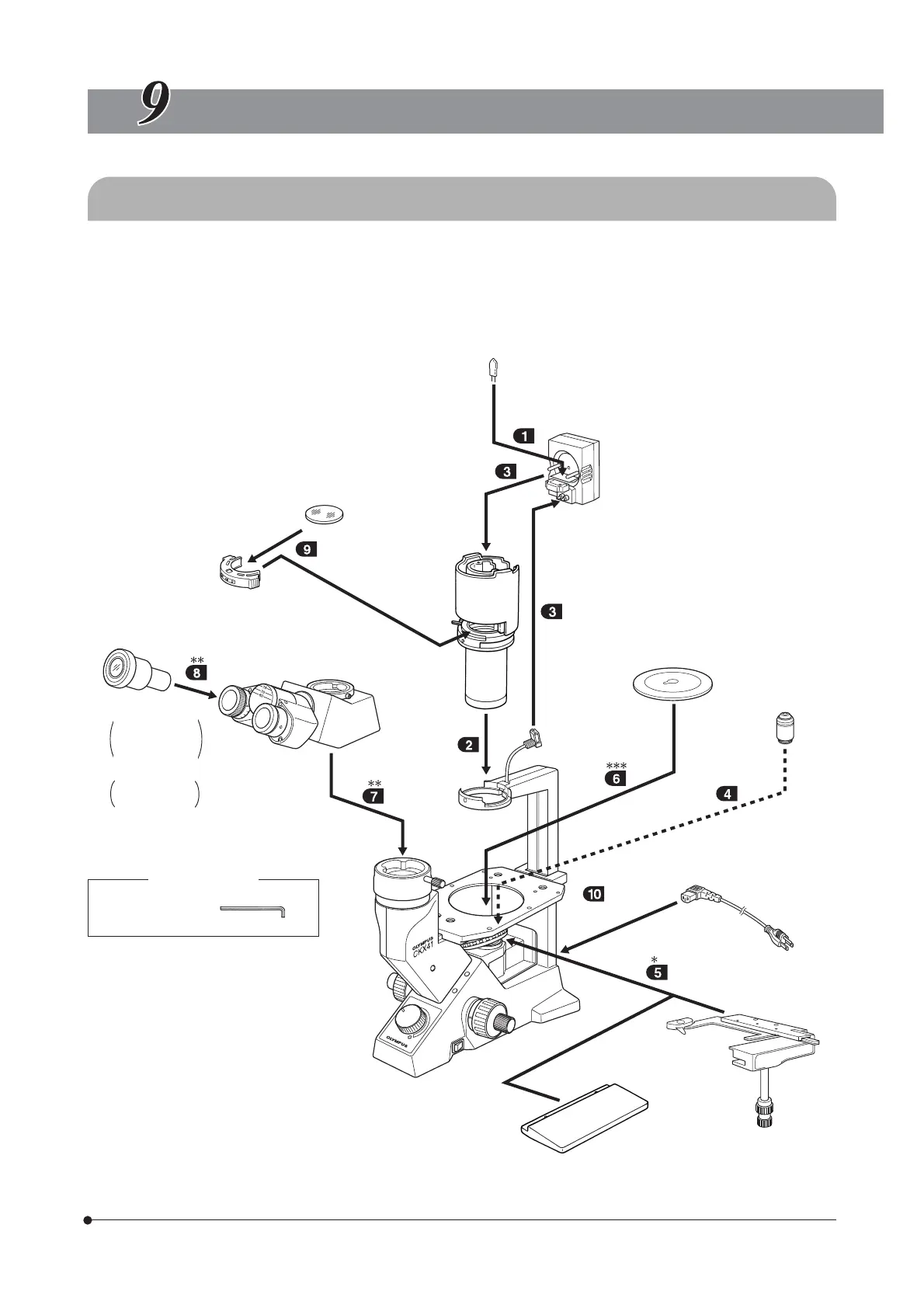

9-1 Assembly Diagram
The diagram below shows the sequence of assembly of the various modules. The numbers indicate the order of assembly.
# When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts
or touching glass surfaces.
# Keep the provided Allen wrench on hand. You will need it when replacing the modules.
Filter
Allen wrench
Required tool
*
The CK40-MVR or CK2-SS can also
be mounted on the left side. How-
ever, the mechanical stage cannot
be amounted in the same position
as the stage extension plate.
**
The CKX31 has a fixed binocular
tube and uses the provided eye-
pieces.
***
The CKX31 does not use the stage
center plate.
****
The U-CTBI has built-in eyepieces.
Filter holder
Transmitted light
illuminator
Observation tube
· U-CBI30-2
· U-BI30-2
· U-CTR30-2
· U-TR30-2
· U-CTBI
****
· CKX-TBI
High-intensity
halogen bulb
6V30WHAL
Lamp socket
U-LS30-3
Stage center plate
· Standard stage center plate
· CK40-CPG
· IX-CP50
Objective
Power cord
Microscope frame
· CKX31SF
· CKX41SF
Mechanical stage
CK40-MVR
Stage extension plate
CK2-SS
Eyepieces
· WHB10X
For U-CBI30-2,
For U-CTR30-2
For CKX-TBI
· WHN10X
· WHN10X-H
For U-BI30-2,
For U-TR30-2,
To Next Page
