Removing the Blade Frames (Continued)
NOTE
NEVER LOOSEN THE NUTS ON THE ECCENTRIC PINS OR ATTEMPT
TO REMOVE THEM TO AID IN REMOVING THE BLADE FRAMES.

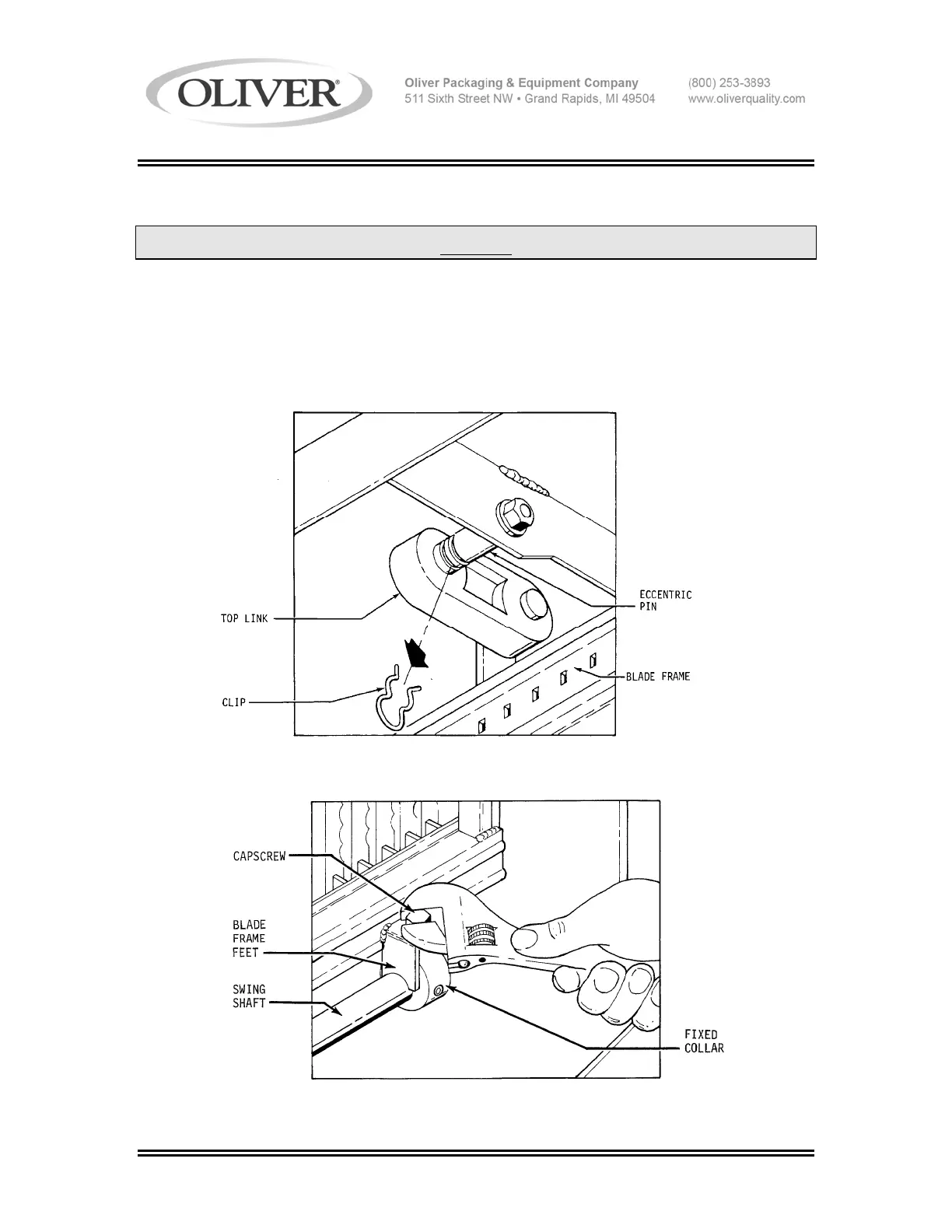

Start by pulling the hairpin clip from the eccentric pin, located at the top of each blade
frame, see illustration below, then slide the top link toward the eccentric pin’s mounting
plate. Make sure that the link is forced all the way over to the plate.
Use a wrench to loosen and remove the two capscrews, which fasten the blade frame to
the rocker’s swing shaft. See illustration below.
