Olivetti MB-2 - Location of Main Components

1-4 Service Manual
Y112890-3

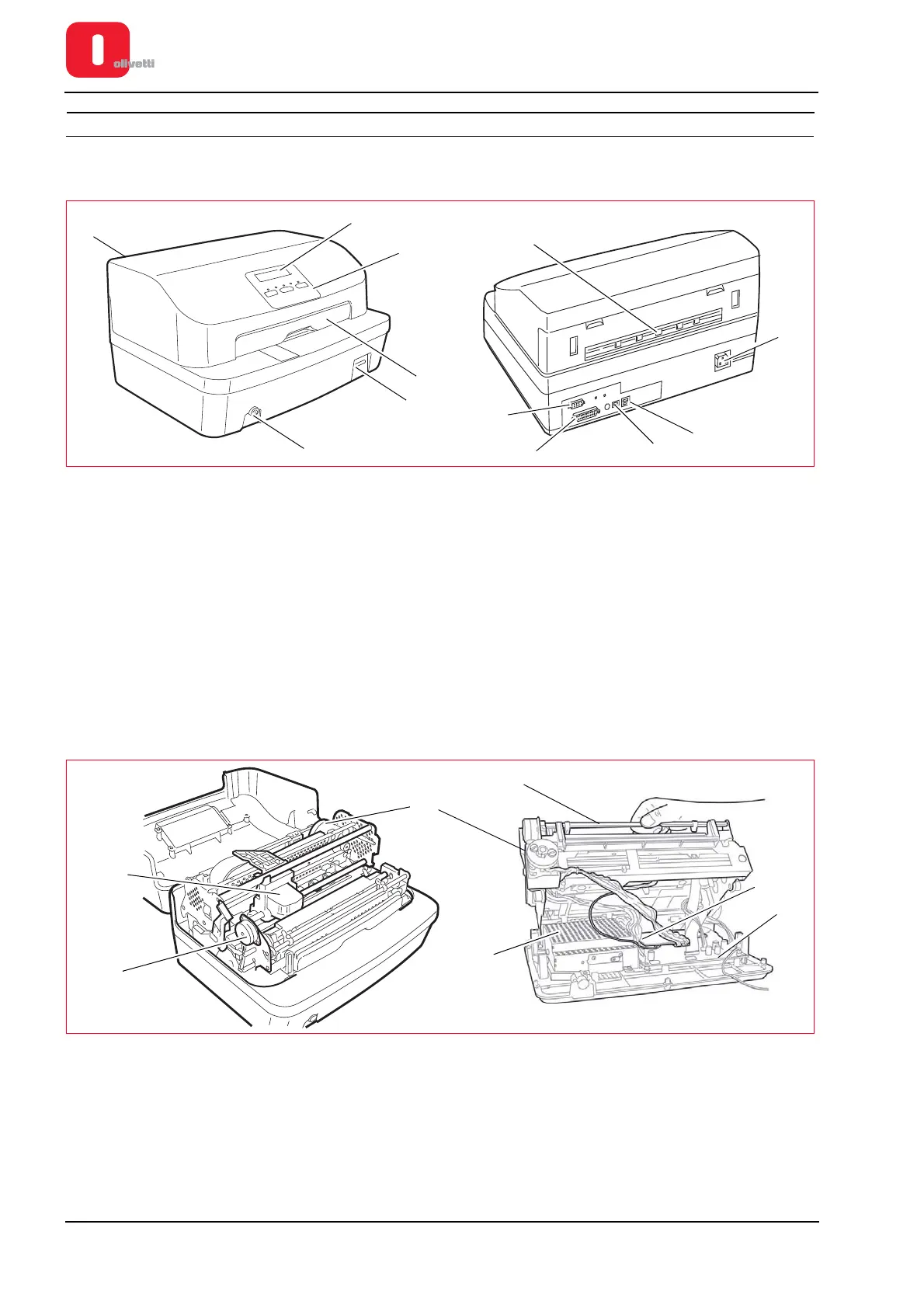

LOCATION OF MAIN COMPONENTS
The following figure illustrates the main external components of the printer.
Figure 1 - 2 Location of main external components
The following figure illustrates the main internal components of the printer.
Figure 1 - 3 Position of main internal components
1 Cover 7 USB interface connector
2 Display 8 Parallel interface connector
3 Console 9 Standard serial interface connector
4 Rear slot 10 Front slot
5 Mains connector cable 11 USB HUB connector (front)
6 USB HUB connectors (2 connectors) 12 ON/OFF switch
1 Printhead 5 Motherboard
2 Carriage transport motor 6 Power supply unit
3 Upper part of mechanical assembly 7 Services motor
4 Magnetic options board
1
2
3
4
5
6
8
9
10
12
11
7
1
2
3
4
5
6
7
View without casing
