Y112890-3 Service Manual
1-11
CONSOLE
The console comprises 3 keys, 5 LEDs and a display. For the meanings of the LEDs and keys, refer to the section
“Console keys and LEDs” on page 3 - 2.
A magnetic switch (Dry-reed) signals to the motherboard when the upper cover of the printer is opened.

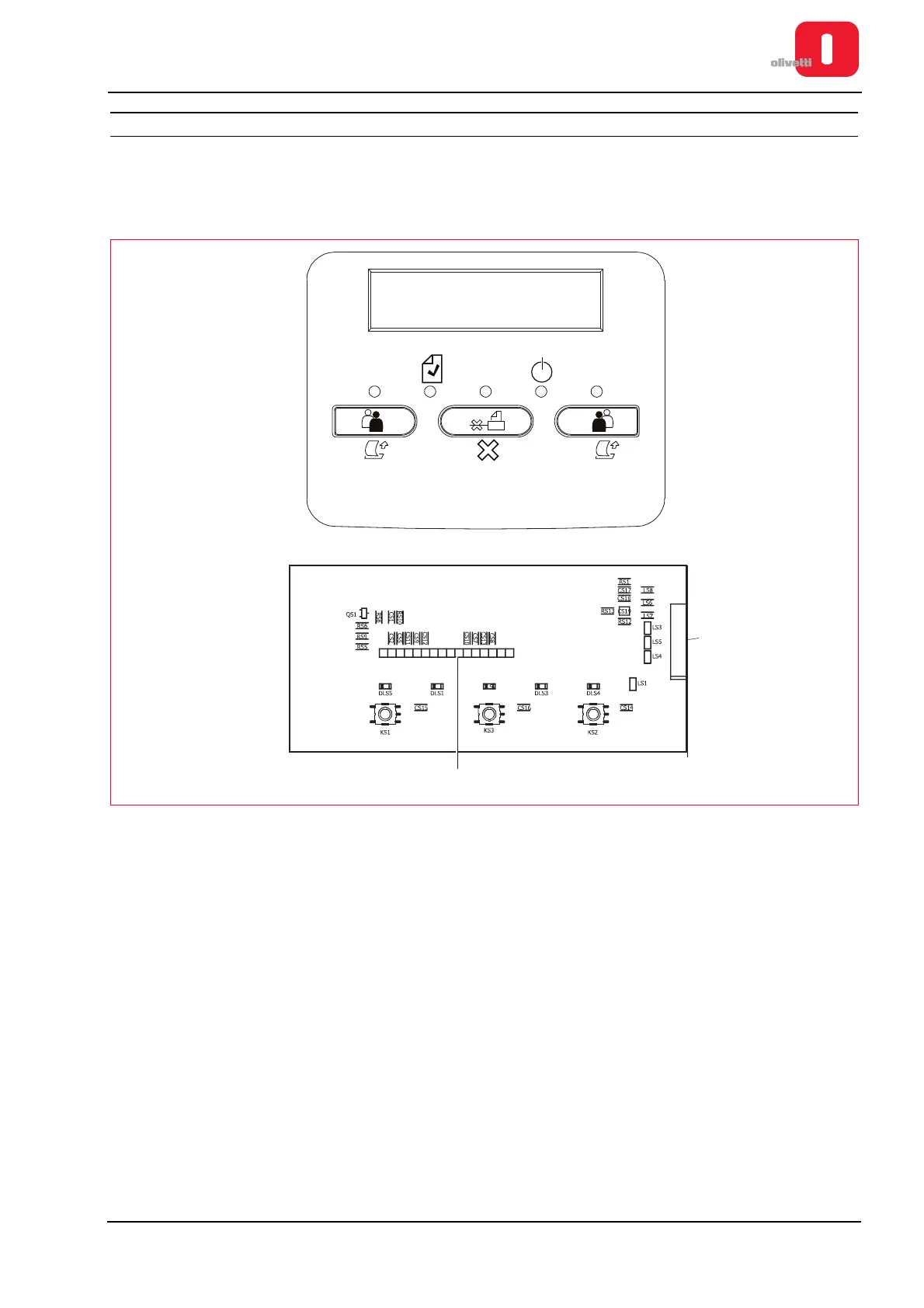

Figure 1 - 9 Console
1
Flat cable connector of the console for
connection to the motherboard
2 Connector for alphanumerical display
1
2
2
1
MB - 2
