Olivetti OFX9700 - Terminal Description

OFX 9700
- 8 -
2 - Installation

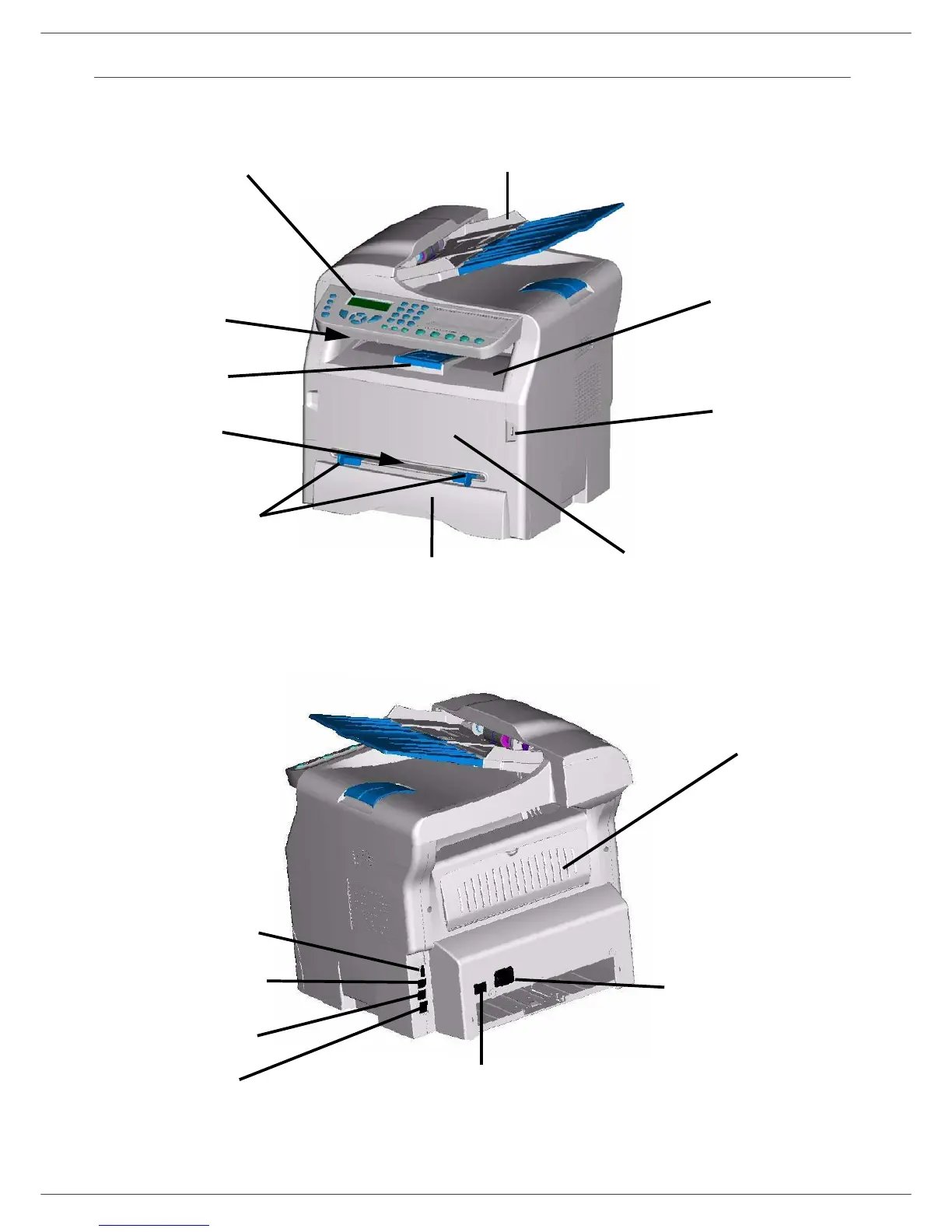

Terminal description
Front side
Back side
Document feeder
Commands panel
Paper output
Manual
Paper tray
Master USB
Cartridge access cover
Manual paper feed
setup guides
input tray
(USB key)
Smart card
insertion point
Fold-down stop
for paper
delivery
connection
Slave USB
connection (for PC)
On/Off switch
Power supply cord
connection
Paper jam cover
Additional telephone
cable socket
Master USB
connection (USB key)
Telephone cable
socket
