2 - Installation
Command panel
S C AN
F A X
C O P Y
S M S
S T O P
P
R I N T
E C O
ABC
GHI
PQRS
WXYZ
TUV
JKL
MNO
DEF
12
3
4
5
6
7
11
1210
16171819202122
89
1315
14
24
25
26
33
32
31
30
29
28
27

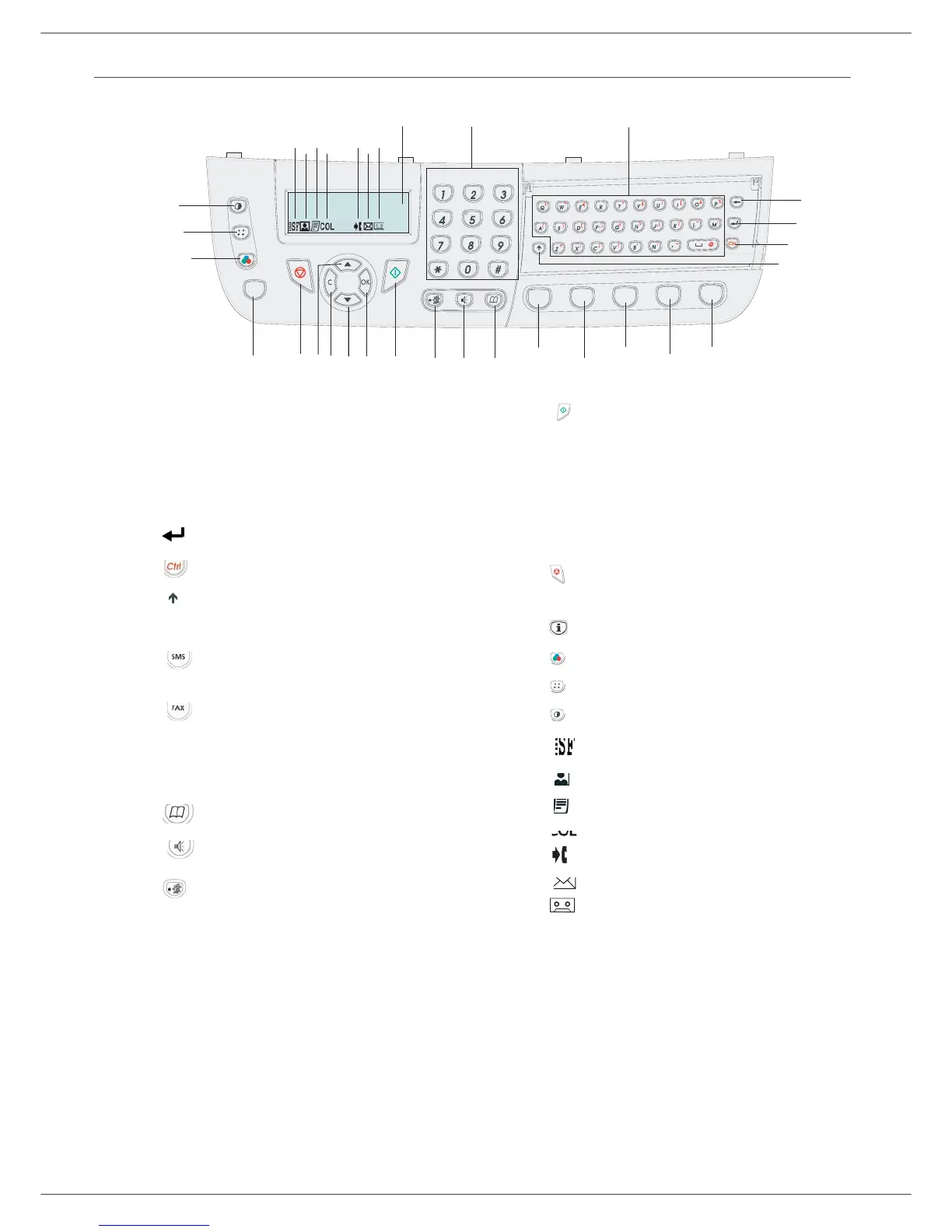

1. Screen.
2. Digital keypad.
3. Alphabetical keypad.
4. Key
Í : deletes the character to the left of the
cursor.
5. Key : input or line feed.
6. Key : access to special characters.
7. Key
: Shift.
8. Key COPY: local copy.
9. Key : sending of an SMS (Short Message
Service).
10. Key : sending of a fax.
11. Key SCAN: document analysis to a PC or a media
(USB key).
12. Key STOP PRINT: stops the current PC printing.
13. Key :
access to directory and quick dial numbers.
14. Key : line manual connection, listen for tone
during fax sending.
15. Key : multiple contact sending (fax, e-mail or
SMS).
16. Key : Validation.
17. Key OK: confirms the displayed selection.
18. Key : menu access and navigation down the
menus.
19. Key C: back to the previous menu and input
correction.
20. Key : navigation up the menus.
21. Key : stops the current operation.
22. Key ECO: sets up the activation delay.
23. Key : prints the functions list.
24. Key : color analysis mode selection.
25. Key : analysis resolution setup.
26. Key : contrast setup.
27. Icon : SuperFine resolution.
28. Icon : Photo resolution.
29. Icon : Fine resolution.
30. Icon : colour mode.
31. Icon : activity on the telephone line.
32. Icon : Fax mode.
33. Icon : external answering machine mode.
