TABLE 1 - FURNACE DIMENSIONS
Model Width A Depth B
Height
C
Vent H
Supply Air
(F x G)
60 16⅞” 29” 40” 2” 15⅞” x 20”
80 18½” 29” 40” 2” 17½” x 20”
100 20½” 29” 40” 2” 19½” x 20”
120 23½” 29” 40” 2” 22½” x 20”
2 FURNACE DIMENSIONS AND CLEARANCE TO COMBUSTIBLES

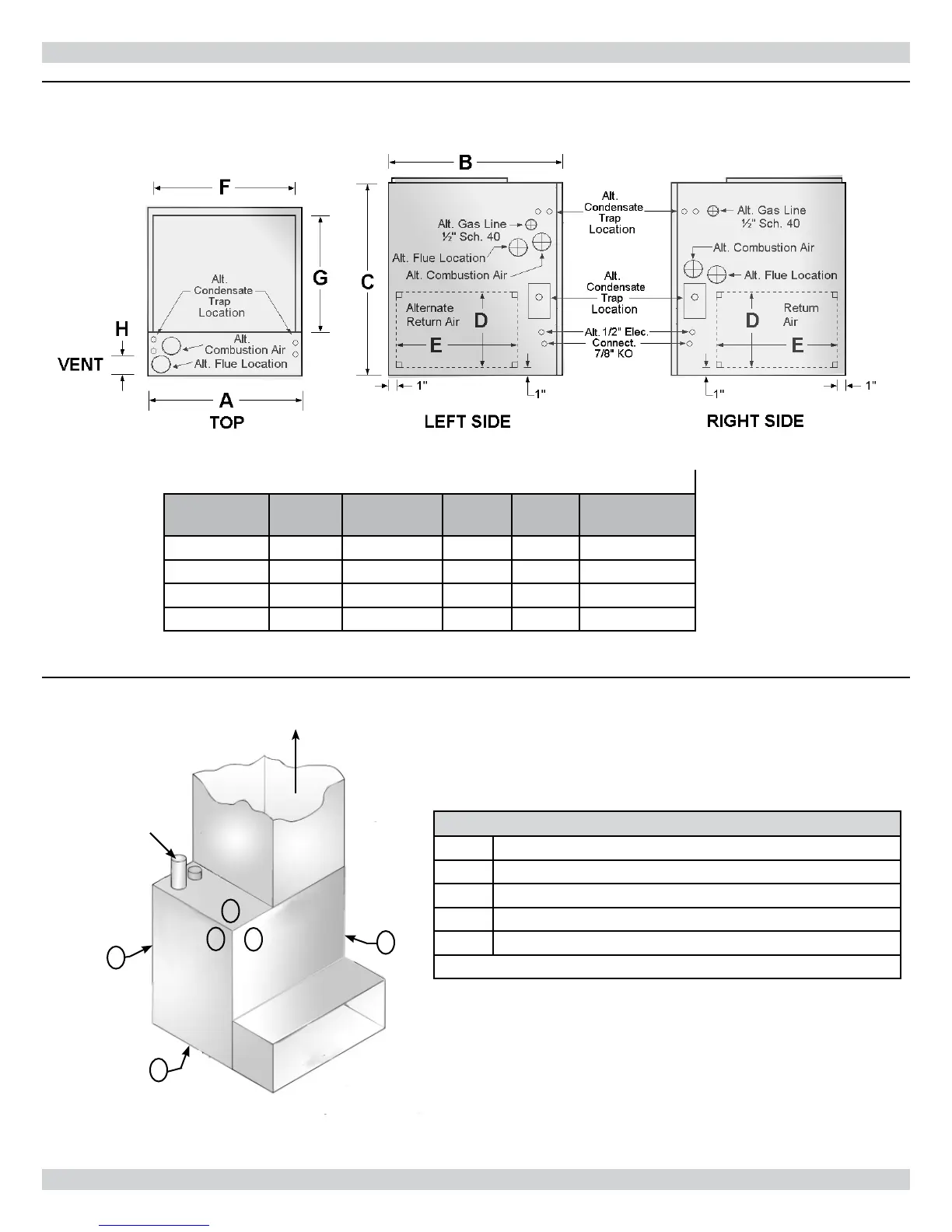

Figure 1 - Furnace Dimensions
D
FRONT
SIDES
B
A
C
C
C
FILTER
VENT
D
AIRFLOW
Table 2 - FURNACE CLEARANCE TO COMBUSTIBLES
SIDE Distance
A 1" or Non-Combustible Floor
B 0", Service Clearance 24” or more
C0"
D Combustible Floor (must not be placed on carpet non-ceramic tile)
All models are approved for closet installation
For downfl ow installations use optional sub-
base kit 550001346
Figure 2 - Clearance To Combustibles
6
