BX-RLAA
16

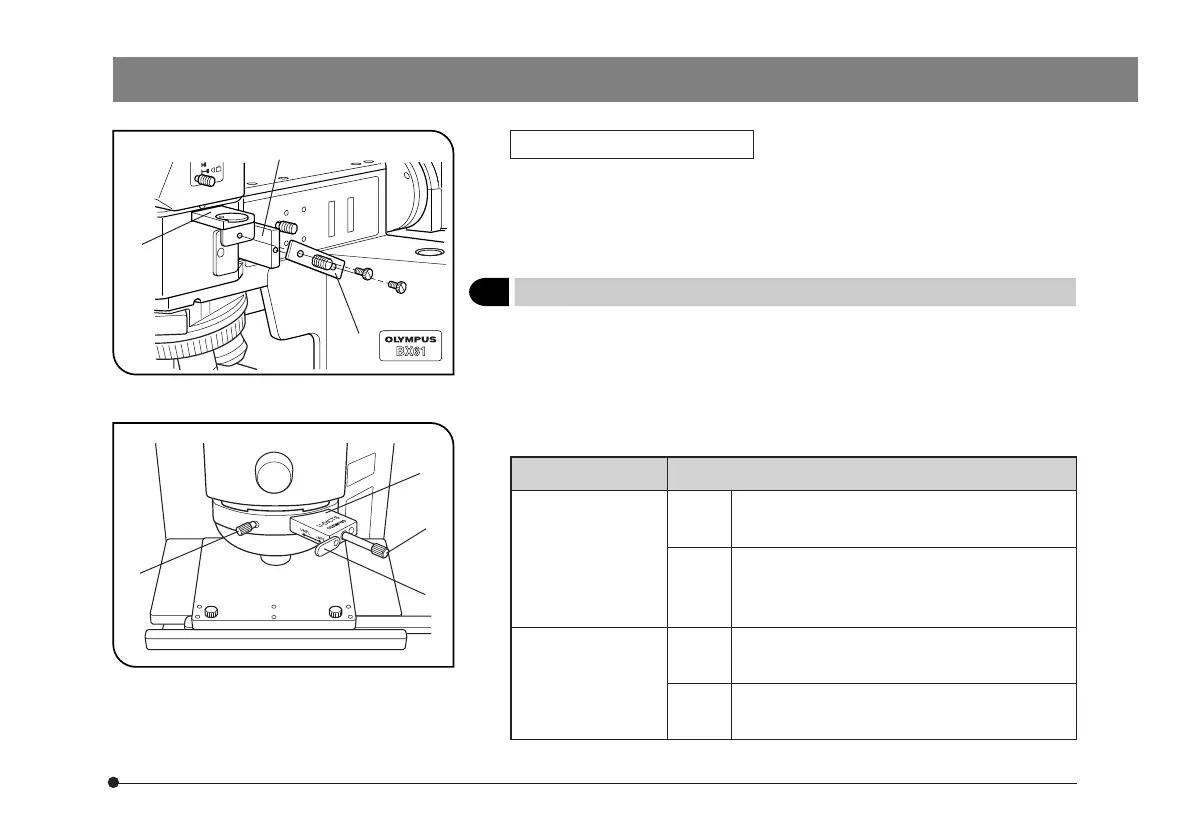

Using the Joint Plate (Fig. 12)
When the U-AN360-3 analyzer ƒ and U-PO3 or U-POTP3 polarizer … are
coupled by using the joint plate | provided with the polarizer and tighten-
ing the clamping knobs on it, the analyzer and polarizer can be engaged
or disengaged in the light path together.
2 Setting the DIC Slider
(Fig. 13)
1. Loosen the mounting knob @ on the front of the DIC revolving nosepiece,
insert the DIC slider ² so that the surface with indication faces up, and
clamp by tightening the mounting knob.
2. With the U-DICR interference slider, set the slide lever ³ according to the
objective in use.
Fig. 12
Fig. 13
|
ƒ
…
@
²
|
³
Lever ³ position Applicable Objectives
Pushed in
UIS2
MPLFLN/MPLFLN-BD series
MPLAPON series
UIS
UMPlanFl/UMPlanFl-BD series
MPlanApo20X, 100X
MPlanApo100XBD
Pulled out
UIS2
LMPLFLN/LMPLFLN-BD series
UIS LMPlanFl/LMPlanFl-BD series
LMPlanApo/LMPlanApo-BD series
