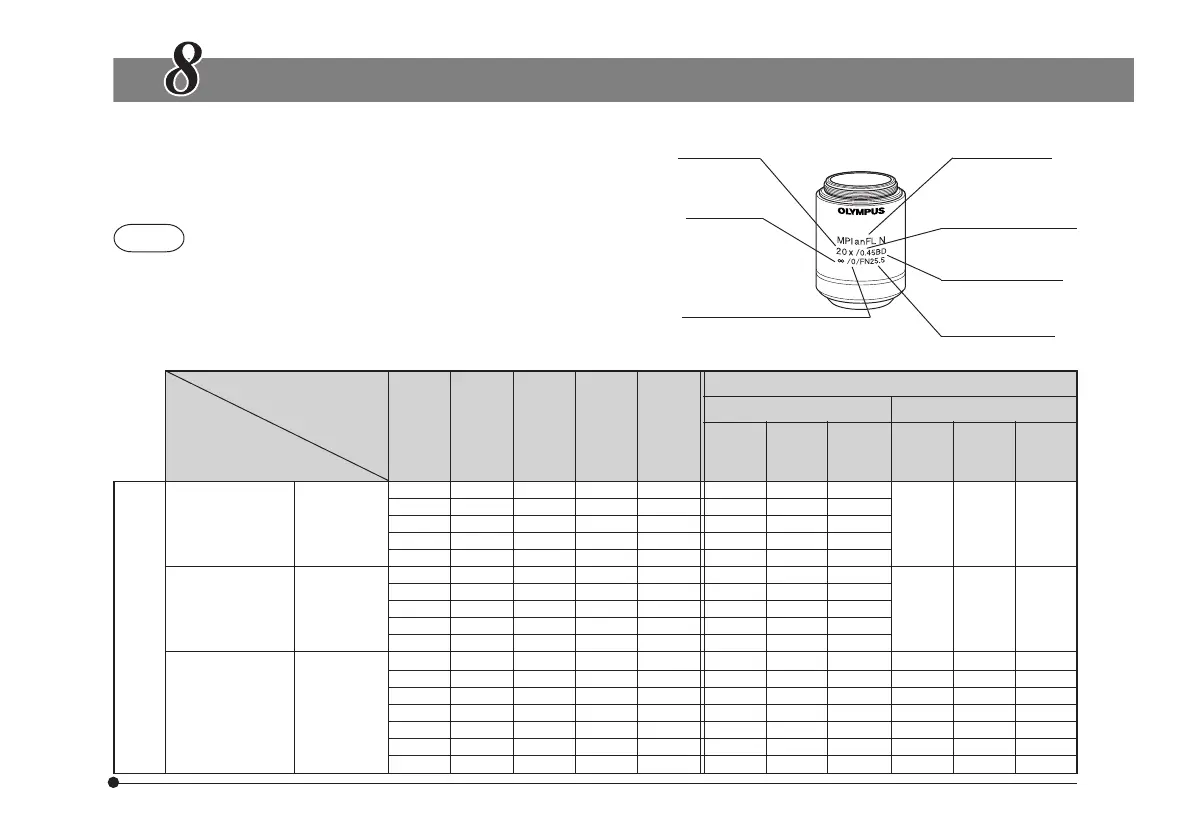

The table below shows the optical characteristics of different eyepiece
and objective combinations. Objective specifications are marked on
the objective (as shown in the diagram on the right).
NOTE
Refer to the latest catalogue or consult Olympus for the updated infor-
mation on the eyepieces and objectives that can be combined with
this unit.
Magnification
UIS marking
Cover glass thickness
—: May be used with our with-
out a cover glass.
0: Used without a cover glass.
OPTICAL CHARACTERISTICS «UIS2 Series»
-- The UIS series objectives that are not mentioned below can also be mounted on this microscope. --
FN (Field Number)
Objective series
(PL = Plan)
NA (Number of Aperture)
Brightfield/darkfield
application
Optical
characteristics
Magnifi-
cation
N.A.
W.D.
(mm)
Cover
glass
thick
ness
(mm)
Resolu-
tion
(μm)
Eyepieces
Series
WHN10X (FN22)
SWH10X (FN26.5)
Total
mag.
Depth
of focus
(μm)
Field
of view
(mm)
Total
mag.
Depth
of focus
(μm)
Field
of view
(mm)
MPLN
Plan
Achromat
(FN22)
MPLN-BD
Brightfield/
darkfield
Plan Achromat
(FN22)
5X 0.10 20.0 — 3.36 50X 98 4.4
10X 0.25 10.6 — 1.34 100X 18 2.2
20X 0.40 1.3 0 0.84 200X 6.1 1.1 — — —
50X 0.75 0.38 0 0.45 500X 1.4 0.44
100X 0.90 0.21 0 0.37 1000X 0.73 0.22
5X 0.10 12.0 — 3.36 50X 98 4.4
10X 0.25 6.5 — 1.34 100X 18 2.2
20X 0.40 1.3 0 0.84 200X 6.1 1.1 — — —
50X 0.75 0.38 0 0.45 500X 1.4 0.44
100X 0.90 0.21 0 0.37 1000X 0.73 0.22
Marking
MPlanN
MPlanN-BD
UIS2
series
MPLFLN
Plan Semi-
Apochromat
(FN26.5)
*1.25X:FN22
1.25X 0.04 3.5 — 8.39 12.5X 870 17.6 — — —
2.5X 0.08 10.7 — 4.19 25X 220 8.8 25X 220 10.6
5X 0.15 20.0 — 2.24 50X 59 4.4 50X 59 5.3
10X 0.30 11.0 — 1.12 100X 15 2.2 100X 15 2.65
20X 0.45 3.1 0 0.75 200X 5.2 1.1 200X 5.2 1.33
50X 0.80 1.0 0 0.42 500X 1.3 0.44 500X 1.3 0.53
100X 0.90 1.0 0 0.37 1000X 0.73 0.22 1000X 0.73 0.27
MPlanFLN
