Olympus BX-UCB - System Assembly; Assembly Diagram

9
ASSEMBLY

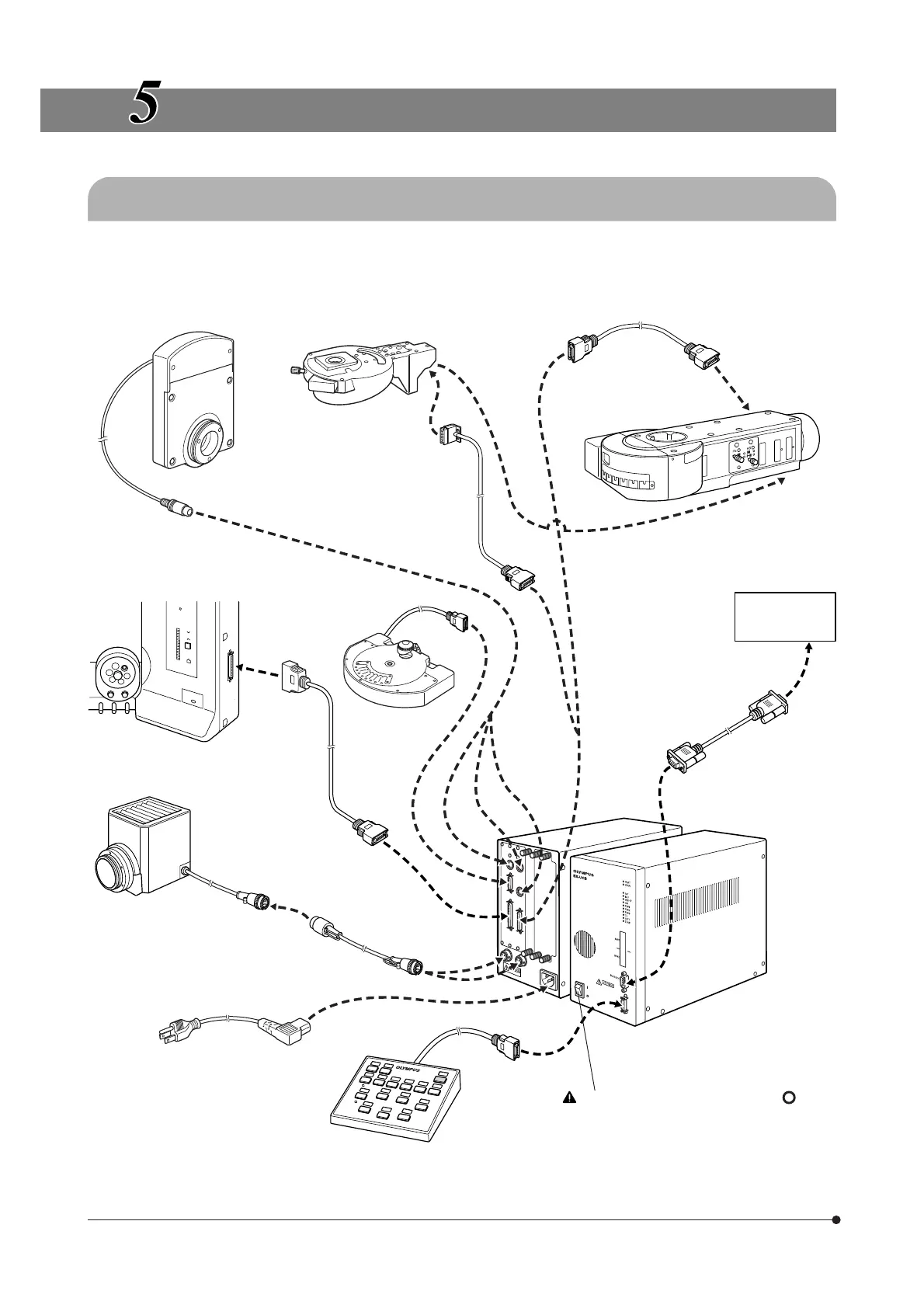

5-1 Assembly Diagram
Filter wheel
U-FWO
U-FWR
U-FWT
#The U-UCD8A and BX-RLAA cannot be used simultaneously. If both modules are used together, malfunction will
result. Do not connect unused modules to the control box.
Motorized revolving nosepiece
U-D6REM
U-D5BDREM
U-D6REMC
U-D6BDREMC
U-D5BDREMC
U-P5REMC
U-P5BDREMC
Microscope frame
BX61TRF
BX62TRF
Connection cable
U-REMMT
Motorized universal
condenser
U-UCD8A#
Connection cable
100 W halogen lamp housing
U-LH100-3
Extension cord
U-RMT
Rear panel
Hand Switch
U-HSTR2
Power cord
Connection cable
Vertical illuminator
BX-RFAA
BX-RLAA#
P C
RS232C cable
Control Box
BX-UCB
Be sure to set the main switch to “ ” (OFF)
before connecting cables.
