4
BX-UCB/U-HSTR2

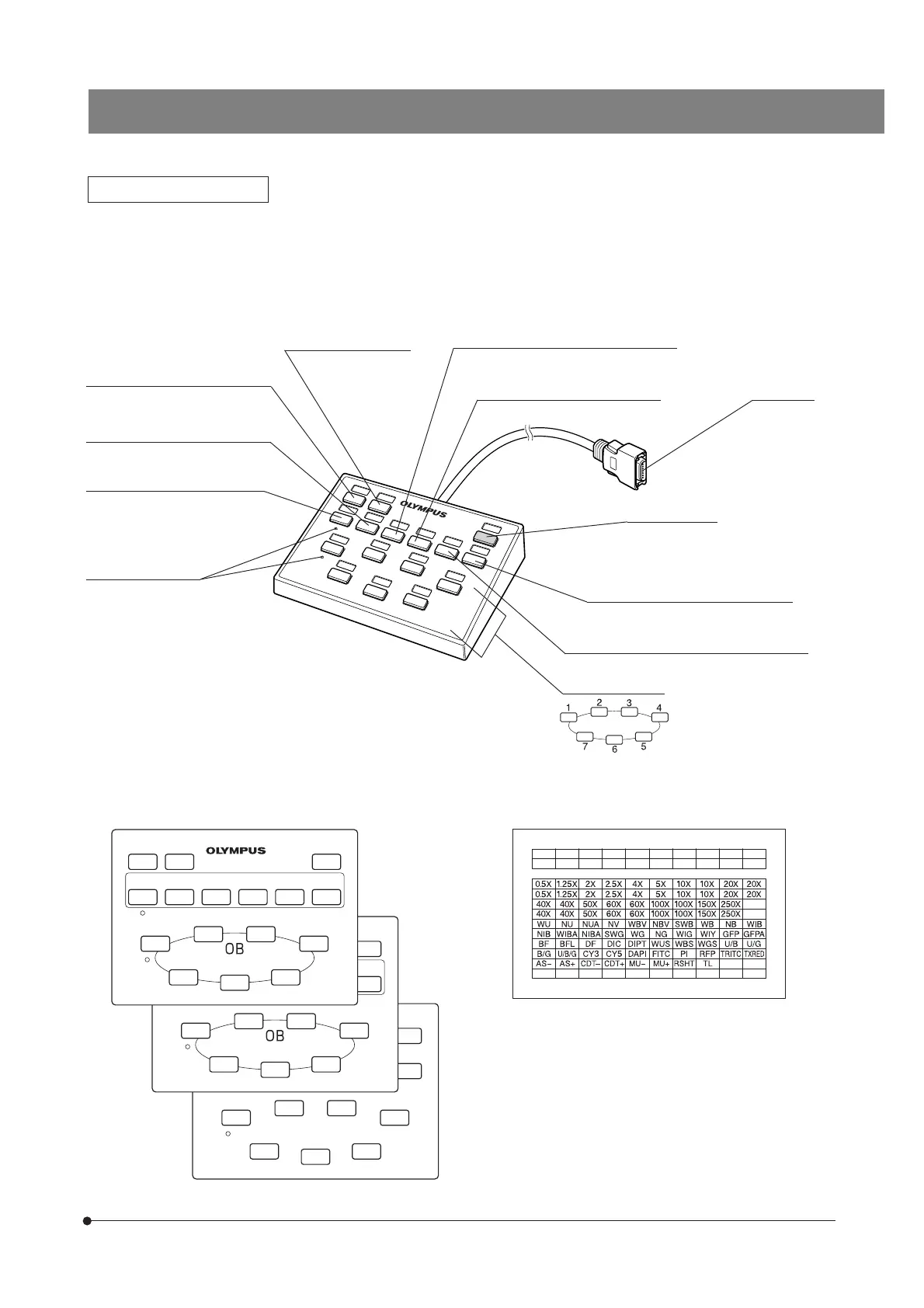

Hand Switch U-HSTR2
}The functions of the buttons on this hand switch are variable depending on whether the attached vertical illuminator is the BX-
RFAA (on the upper stage) or the BX-RLAA (on the lower stage).
The button functions can be set arbitrarily when the PC control (remote control) is used.
}Above each button, attach the indication sticker corresponding to the function set for the button.
· TL (Top Lens) button
· DF (Darkfield) button
Grouping Panel Sheets (3 types) Indication Stickers
· RSHT (Shutter) button
· BF (Brightfield) button
AS - (Aperture iris diaphragm
close) button
AS + (Aperture iris diaphragm
open) button
Projections for blind
touch operations
Connector
Reserve button
· CDT - (Turret counterclockwise) button
· —
Objective buttons
· CDT + (Turret clockwise) button
· —
· MU + (Mirror Unit clockwise) button
· —
· MU - (Mirror Unit counterclockwise) button
· —
