Fig. 39
1
2

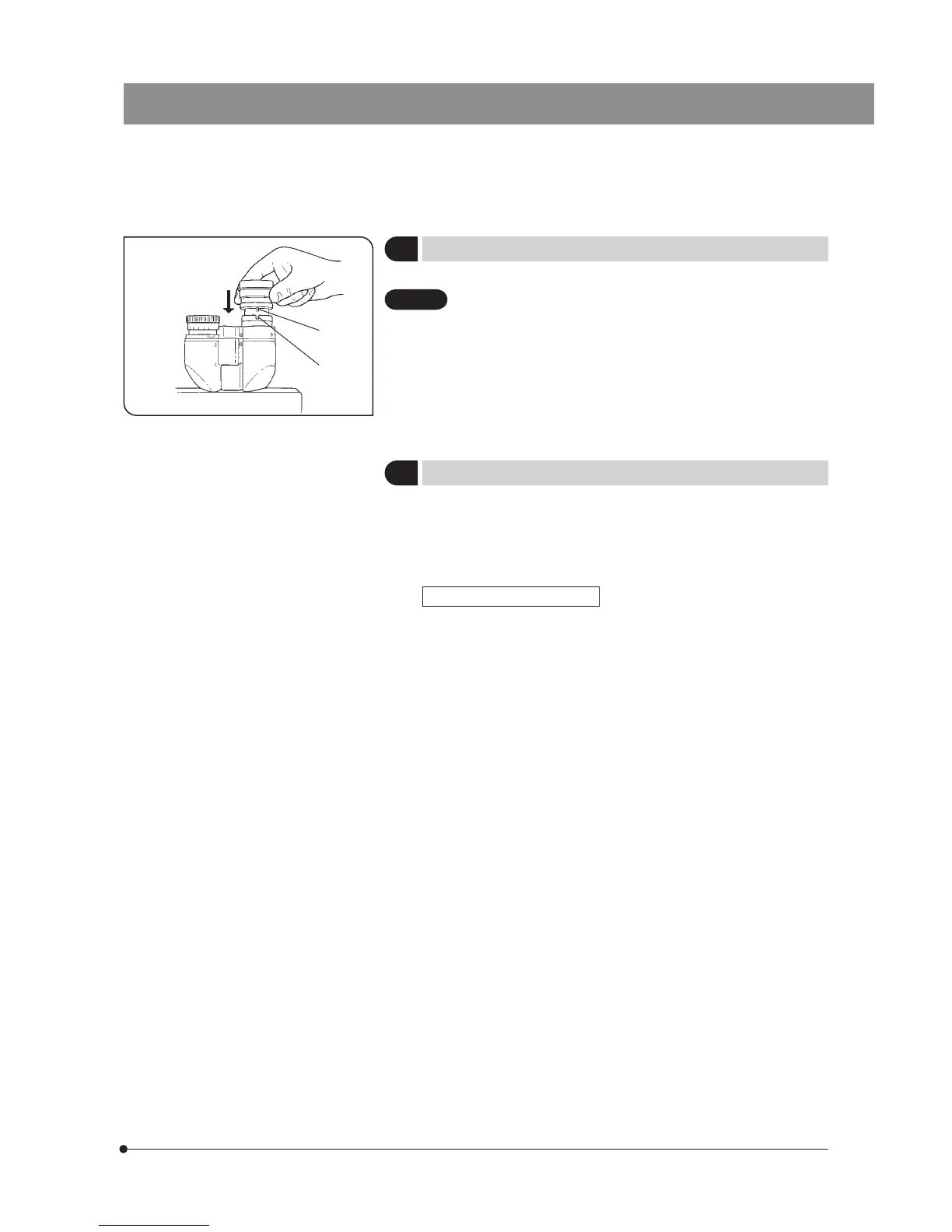

6 Attaching the Eyepieces
(Fig. 39)
Gently insert the eyepieces all the way into the eyepiece sleeves.
· When using the U-BI30-2 binocular tube, eyepieces with a po-
sitioning pin cannot be attached because the U-BI30-2 does
not have the positioning notch.
· When using an eyepiece with micrometer or cross lines, attach
it to the right-hand eyepiece sleeve.
When doing so, make sure that the eyepiece positioning pin @
fits into the notch 2 on the eyepiece sleeve.
7 Attaching the Objectives
Screw in the objectives into the holes of revolving nosepiece by following
the position number, beginning with the lowest-power objective toward
higher-power objectives.
} If you want to observe images of 10X and 40X objectives alternately, attach
them side by side.
Revolving Nosepiece Cable
The revolving nosepiece cable is led out of the microscope’s rear panel.
Connect it to the connector on the rear panel.
CAUTION
