Olympus BX53M-P - 4 USING THE CONTROLS; Stage Operation

BX53/BX53M-P
12
1

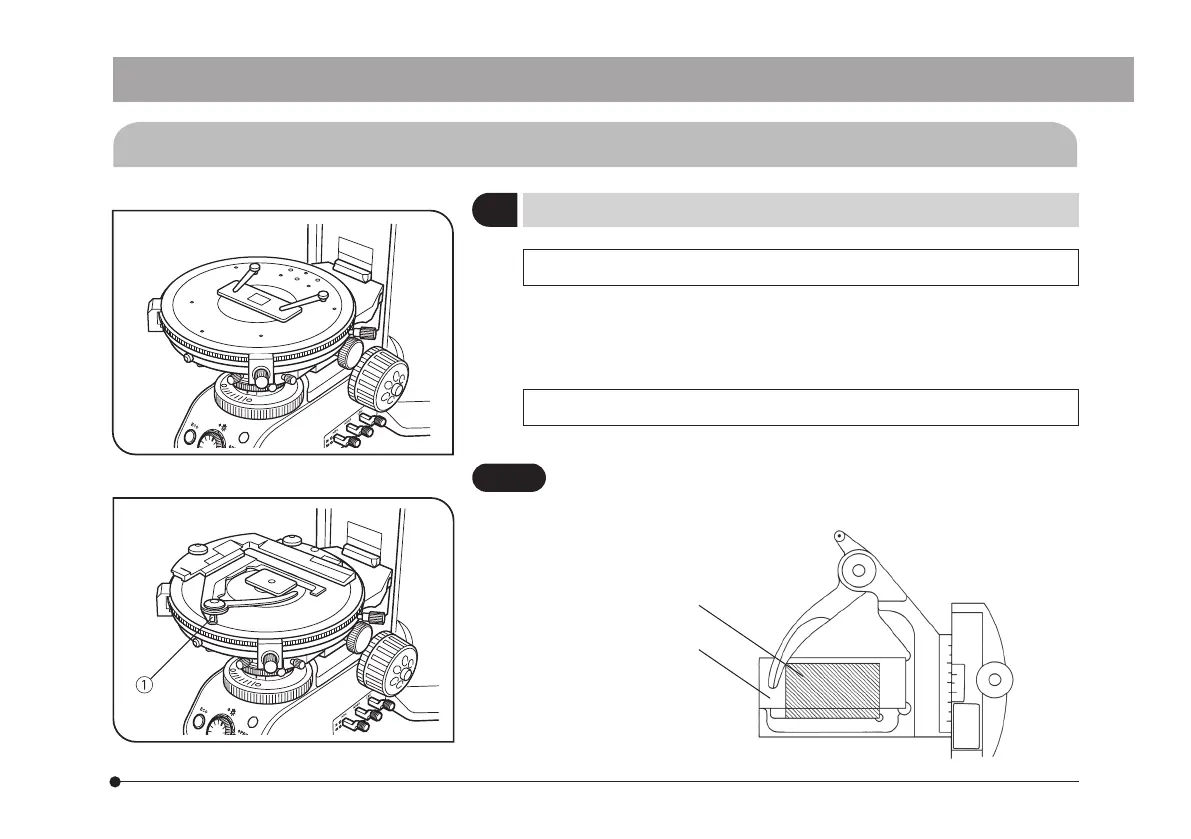

Specimen Placement
When Using the Stage Clips (Fig. 11)
Position the specimen in the center, and clamp the specimen with the
stage clips.
When Using the Mechanical Stage (U-FMP) (Fig. 12)
Open the spring-loaded finger @ and place the specimen on the stage.
Applicable slide glass is for inorganic substances (28 x 48 mm)
and organic substances (26 x 76 mm) with cover glass thickness
of 0.17 mm.
Inorganic specimen
Organic specimen
CAUTION
44 USING THE CONTROLS
4-1 Stage
Fig. 11
FIg. 12
