Olympus E-M5 Mark II User Manual

142 EN
Using separately sold accessories
9
3
Adjust the settings for each group in the LV super control panel.
250250 F5.6
P
3838
A Mode
TTL
M
Off
+5.0
TTL +3.0
1/8
–
LO
1
Ch
Flash intensity value
Group
• Select the fl ash control
mode and adjust the fl ash
intensity separately for
each group. For MANUAL,
select the fl ash intensity.
Normal fl ash/Super FP fl ash
• Switch between normal
fl ash and Super FP fl ash.
Communication light level
• Set the communication
light level to [HI], [MID],
or [LO].
Channel
• Set the communication
channel to the same
channel used on the fl ash.
Flash intensityFlash control
mode
Adjust settings for the camera
fl ash unit.
4
Attach the supplied fl ash unit and turn on the camera.
• After confi rming that the built-in and remote fl ash units have charged, take a test shot.

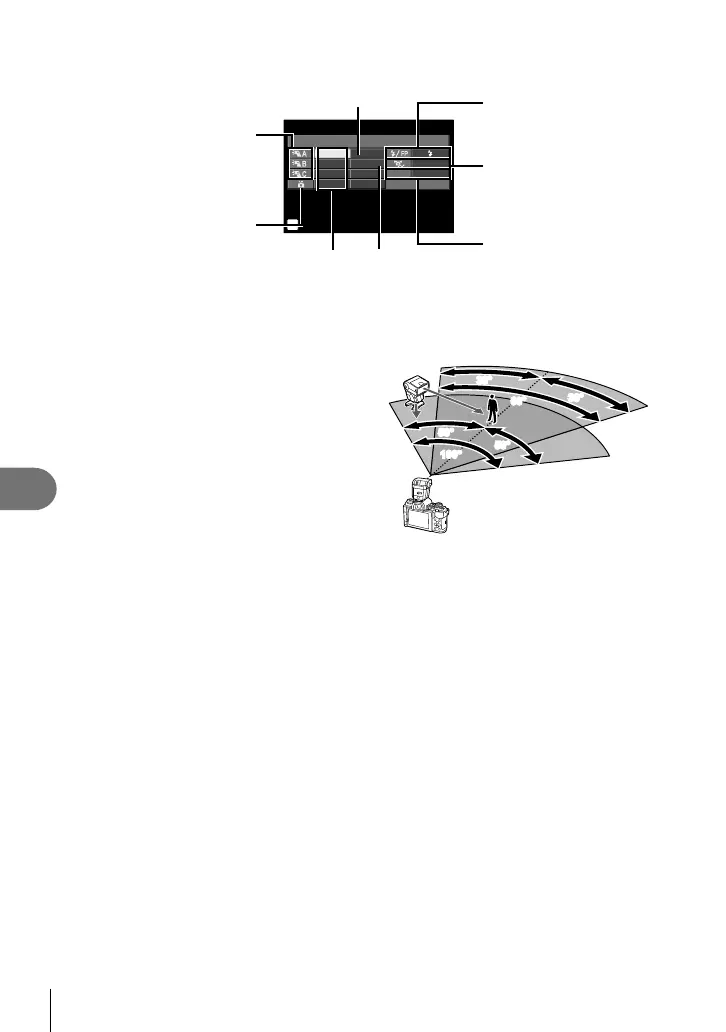

 Wireless fl ash control range
Position the wireless fl ash units with their
remote sensors facing the camera. The
following illustration shows the approximate
ranges at which the fl ash units can be
positioned. The actual control range varies
with local conditions.
7m
5m
100°100°
50°
50°
50°
50°
60°
60°
30°
30°
30°
30°
Cautions
• We recommend using a single group of up to three remote fl ash units.
• Remote fl ash units cannot be used for second curtain slow synchronization or anti-shock
exposures longer than 4 seconds.
• If the subject is too close to the camera, the control fl ashes emitted by the camera fl ash
may affect exposure (this effect can be reduced by reducing the output of the camera
fl ash by, for example, using a diffuser).
• The upper limit of fl ash synchronization timing is 1/160 sec. when using the fl ash in RC
mode.

Olympus E-M5 Mark II Specifications

General

Megapixel	16.1 MP
Camera type	MILC
Sensor type	Live MOS
Image stabilizer	Yes
Total megapixels	17.2 MP
Image sensor size	4/3 \
Image formats supported	JPG, MPO, RAW
Supported aspect ratios	1:1, 3:2, 3:4, 4:3, 16:9
Maximum image resolution	4608 x 3456 pixels
Image stabilizer location	Body
Still image resolution(s)	4608x3456, 3200x2400, 1280x960
Lens type	Standard
Filter size	62 mm
Optical zoom	- x
Focal length range	12 - 40 mm
Lens mount interface	Micro Four Thirds (MFT)
Minimum aperture number	-
Number of diaphragm blades	7
Lens structure (elements/groups)	14/9
Maximum focal length (35mm film equiv)	80 mm
Minimum focal length (35mm film equiv)	24 mm
Focus	TTL
Focus adjustment	Auto/Manual
Auto Focus (AF) points	800
Auto focusing (AF) modes	Continuous Auto Focus, Tracking Auto Focus
Closest focusing distance	0.2 m
Light metering	Centre-weighted, Spot
ISO sensitivity	100, 200, 1600, 25600
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	25600
ISO sensitivity (min)	200
Light exposure control	Program AE
Light exposure correction	±5EV (1/2; 1/3 EV step)
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	60 s
Flash modes	Auto, Fill-in, Flash off, Manual, Red-eye reduction, Slow synchronization
Flash sync-speed	0.000125 s
Shoe mounting point type	Hot shoe
Flash exposure correction	±3EV (1/2, 1/3, 1 EV step)
Built-in flash	No
Power source type	Battery
Video resolutions	640 x 480, 1280 x 720, 1920 x 1080 pixels
Motion JPEG frame rate	60 fps
Video formats supported	AVI, MOV
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Resolution at capture speed	1280x720@25fps, 1280x720@50fps, 1280x960@30fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps, 640x480@30fps
Memory slots	1
Internal memory	- MB
Compatible memory cards	SDHC, SDXC
Display diagonal	3 \
Display aspect ratio	3:2
Display resolution (numeric)	1037000 pixels
Magnification	2 x
Viewfinder type	Electronic
USB version	2.0
USB connector	Micro-USB B
HDMI connector type	Micro
Scene modes	Beach, Candlelight, Children, Documents, Fireworks, Night, Night portrait, Panorama, Portrait, Snow, Sports, Sunset, Landscape (scenery)
Image editing	Resizing, Rotating, Trimming
Photo effects	Black&White, Muted, Sepia, Vivid
White balance	Auto, Custom modes
Shooting modes	Aperture priority, Auto, Lens priority, Manual, Movie, Program, Scene, Shutter priority
Camera playback	Highlights, Movie, Single image, Slide show
Self-timer delay	2, 3, 5, 10, 12, 20, 30 s
Camera file system	DCF, DPOF, Exif, PRINT Image Matching III, RAW
Compatible products	FL-50R, FL-36R, FL-20, FL-14, FL-300R, FL-600R
Image quality adjustment	Saturation
On Screen Display (OSD) languages	BUL, CHI (SIMPL), CHI (TR), CRO, CZE, DEU, ENG, ESP, EST, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, LAV, LIT, NOR, RUM, RUS, SER, SLK, SLV, THA, TUR, UKR
Battery type	BLN-1
Product color	Silver
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 90 %
Cables included	AV, USB
F-number (relative aperture)	2.8

Weight and Dimensions

Depth	44.5 mm
Width	123.7 mm
Height	85 mm
Weight	417 g
Lens length	84 mm
Lens weight	382 g
Lens diameter	69.9 mm
Weight (including battery)	469 g
