Olympus OEP-3 - Page 141

4-33
OEP-3 V1 (UC)
6. Head position FG sensor
Route: SE-548 to SE-539 to PRT-13
TP: TP513/PRT-13 board
Function: Detects the number of rotations in a head motor.
Level: Rectangular wave output
7. Paper feed timing sensor
Route: SE-550 to SE-539 to PRT-13
TP: TP508/PRT-13 board
Function: Discriminates whether print paper was fed properly or whether print paper is not jammed at a
paper feed port in the standby state.
Level: H Print paper exists at a paper feed port.
L Print paper does not exist at a paper feed port.
8. Delivery timing sensor
Route: SE-551 to SE-539 to PRT-13
TP: TP509/PRT-13 board
Function: Discriminates the mechanical timing during delivery operation and whether print paper is not
jammed at a delivery port.
Level: H Print paper exists at a delivery port.
L Print paper does not exist at a delivery port.

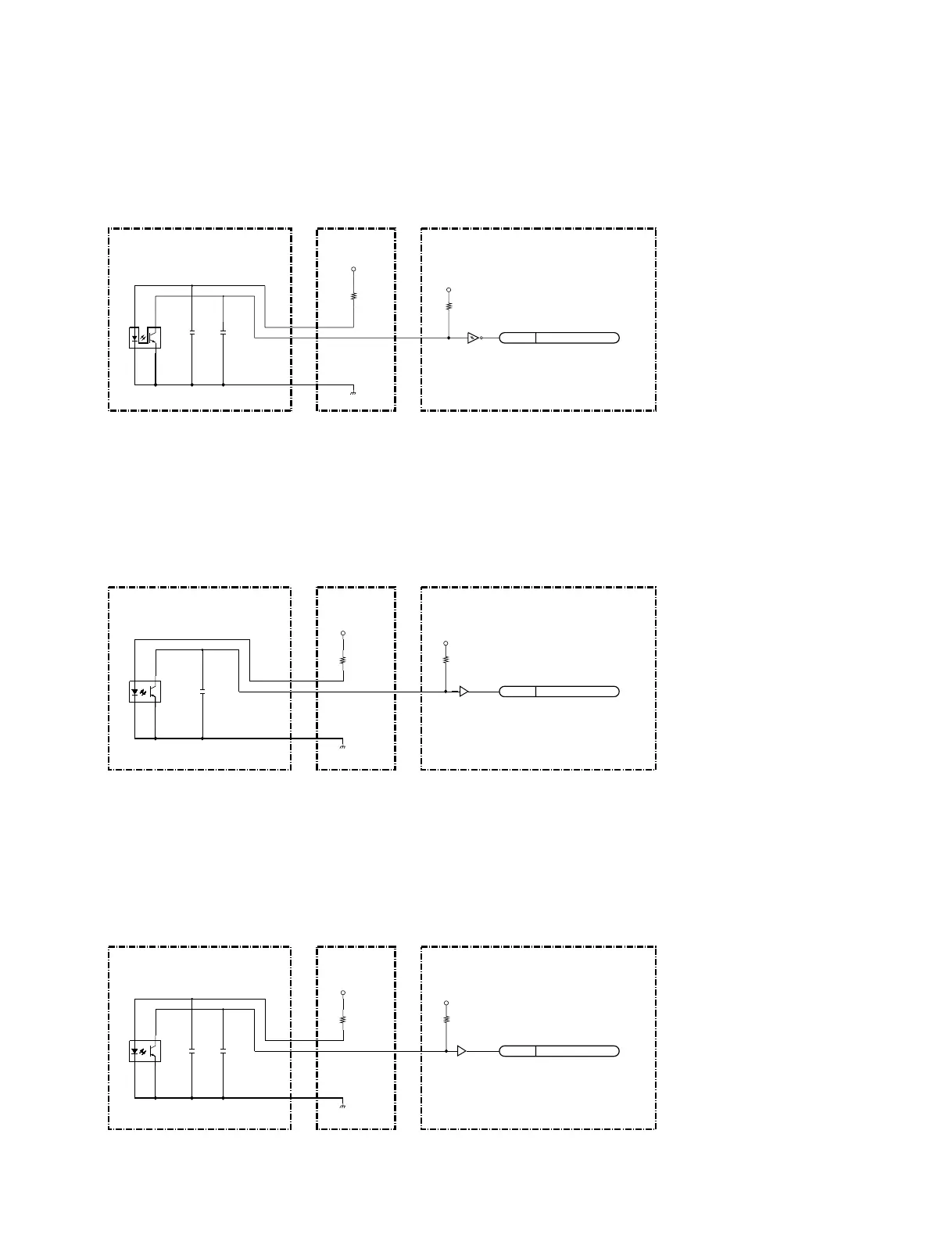

HED_POS_FG
