TC--C2 COMPACT TROLLEY
5
4.3 CRT monitor installation: Place a 14” CRT monitor onto the top shelf ensuring its feet are behind the stop strip and the
monitor is central. Unclip the monitor strap (supplied) and pass through the slots in the top shelf and around the monitor,
fasten the clip to secure ( Figure 4-2). Adjust the strap as required to remove any slack.
CAUTION
The TC--C2 has been designed for use with 14” CRT moni t ors or 15”/18”/19” LCD monitors when used with t he
MAJ--197 LCD monitor mount (see Section 8 for part number). Do not attem pt t o instal l any other type of moni tor .
NOTE
It is recommended that two people working together place the monitor on the top tray.

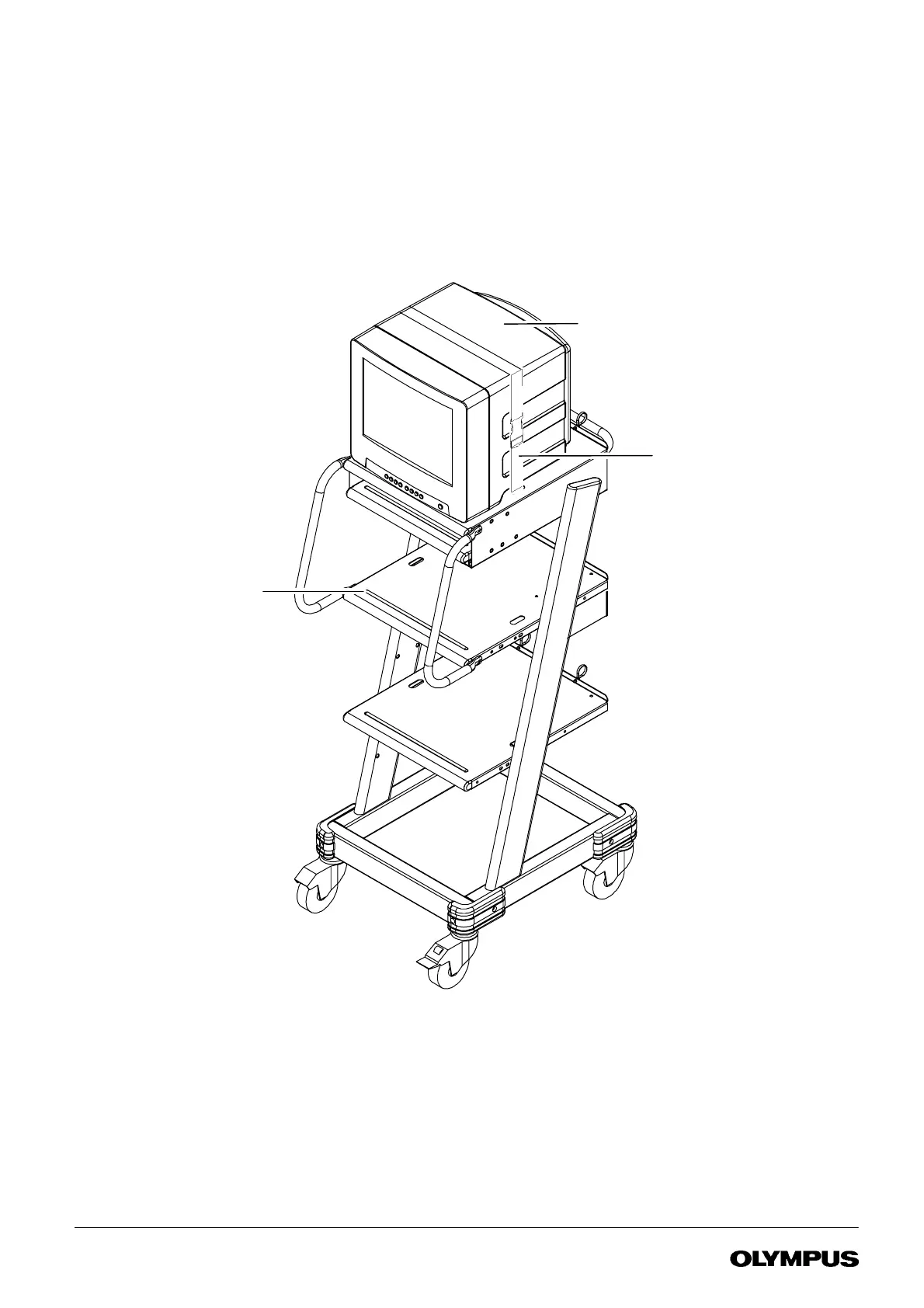

FIGURE 4-2
14” monitor
Webbing strap
Stop strips
(all shelves)
4.4 LCD monitor installation: Refer to the instructions supplied with the MAJ--197 LCD monitor mount kit.
