Olympus UES-40 - 5. Ports

UES-40
Product Specification 1-14 ISSUE4
(3) Foot switch port for MAJ-1258
This port is for connecting the standard accessory foot switch for UES-40.
(4) Foot switch port for MAJ-1259
This port is for connecting an optional bipolar foot switch for UES-40.
(5) Circuit breakers
These breakers are used in the event of mechanical problems to prevent electrical surges
within the UES-40.
(6) AC inlet
This inlet is for connecting the power cord.
(7) Potential-equalization terminal
This terminal is connected for potential equalization.

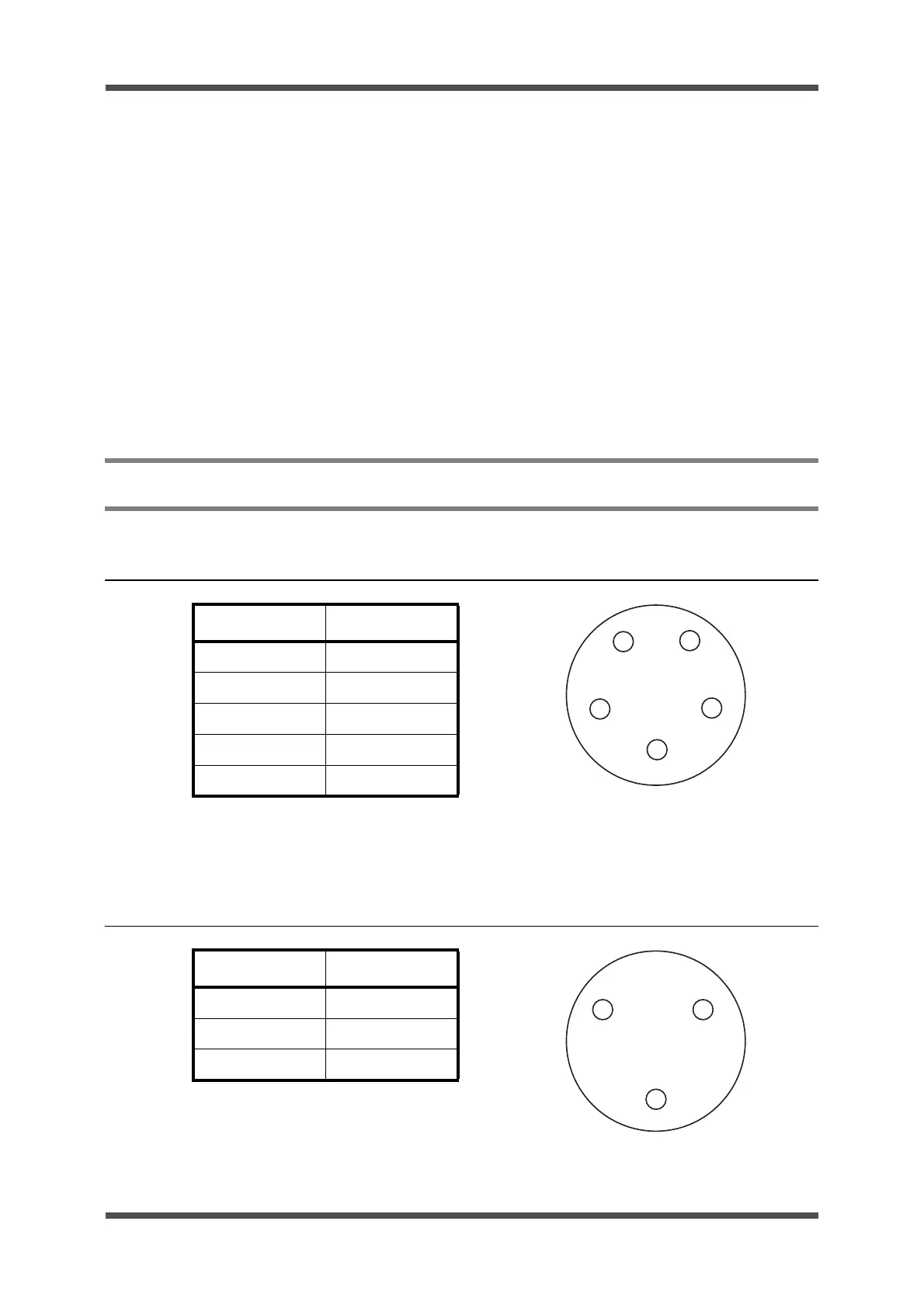

5. Ports
5-1 Foot switch port for MAJ-1258
5-2 Bipoler foot switch port for MAJ-1259
Pin No. Signal
AFS1CUT1
B TS1COAG1
CFS1PA1
DGND
EFS/MODE
Pin No. Signal
A FS3COAG1
BGND
CNC
A
B
C
D
E
As viewed from the connection side
A
C
B
As viewed from the connection side
