Olympus UES-40 - Page 57

UES-40
ISSUE4 5-3 Parts List

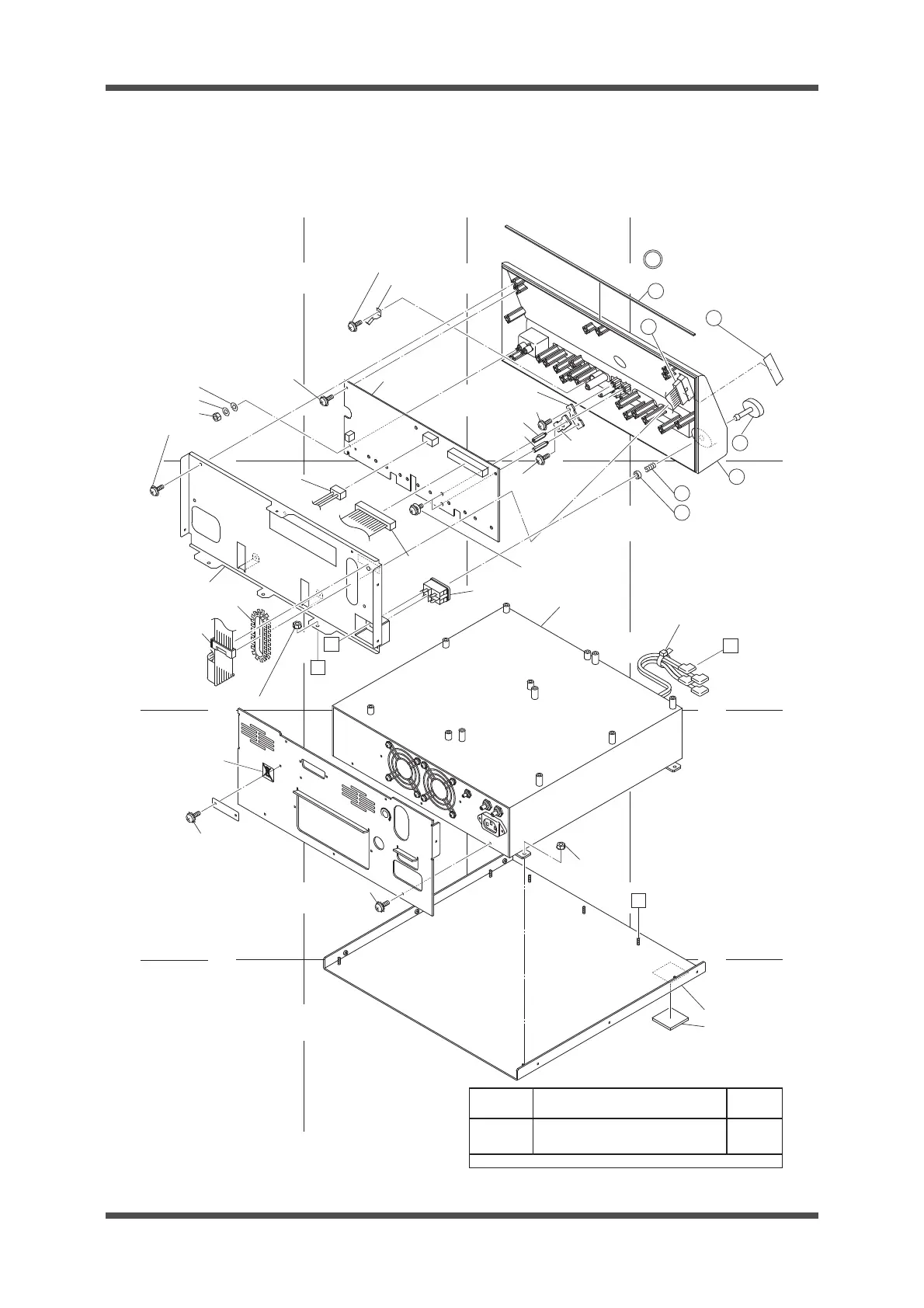

EXPLODED PARTS DIAGRAM
FIG.2/4
MODEL
UNIT
OLYMPUS MEDICAL SYSTEMS CORP.
UES-40
FRONT PANEL , CONVERTER
ABCD
1
2
3
4
FR.1590
(C) 2004 Olympus Medical Systems Corporation. All rights reserved.
1
CUKSK3x6SZ
GT012800
GC981200
A
B
A
B
1
1
GC688500
1
1
GC688300
1 GC688400
GT012500
GT086700
CUKSK3x6SZ
CUKSK3x6SZ
GC981400
GL354700
GC475800
DY266000
CUKSK3x6SZ
CUKSK3x6SZ
GL357200
GC981500
GL357300
GT013100
C6N3SZ
KNW2.5SA
SW2.5SA
NN2.5SA
HCBK3x6SA
HCBK3x6SA
GT017300
DO078500
GC981300
GC980900
C6N3SZ
GL465700(120V, 220V)1
GT064500
CUKSK3x6SZ
GT203000(220V)
GT086600
1
