FM TRANSMITTER
TR EM 1000 HE DIG PLUS COMPACT
Technical Manual 1v2 November 2019 45

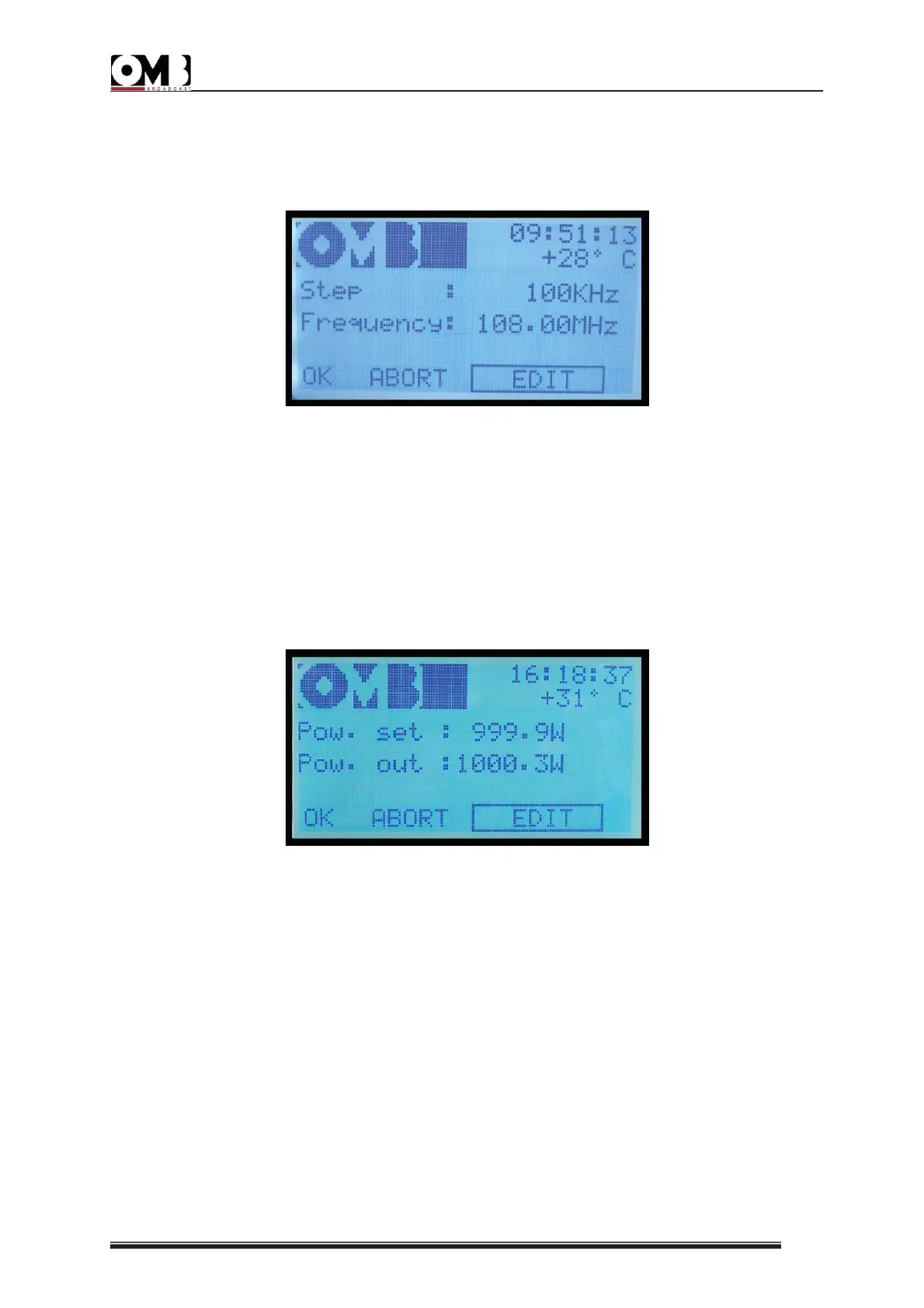

- FREQUENCY setting
It is used to define the transmitter’s operating frequency.
The following parameters can be set:
• Step – frequency increments can be selected (in the example, 100 KHz)
• Frequency – operating frequency
- POWER setting
It is used to adjust the transmitter’s output power.
The display shows the following:
• Pow. set – set power
• Pow. out – measurement of the power supplied
- MPX SENS setting
It is used to adjust modulation input sensitivity according to the low frequency level available.
