3.1 Internal Modules Location.

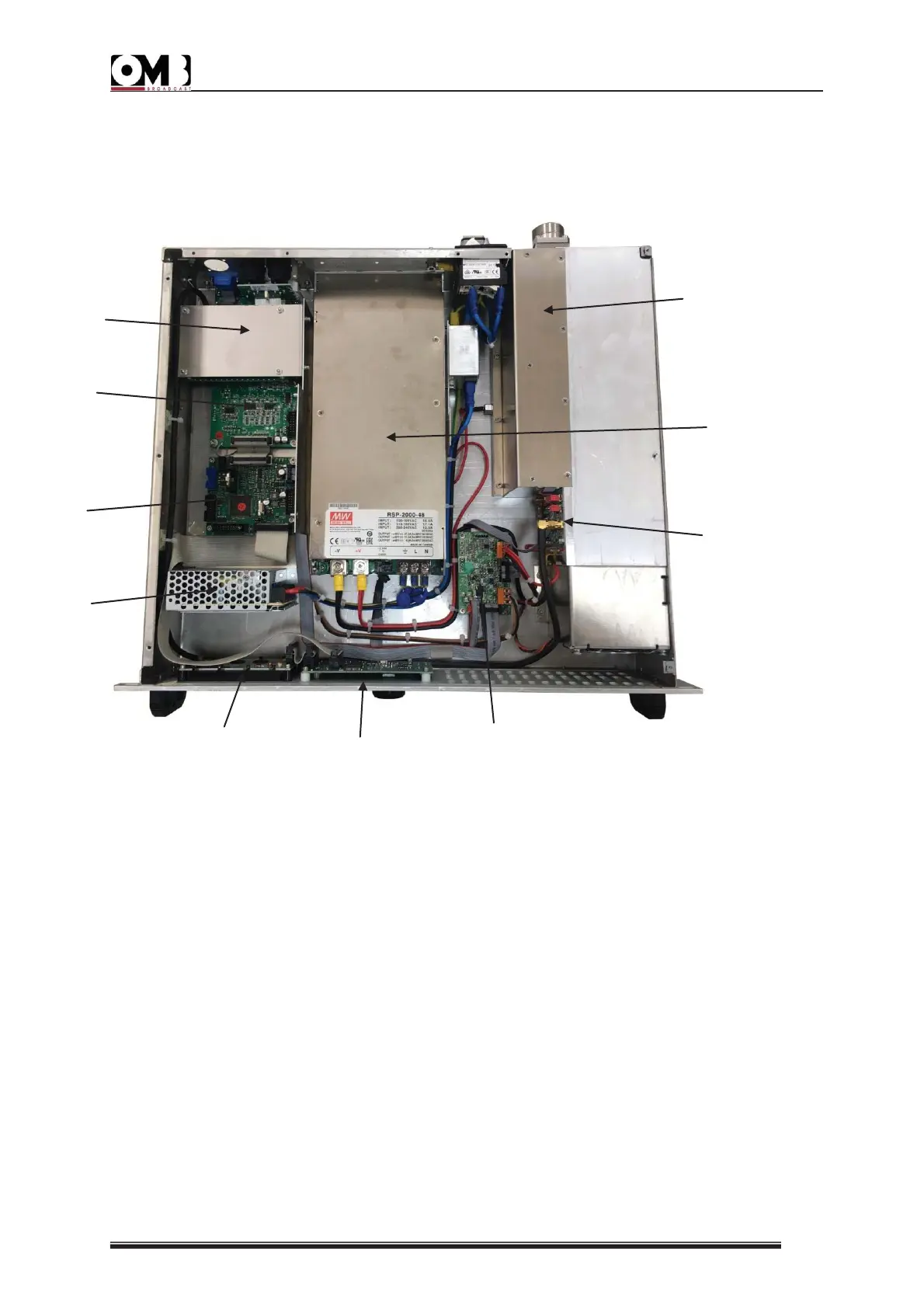

Next picture shows an internal view of the EM 1000 HE DIG PLUS COMPACT transmitter:
Figure 3.1: EM 1000 HE DIG PLUS COMPACT Internal View
The elements numbered in the previous picture are described next:
1. FM Synthesizer.
2. Main Board.
3. Control Unit Board.
4. Aux. Power Supply.
5. Display Board.
6. Knob Encoder Board.
7. COMPADA, Power supply control and fan speed regulator.
8. 10W Driver Module.
9. Main Powers Supply.
10. Power Amplifier Block.
11. Stereo Coder (Optional).
8
5 6 7
1
2
3
4
10
9
